Clipsal Iconic Skin Socket Switch Horizontal Single, 1ExBlank, 10A, 250V Clip-On

Vivid White | Clipsal Iconic Skin Socket Switch Horizontal Single, 1ExBlank, 10A, 250V Clip-On

Clipsal Iconic Skin Socket Switch Horizontal Single, 1ExBlank, 10A, 250V Clip-On

Item Number: 3015XC-VW

Build this product i

Retail
$9.93
RRP (Inc. GST)

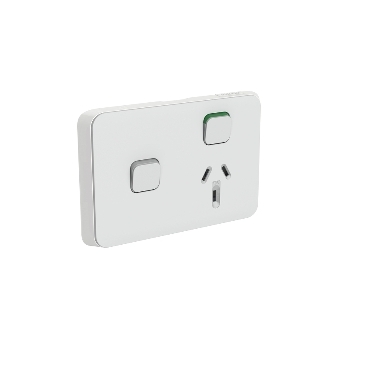

This Clipsal Iconic Single Power Point Skin is horizontally mounted, has an extra switch and is available in a standard white or subtle colour variants. It offers a choice of edges; solid vivid white or translucent edges that meld with its surroundings.

Product Dimensions

Width icon

Width78 mm

Height icon

Height120 mm

Depth icon

Depth12 mm

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal Iconic

Aesthetic name

Iconic

Product or component type

cover frame

Colour tint

vivid white (VW)

Product destination

switched socket

Surface treatment

untreated

Sustainable offer status

Green Premium product

Physical

Type of packing

polybag

Quantity per set

set of 20

Range compatibility

switched socket

Device mounting

flush

Number of rocker

2

Number of power socket outlets

1

[In] rated current

10 A

Installation direction

horizontal

Fixing mode

clip-on

Height

120 mm

Width

78 mm

Depth

12 mm

Net weight

0.02 kg

Ambient air temperature for operation

0-45 °C

Relative humidity

10-95 %

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure

ENVPEP120506EN

Material

Material

  • PC (polycarbonate): skin
  • ABS (acrylonitrile butadiene-styrene): skin
    • Others

      Number of Units in Package 1

      1

      Number of Units in Package 2

      20

      Number of Units in Package 3

      100

      Package 1 Height

      12 mm

      Package 1 Length

      120 mm

      Package 1 width

      78 mm

      Package 2 Height

      328 mm

      Package 2 Length

      146 mm

      Package 2 width

      106 mm

      Package 3 Height

      335 mm

      Package 3 Length

      335 mm

      Package 3 width

      261 mm

      Unit Type of Package 1

      PCE

      Unit Type of Package 2

      BB1

      Unit Type of Package 3

      CAR

      Package 1 Weight

      21.14 g

      Package 2 Weight

      587.4 g

      Package 3 Weight

      3322.2 g
      Show all specifications

      Frequently Asked Questions

      hide show

      Can part number 2015X accommodate TV mech?

      A TV mech CAN NOT be put into 2015X. Must have at least 150mm of separation.


      Is mech removable in part number 2015X?

      Yes, the mech in part number 2015X is removable.

      For more information on this part please refer to https://www.clipsal.com/Trade/Products/ProductDetail?catno=2015X


      User-added image

      What are the mounting centers for the 3015/4 quad outlet?

      ​The mounting centers for the 3015/4 quad outlet is 179.8mm.

      What is the PDL version of the 2015XX?

      The PDL version of the 2015XX is a PDL694XXWH.



      What is the mounting bracket to suit part number 3015/4?

      The part number is 3155H4 at this stage anticipated release is December 2016.

      What is part number for Iconic cover to suit 3015/4?

      The part number for Iconic cover to suit is 3015/4C.
