10A Single Comb Pow

Back to Accessory Home Sundry Items - Standard Range Accessory

White Electric | 10A Single Comb Pow

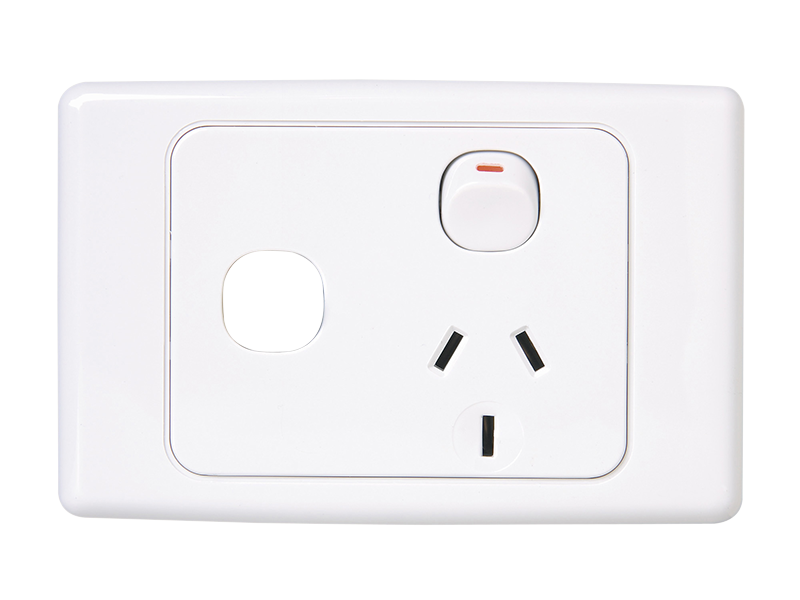

10A Single Comb Pow

Item Number: 2015XPAPID-WE

Retail
$157.18
RRP (Inc. GST)
Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Sustainable offer status

Green Premium product

Product brand

Clipsal

Range of product

Series 2000

Surface finish

glossy

Physical

Circularity Profile

ENVEOLI110713EN

Environmental Disclosure

ENVPEP111024EN

Mercury free

Yes

REACh free of SVHC

Yes

REACh Regulation

Free of Substances of Very High Concern above the threshold

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

EU RoHS Directive

Compliant

RoHS exemption information

Yes

Toxic heavy metal free

Yes

Control type

ON/OFF button

Number of gangs

1 gang

Pin number

3

Number of power socket outlets

1

Actuator

  • switch
  • rocker

      • Mounting position

      horizontal

      Fixing mode

      by screws

      Local signalling

      without light indicator

      [Ue] rated operational voltage

      250 V AC

      [In] rated current

      10 A

      Depth

      28 mm

      Length

      116 mm

      Width

      76 mm

      Fixing center

      84 mm

      Standards

    • AS/NZS 3100
    • AS/NZS 3112
    • AS/NZS 3133:approval number S/1

        • Material

        Material

        plastic

        Others

        Number of Units in Package 1

        1

        Number of Units in Package 2

        10

        Number of Units in Package 3

        100

        Package 1 Height

        28 mm

        Package 1 Length

        116 mm

        Package 1 Weight

        0.112 kg

        Package 1 width

        76 mm

        Package 2 Height

        122 mm

        Package 2 Length

        161 mm

        Package 2 Weight

        5 kg

        Package 2 width

        141 mm

        Package 3 Height

        254 mm

        Package 3 Length

        445 mm

        Package 3 Weight

        50 kg

        Package 3 width

        348 mm

        Unit Type of Package 1

        PCE

        Unit Type of Package 2

        BB1

        Unit Type of Package 3

        CAR
        Show all specifications

        Documents & downloads

        hide show
        Filter items

        • All

        • Product Brochures

        • CAD Files and Packs

        • Technical Data Catalogues

        • Specifications

        • Certificates (MSDS)

        2000 Series - Functionality, Flexibility and Fashion

        2000 Series - Functionality, Flexibility and Fashion

        1.5 MB PDF

        250V 20A / 16AX, Universal Switch Mechanism, 23211

        250V 20A / 16AX, Universal Switch Mechanism, 23211

        1.1 MB PDF

        30USBCM -30 Series USB Charger Mech. Australia’s most universal USB mech, 998-19700460_AU

        30USBCM -30 Series USB Charger Mech. Australia’s most universal USB mech, 998-19700460_AU

        1007.5 KB PDF

        A Great Gang of Surrounds

        A Great Gang of Surrounds

        672.6 KB PDF

        Choosing the correct surge protection equipment. An easy to use guide for contractors

        Choosing the correct surge protection equipment. An easy to use guide for contractors

        513 KB PDF

        Classic Convertibles, for an instant colour change, 23070

        Classic Convertibles, for an instant colour change, 23070

        1.1 MB PDF

        Clipsal Lifesavers in Electrical Protection - 22498

        Clipsal Lifesavers in Electrical Protection - 22498

        1.4 MB PDF

        Clipsal’s Circuit Identity Solution - window ID labelling system - 14894

        Clipsal’s Circuit Identity Solution - window ID labelling system - 14894

        184.4 KB PDF

        Cooker switches that rock! 32/45A current carrying capacity, 116469

        Cooker switches that rock! 32/45A current carrying capacity, 116469

        838.3 KB PDF

        Energy Efficiency Trade Product Guide, 20742

        Energy Efficiency Trade Product Guide, 20742

        1.7 MB PDF

        Fire Rated Wall Boxes, Now acoustically rated and designed for easy fixing

        Fire Rated Wall Boxes, Now acoustically rated and designed for easy fixing

        212.4 KB PDF

        Gangbusters™, More space for big plugs

        Gangbusters™, More space for big plugs

        354.2 KB PDF

        IP66 Rated Switches 2000 Series and new C2000 Classic switches, Splash out on these

        IP66 Rated Switches 2000 Series and new C2000 Classic switches, Splash out on these

        580.7 KB PDF

        Power Solutions to get away - 12926

        Power Solutions to get away - 12926

        726.5 KB PDF

        Powertainment, Why settle for a mess when you can have … clutter free entertainment

        Powertainment, Why settle for a mess when you can have … clutter free entertainment

        1 MB PDF

        Prestige & Matisse, making life easier - 863785

        Prestige & Matisse, making life easier - 863785

        1.3 MB PDF

        Residential Energy Efficiency Guide, 20097

        Residential Energy Efficiency Guide, 20097

        5.8 MB PDF

        Stop your cooking equipment being beaten, battered and poached

        Stop your cooking equipment being beaten, battered and poached

        2 MB PDF

        Surge Protection Product Guide

        Surge Protection Product Guide

        100.6 KB PDF

        The new range of push-button timer switches

        The new range of push-button timer switches

        203.3 KB PDF

        There's a new lifesaver on patrol

        There's a new lifesaver on patrol

        1.6 MB PDF

        Revit Pack 2000 Series

        Revit Pack 2000 Series

        8.3 MB ZIP

        Revit Pack Standard Range

        Revit Pack Standard Range

        1.7 MB ZIP

        2000 Series Technical Data, versatility and reliability, 15219

        2000 Series Technical Data, versatility and reliability, 15219

        3.5 MB PDF

        Technical Specifications - Socket Outlets - 2000 Series

        Technical Specifications - Socket Outlets - 2000 Series

        194.4 KB PDF

        Certificate of Approval (Conformity)

        Certificate of Approval (Conformity)

        1 MB PDF

        Frequently Asked Questions

        hide show

        Can i get a 2015 with an ID label in red?

        To create this part you will need a 2015XUA-RD and a 30PID-RD. Please note you will need to assemble this unit yourself.
        Some of the key features are:
        • Removable extra switch with aperture
        • 2000 Sereis
        • 10A
        • 250V
        • Single Outlet
        • Various colours available
        For further information please visit www.clipsal.com/Trade/Products/ProductDetail?catno=2015XUA
