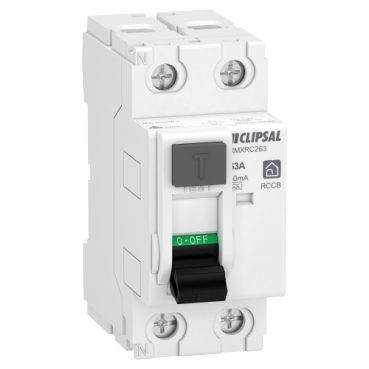

Clipsal Resi MAX A type Residual Current Circuit Breaker 2P 63A 30mA

Item Number: RMXRC263

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width36 mm

Height81 mm

Embedding depth44 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554815943	-

Specifications

Design

Range	Resi MAX
Product or component type	residual current circuit breaker (RCCB)
Product brand	Clipsal
Device application	protection

Physical

[in] rated current	63 A
[ue] rated operational voltage	240 V
Height	81 mm
Width	36 mm
Depth	73 mm
Net weight	197 g
Embedding depth	44 mm
Mechanical durability	10000 cycles
Electrical durability	4000 cycles
Connections - terminals	tunnel type terminals - 1...25 mm² - flexible tunnel type terminals - 1...35 mm² - rigid
Wire stripping length	14 mm
Standards	AS/NZS 61008

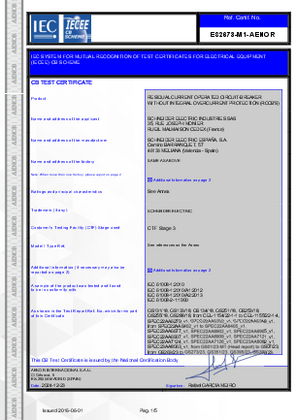

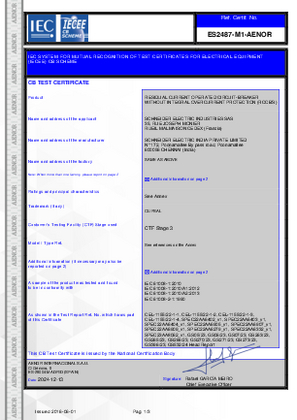

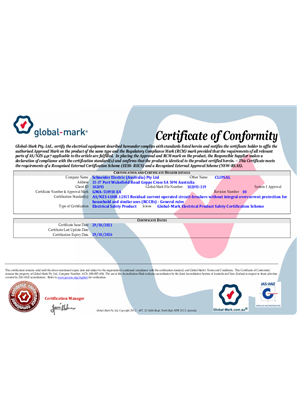

Product certifications	RCM CB
Ip degree of protection	IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
Ambient air temperature for operation	-25...40 °C
Ambient air temperature for storage	-40...85 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2206035EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Weee label	N/A
Weee applicability	Finished product
Legacy weee scope	In
	Outside of Europe
Warranty duration(in months) bmecat	18
Poles description	2P
Number of modules	2
Network type	AC
Earth-leakage sensitivity	30 mA
Earth-leakage protection class	type A
Rated conditional short-circuit current	6 kA
Network frequency	50 Hz
[ui] rated insulation voltage	500 V
[uimp] rated impulse withstand voltage	4 kV
Surge current	250 A
Size	81 x 36 x 75 mm conforming to DIN 43880
Connection pitch	18 mm
9 mm pitches	4
Tightening torque	3.5...3.5 N.m
Pollution degree	2
Overvoltage category	III
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8 cm
Package 1 width	4 cm
Package 1 length	9 cm
Package 1 weight	225 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	61 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.17202437377642
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0298199986642707
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.013358243092696
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	58.165
Carbon footprint of the use phase [b2, b3, b4, b6]	58 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.556471298041059
Carbon footprint of the end-of-life phase [c1 to c4]	0.6 kg CO2 eq.
Silicone-free	No
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	60.9366739135744
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	2c7837a4-39fc-4abc-96ed-2ef14f8f87c7
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
