PowerTag, Energy sensor, PowerTag Monoconnect 63A 3P+N top position

PowerTag, Energy sensor, PowerTag Monoconnect 63A 3P+N top position

Item Number: A9MEM1541


Product Dimensions

Width icon

Width72 mm

Height icon

Height16.5 mm

Depth icon

Depth43 mm


Qty UoM EAN Colour





Product or component type

energy sensor

Market segment

buildings: breaker voltage monitoring|buildings: cost allocation|buildings: overload alarm

Product destination


Sustainable offer status

Green Premium product


Range compatibility


Mounting support

on circuit breaker

Mounting mode

by screws (terminals)

[ue] rated operational voltage

220...240 V AC, +/- 20 %, between phase and neutral|380...415 V AC, +/- 20 %, between phases


IEC 61557-12|IEC 61010-1|IEC 61010-2-030|IEC 61326-1|ETSI EN 300 328|ETSI EN 301 487-1


16.5 mm


72 mm


43 mm

Net weight

35 g

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-40...85 °C

Ip degree of protection

IP20 conforming to IEC 60529

Ik degree of protection


Relative humidity

0...95 % at 45 °C conforming to IEC 60721...3-3

Environmental characteristic

dustproof class 3S3 conforming to IEC 60721-3-3|salt mist class 3C2 conforming to IEC 60721-3-3|indoor use

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free


China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information


Environmental disclosure


Circularity profile


California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov


Certification number

DC-E-S26-061.6 - IRAM

Package 1 bare product quantity


Package 2 bare product quantity


Product name

PowerTag A9 M63

Poles description

3P + N

Max current

63 A

[ib] basic current

10 A

Starting current

40 mA

Saturation current

130 A

Product specific application

cost allocation|load monitoring|circuit monitoring|overload alarm|energy management

Concentrator compatibility

Acti9 Smartlink SI B|Acti9 Smartlink SI D|Acti9 PowerTag Link C|Acti9 PowerTag Link|Acti9 PowerTag Link HD|Wiser IP module|EcoStruxure Panel Server Universal|EcoStruxure Panel Server Advanced|PrismaSet Active

Type of measurement

voltage|active energy|current|active power|power factor

Accuracy class

class 1 current conforming to IEC 61557-12|class 0.5 voltage conforming to IEC 61557-12|class 1 active power conforming to IEC 61557-12|class 1 active energy conforming to IEC 61557-12|class 1 power factor conforming to IEC 61557-12

Mounting location


Event management

voltage loss with measured current at voltage loss

Transmission support medium

radio frequency 2.4-2.4835 GHz conforming to IEEE 802.15.4

Emission power

10 mW

Form factor


Electrical connection

connector tooth

Cable cross section

1 rigid cable 1.5...16 mm²|2 stranded cable 1.5...2.5 mm²|2 rigid cable 1.5...2.5 mm²|1 stranded cable 1.5...16 mm²

Network frequency

50 Hz|60 Hz

Power consumption in va

2 VA

Compatibility code

PowerTag A9 M63

Quality labels



2014/53/EU - radio equipment directive

Operating altitude

0...2000 m

Overvoltage category

III conforming to IEC 61010-1

Measurement category

category III conforming to IEC 61010-2-030

Pollution degree


Vibration resistance

3M4 conforming to IEC 60721-3-3

Electromagnetic compatibility

industrial electromagnetic environment conforming to IEC 61326-1|radiated EMC conforming to ETSI EN 301 489-17|electromagnetic emission conforming to IEC 62311

Unit type of package 1


Number of units in package 1


Package 1 height

5.000 cm

Package 1 width

6.000 cm

Package 1 length

8.500 cm

Package 1 weight

62.000 g

Unit type of package 2


Number of units in package 2


Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

3.312 kg


The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • CAD Files and Packs

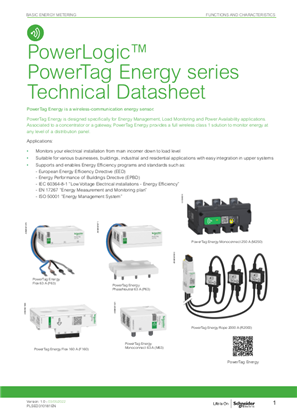

  • Technical Data Catalogues

  • Other technical guide

  • End of Life Manual

  • Environmental Disclosure

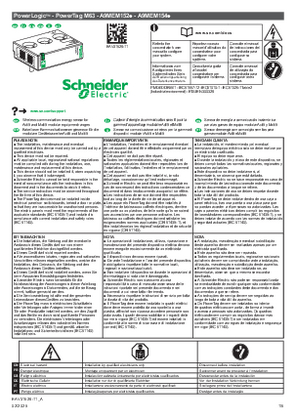

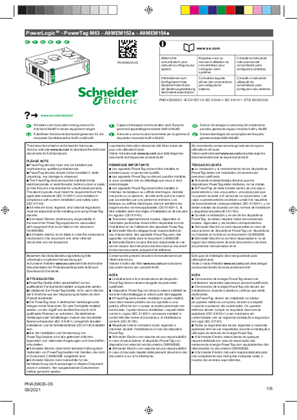

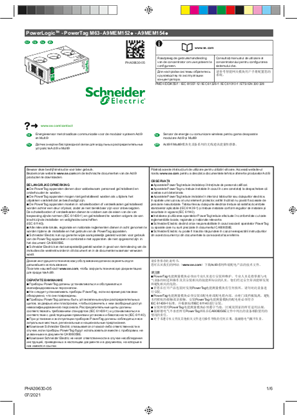

  • Installation Instruction

  • Operating Manuals

  • Technical illustration

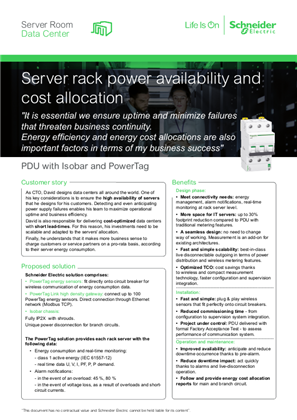

  • Application Notes

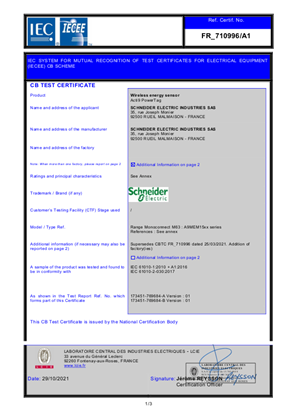

  • Declaration of Conformity

  • Certificates (MSDS)

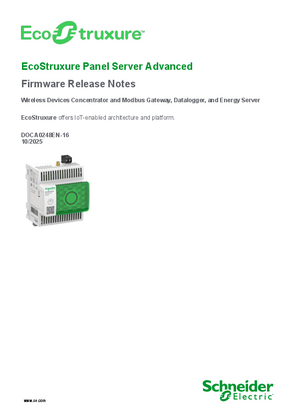

  • Firmware
