MAX9 Switchboard Metal Back Plate Type 2, 4 Row

Item Number: E2415FBP

1 PCE 0

Product Selector ➚

MAX9 Switchboard metal back plate is a type 2, 4 row. back plate material is CRCA with GI coating and metallic color

Where To Buy

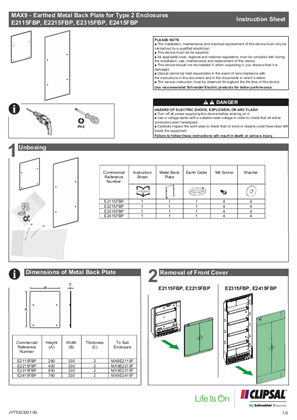

Datasheet

Download

Product Dimensions

Width284 mm

Height740 mm

Depth1.6 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554815882	-

Specifications

Design

Range	MAX9
Product or component type	back plate

Physical

Height	740 mm
Width	284 mm
Provided equipment	(1 ) plate (4 ) screws earthing wire
Depth	1.6 mm
Standards	AS/NZS 3000
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2505036EN
Eu rohs directive	Compliant

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Number of horizontal rows	4
Enclosure material	galvanized steel
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.3 cm
Package 1 width	28.4 cm
Package 1 length	74.0 cm
Package 1 weight	2.845 kg
Total lifecycle carbon footprint	0 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.0136380615838189
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0003639302382772
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.0059430389503651
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.0199450307724613
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	84
