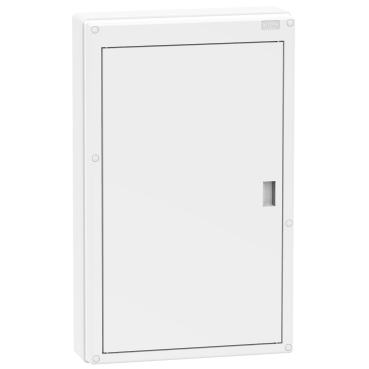

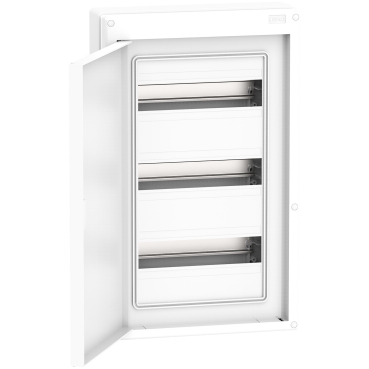

MAX9 Switchboard Enclosure Type 1, 3 Row, 36 Ways, Surface Mounted
Item Number: MX9E1312S
Specifications
Design
| Range | MAX9 |
|---|---|
| Product brand | Clipsal |
| Product or component type | enclosure |
| Device application | distribution |
| Colour | white electric (RAL 9003) |
| Market segment | residential |
| Warranty | 7-year |
Physical
| Provided equipment |
|
|---|---|
| [ue] rated operational voltage | 240/415 V AC |
| [in] rated current | 100 A |
| Cable entry | knock-out cable entries |
| Width | 345 mm |
| Height | 560 mm |
| Depth | 106 mm |
| Standards |
|
| Ip degree of protection | IP30 |
| Ik degree of protection | IK05 |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2206023EN |
| Eu rohs directive | Compliant By Exemption |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documents & downloads
Filter items
-
All
-
CAD Files and Packs
-
Environmental Disclosure
-

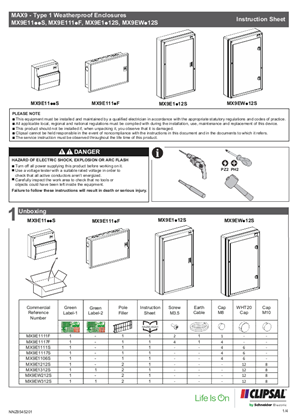

Installation Instruction
-
