MAX9 Pin Type Comb Busbar 3P, 100 A, 57 Modules

Item Number: MX9B357P

1 PCE 0

Product Selector ➚

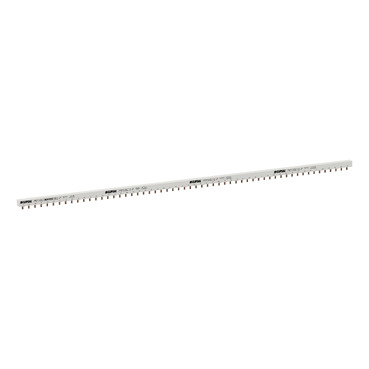

MAX9 product is a Pin comb busbar. The rated current is 100A. It is 3P and 57 modules. Comb busbar mounting mode is horizontal and cuttable. The provided equipements are end-pieces and tooth covers. It is dedicated to residential market. The Ue rated operational voltage is 230VAC or 415VAC. The Ui rated insulation voltage is 500V. The dimensions are (W) 1010mm x (H) 35mm x (D) 10mm.colour is white electric (RAL9003). The comb busbar colour is white electric (RAL9003)

Where To Buy

Datasheet

Download

Product Dimensions

Width1010 mm

Height35 mm

Depth10 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554814830	-

Specifications

Design

Product brand	Clipsal
Range	MAX9
Product or component type	comb busbar
Market segment	residential
Warranty	7-year

Physical

Device presentation	cuttable
Provided equipment	10 end-pieces tooth covers
[ie] rated operational current	100 A
[ue] rated operational voltage	400 V AC
Mounting mode	horizontal
Height	35 mm
Width	1010 mm
Depth	10 mm
Standards	AS/NZS 61439-3 AS/NZS 3000
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2206007EN
Eu rohs directive	Compliant

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Warranty duration(in months) bmecat	84
Total number of 18 mm modules	19
Number of ways	19 ways 3 L
Poles configuration for 1 way	19 x 3P
Connection pitch	18 mm
Insulation	insulated
[ui] rated insulation voltage	500 V
[uimp] rated impulse withstand voltage	6 kV
Mounting location	top
Fire resistance	960 °C
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.5 cm
Package 1 width	3.3 cm
Package 1 length	101.0 cm
Package 1 weight	662.0 g
Unit type of package 2	CAR
Number of units in package 2	10
Package 2 height	9.5 cm
Package 2 width	10.5 cm
Package 2 length	103.0 cm
Package 2 weight	7.22 kg
Total lifecycle carbon footprint	34 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.9635981634930553
Carbon footprint of the manufacturing phase [a1 to a3]	3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.1918137654119939
Carbon footprint of the distribution phase [a4]	0.2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.3445415852337681
Carbon footprint of the installation phase [a5]	0.3 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	29.086132984252416
Carbon footprint of the use phase [b2, b3, b4, b6]	29 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	1.1832212265201425
Carbon footprint of the end-of-life phase [c1 to c4]	1 kg CO2 eq.
Pvc free	No
Silicone-free	No
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	33.76930772491137
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	41a8b1b0-6424-4682-ac9c-98796ac87431
Pvc free	No
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	84
