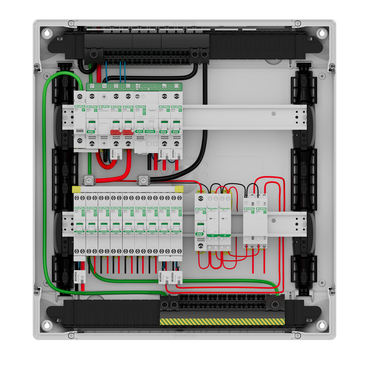

MAX9 New Energy Protection Kits with MAXBAR+ 1P+N, 2 x 63A MCB, 40A RCBO, 2 x 32A MCB, NTB and Accessories
Item Number: MX9K108PP
Datasheet
Specifications
Design
Range
Product or component type
Physical
Provided equipment
- miniature circuit breaker (MCB) (2 ) 1P 63 A 240 V AC 6000 A Interrupt Rating, kit
- RCBO (1 ) 1P + N 40 A 240 V AC 6000 A Interrupt Rating, kit
- miniature circuit breaker (MCB) (2 ) 1P 32 A 240 V AC 6000 A Interrupt Rating, kit
- terminal block (1 ) 1P 100 A 240 V ACkit
- comb busbar (1 ) 1P + N 100 A 240 V ACkit
- tooth cover (2 )
- label (1 )
- instruction sheet (1 )
Rohs exemption information
Environmental disclosure
Eu rohs directive
Reach regulation
China rohs regulation
Others
Legacy weee scope
Package 1 bare product quantity
Package 2 bare product quantity
Average percentage of recycled plastic content
Weee label
Weee applicability
Poles description
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Green premium status for reporting
Total lifecycle carbon footprint
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the installation phase [a5]
Carbon footprint of the installation phase [a5]
Carbon footprint of the use phase [b2, b3, b4, b6]
Carbon footprint of the use phase [b2, b3, b4, b6]
Sustainable packaging
Carbon footprint of the end-of-life phase [c1 to c4]
Carbon footprint of the end-of-life phase [c1 to c4]
Pvc free
Halogen-free status
Silicone-free
Take-back
Product contributes to saved and avoided emissions
Removable battery
Total lifecycle carbon footprint
Average percentage of recycled metal content
Packaging made with recycled cardboard
Packaging without single use plastic
Halogen-free status
Pvc free
Silicone-free
End of life manual availability
Take-back
Warranty (in months)
Documents & downloads
hide show-
All
-
Product Brochures
-
CAD Files and Packs
-
Technical Data Catalogues
-
Environmental Disclosure
-
Installation Instruction
-
Declaration of Conformity
-
Declaration of Conformity (Sustainability)
Frequently Asked Questions
How do I connect a hybrid inverter to MAXBAR+?
Hide ShowWhere there is a hybrid inverter with DC coupled battery, connect AC circuit to solar position on the MAXBAR+.
In this instance, the battery position on MAXBAR+ can be used for the second solar system or sub board.
Please ensure to affix the appropriate sticker, provided in the New Energy Protection Kit, to MAXBAR+ and the enclosure.
Can the battery & solar MCB's from the New Energy Protection kits be replaced for different current ratings?
Hide ShowYes, solar & battery MCB's can be replaced for higher or lower current ratings as long the combined potential current from solar and battery does not exceed 100A.
What are the most suitable enclosures for MAXBAR+?
Hide ShowThe most suitable enclosure for MAXBAR+ busbars are Clipsal MAX9 Type 3 plastic enclosures due to 150mm spacing between din rails.
For comprehensive list of suitable Clipsal enclosures, refer to MAXBAR+ Complementary Technical Guide.
What makes MAXBAR+ different to other busbars?
Hide ShowMAXBAR+ is specifically designed to help protect switchboards against overloading from multiple energy sources including grid, solar, battery & in the future EV to grid.
MAXBAR+ groups all energy sources on to one busbar then distributes outgoing energy via the dedicated home circuit.
MAXBAR+ comes with predefined positions for circuit protection devices to ensure that current flowing on the busbar does not accumulate from multiple energy sources & therefore protect against overloading.
Can the EV charging RCBO be replaced with a different current rating?
Hide ShowYes, the EV charging RCBO can be replaced with lower current rating if required.
Clipsal recommends 40A circuits with appropriately sized cable to avoid any potential nuisance tripping.
Can circuit protection devices in New Energy Protection Kits be repositioned on MAXBAR+?
Hide ShowMAXBAR+ comes with predefined positions for circuit protection devices to ensure that current flowing on the busbar does not accumulate from multiple energy sources & therefore protect against overloading, aided by pictograms
MAXBAR+ is intended to future-proof switch boards for new energy sources like solar, battery & EV to grid.
Is MAXBAR+ cuttable?
Hide ShowNo, MAXBAR+ is specifically designed not to be cut.
MAXBAR+ is intended to future-proof switch boards for new energy sources like solar, battery & EV to grid.
Where space in existing switch boards is limited, Clipsal recommends the use of an appropriate sub board.
Can you bottom feed MAXBAR+?
Hide ShowNo, MAXBAR+ is designed to be fitted to top side of Clipsal MAX9 circuit protection devices.
How do I connect two solar invertors to MAXBAR+?
Hide ShowWhere there are two solar inverters, connect the second inverter to the battery position on the MAXBAR+.
Please ensure to affix spare solar sticker, provided in the New Energy Protection Kit, to MAXBAR+ and the enclosure.
Is Clipsal MAXBAR+ compatible with all battery backup systems?
Hide ShowIssue:
I am adding MAXBAR+ to a house with existing battery backup system
Resolution:
MAXBAR+ is compatible with most battery systems currently on the market, however some systems use a separate backup interface/gateway which may have built in metering.
Using MAXBAR+ in these instances could cause issues with the battery systems app as the metering could be bypassed.
Is it possible to connect a second sub board to MAXBAR+?
Hide ShowIssue:
I am adding MAXBAR+ to a house with 2 sub boards
Resolution:
Where there is just one inverter, then a second sub board can be connected to battery position on MAXBAR+.
Please ensure to affix spare sub board sticker to MAXBAR+ & enclosure provided in New Energy Protection Kit.
Are the teeth covers the same for MAXBAR & ResiMAX busbar?
Hide ShowIssue:
Instead of throwing out teeth covers, can they be reused on other busbars
Resolution:
Yes, they are the same MAXBAR & ResiMAX busbars - RMXPT120 (set of 20).
