MAX9 Miniature Circuit-Breaker (MCB) 1P, 40A, C Curve, 6000A, 240/415V, Distribution

Home ProductsCircuit ProtectionMax9Miniature Circuit-Breaker (MCB)

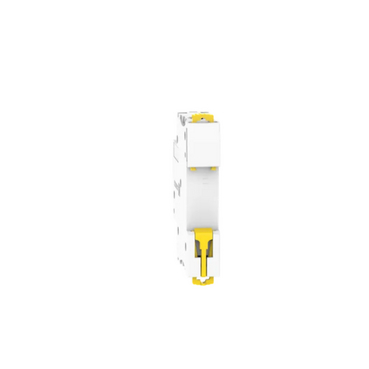

MAX9 Miniature Circuit-Breaker (MCB) 1P, 40A, C Curve, 6000A, 240/415V, Distribution

Item Number: MX9MC140

Product Selector ➚

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width18 mm

Height icon

Height85 mm

Embedding depth icon

Embedding depth44 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
max9 busbar
max9 AFDD
max9 distribution board
max9 icons
max9 busbar
max9 AFDD
max9 distribution board
max9 icons

Ultimate Efficiency and Professional Finish

  • MAX9 takes the definition of  a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
  • With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from main switch and distributes both active & neutral across all type of Clipsal  RCBOs and AFDDs

MAX Innovation & Performance

  • Innovation is at the core of everything at Clipsal. MAX9 is no exception to that. MAX9 brings in Arc Fault Detection Device (AFDD) to help take the safety of Australian homes to next level
  • Enjoy best-in-class performance with 100A rated system. MAX9 products are designed for tough Aussie conditions with operating temperature ranging from -25 Deg C to +70 Deg C with derating
  • When it comes to circuit protection, it all comes down to what's on the inside. MAX9 breakers are solidly built and designed to endure 20K mechanical cycles and 10K electrical cycles*

Peace of Mind

  • Amendment 2 of "Wiring rules" mandate type A RCDs from 2023. All RCBOs and RCDs in MAX9 range are already type A so that you can be future ready
  • MAX9 system comes type tested as per the requirements of AS/NZS 61439-3 to provide you additional peace of mind
  • Clipsal MAX9 range comes with 7 year warranty for the ultimate peace of mind

Simplify Safety & Digital Experience

  • Sometimes it could be hard to explain circuit protection category to home owners. MAX9 helps to simplify safety by explaining types of circuit protection to home owners with simple pictograms
  • MAX9 range takes the digital experience to next level with QR codes on each product to easily access all technical information like specifications, brochures, installation instructions, FAQs and videos

Specifications

Design

Range

MAX9

Product or component type

miniature circuit-breaker

Device application

distribution

Warranty

7-year

Physical

[in] rated current

40 A at 30 °C

[ue] rated operational voltage

240 V AC 50/60 Hz

Control type

toggle

Local signalling

ON/OFF indication

Height

85 mm

Width

18 mm

Embedding depth

44 mm

Depth

75 mm

Net weight

125 g

Mechanical durability

20000 cycles

Electrical durability

10000 cycles 240 V

Connections - terminals

  • tunnel type terminals (top or bottom) 1-25 mm² flexible
  • tunnel type terminals (top or bottom) 1-35 mm² rigid

Wire stripping length

14 mm for top or bottom connection

Ip degree of protection

IP20

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...85 °C

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1409009EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

12

Poles description

1P

Number of protected poles

1

Network type

AC

Network frequency

50/60 Hz

Curve code

C

Magnetic tripping limit

5...10 x In

Breaking capacity

6000 A Icn at 240 V AC 50/60 Hz conforming to AS/NZS 60898

[ics] rated service breaking capacity

6000 A 100 % - 240 V AC 50/60 Hz

Limitation class

3

[uimp] rated impulse withstand voltage

4 kV

[ui] rated insulation voltage

500 V

Suitability for isolation

yes

Contact position indicator

yes

9 mm pitches

2

Heat dissipation

3.6...3.6 W

Provision for padlocking

padlockable

Tightening torque

3.5...3.5 N.m

Grid distance

45 mm

Quality labels

RCM

Pollution degree

2

Overvoltage category

III

Tropicalisation

severity B conforming to IEC 60068-2-30

Operating altitude

0...2000 m

Temperature derating table

  • -25 °C ( 47.4 A )
  • -20 °C ( 46.7 A )
  • -15 °C ( 46.1 A )
  • -10 °C ( 45.5 A )
  • -5 °C ( 44.8 A )
  • 0 °C ( 44.2 A )
  • 5 °C ( 43.5 A )
  • 10 °C ( 42.8 A )
  • 15 °C ( 42.1 A )
  • 20 °C ( 41.4 A )
  • 25 °C ( 40.7 A )
  • 30 °C ( 40 A )
  • 35 °C ( 39.3 A )
  • 40 °C ( 38.5 A )
  • 45 °C ( 37.7 A )
  • 50 °C ( 37 A )
  • 55 °C ( 36.2 A )
  • 60 °C ( 35.3 A )
  • 65 °C ( 34.5 A )
  • 70 °C ( 33.6 A )

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.2 cm

Package 1 width

8.5 cm

Package 1 length

1.8 cm

Package 1 weight

119.0 g

Unit type of package 2

BB1

Number of units in package 2

12

Package 2 height

8 cm

Package 2 width

22 cm

Package 2 length

9.85 cm

Package 2 weight

1.506 kg

Packaging without single use plastic

Yes

Packaging made with recycled cardboard

Yes

Scip number

26ff71d1-98cf-4280-8725-455b9a6b2fb9

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Minimum percentage of recycled plastic content

0
Show all specifications
max9 mcb
max9 mcb
max9 mcb
max9 mcb
max9 mcb
max9 mcb

Fast installation speed with unmatched flexibility

  • Compatible with MAX9 18 mm pitch pin type busbar for quick connection to MCB
  • Compatible with MAXBAR when MCB is used as main incomer
  • Installation flexibility with the choice of line connection either from top or bottom
  • Compatible with multiple types of screw-drivers with combination head screws
  • Double locking clip for ease of installation or removal from busbar

Helps to provide additional safety

  • Positive contact Indicator on toggle that indicates opening of all poles
  • ON/OFF locking with trip free mechanism

Peace of mind with complete solution

  • Short circuit breaking capacity of 6kA
  • Dedicated red toggle variant (63A only) where MCB is used as main incomer
  • Wide range of current ratings (2A to 63A for 1P MCBs & 6A to 63A for 2P/3P MCBs)
  • Designed for touch Aussie conditions with operating temperature range of -25 Deg C to +70 Deg C (derating applies)
  • Designed to last with endurance performance of 10K electrical cycles and 20K mechanical cycles
  • Through hole for sealing by wire (for ratings 40A and higher) as well as compatible with A9A26970 padlocking device
