MAX9 Arc Fault Detection (AFDD+RCBO) 1P+N, 20A, 30mA, C Curve, 6000A, A Type, All-in-one
Item Number: MX9A3220
Colour ()
- 1 PCE 0
Datasheet
Barcode
Qty | UoM | EAN | Colour |
---|---|---|---|
- | |||
- | |||
- |
Barcode
Qty | UoM | EAN | Colour |
---|---|---|---|
1 | 9311554813437 | - |






Peace of mind with complete solution
- Short circuit breaking capacity of 6kA
- Caters for current ratings from 6A to 25A
- Designed for touch Aussie conditions with operating temperature range of -25 Deg C to +70 Deg C (derating applies)
- Designed to last with endurance performance of 10K electrical cycles and 20K mechanical cycles
- Compatible with A9A26970 padlocking device
Fast installation speed with unmatched flexibility
- Up to 15 times faster installation with MAXBAR
- Installation flexibility with the choice of line connection either from top or bottom
- Compact design with 3 types of protection in 1 device - AFDD+RCD+MCB
- Compatible with multiple types of screw-drivers with combination head screws
- Diagnosis LED on device for easy diagnosis of tripping cause
Helps to provide additional safety
- Type A RCBO to sense a.c. as well as pulsating d.c.
- Visi-trip window on front face
- Switching of both active and neutral contacts
- Positive contact Indicator on toggle
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Product Brochures
-
Installation Instruction
-

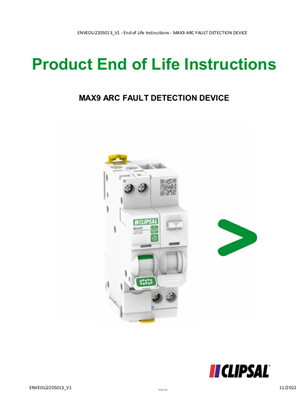

End of Life Manual
-
Environmental Disclosure
-
Certificates (MSDS)
Ultimate Efficiency and Professional Finish
- MAX9 takes the definition of a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
- With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from main switch and distributes both active & neutral across all type of Clipsal RCBOs and AFDDs
MAX Innovation & Performance
- Innovation is at the core of everything at Clipsal. MAX9 is no exception to that. MAX9 brings in Arc Fault Detection Device (AFDD) to help take the safety of Australian homes to next level
- Enjoy best-in-class performance with 100A rated system. MAX9 products are designed for tough Aussie conditions with operating temperature ranging from -25 Deg C to +70 Deg C with derating
- When it comes to circuit protection, it all comes down to what's on the inside. MAX9 breakers are solidly built and designed to endure 20K mechanical cycles and 10K electrical cycles*
Peace of Mind
- Amendment 2 of "Wiring rules" mandate type A RCDs from 2023. All RCBOs and RCDs in MAX9 range are already type A so that you can be future ready
- MAX9 system comes type tested as per the requirements of AS/NZS 61439-3 to provide you additional peace of mind
- Clipsal MAX9 range comes with 7 year warranty for the ultimate peace of mind
Simplify Safety & Digital Experience
- Sometimes it could be hard to explain circuit protection category to home owners. MAX9 helps to simplify safety by explaining types of circuit protection to home owners with simple pictograms
- MAX9 range takes the digital experience to next level with QR codes on each product to easily access all technical information like specifications, brochures, installation instructions, FAQs and videos
