MAX9 Miniature Circuit Breaker 3P+N, 20A, C curve, 6000A

Home ProductsCircuit ProtectionMAX9 PROMiniature Circuit Breaker

MAX9 Miniature Circuit Breaker 3P+N, 20A, C curve, 6000A

Item Number: MX9MN320

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width53 mm

Height icon

Height85 mm

Depth icon

Depth71 mm

See full specifications
Clipsal MAX9 Phase Neutral MCBs.

Features

  • MAX Speed compatible with MAXBAR and MAX9 PRO chassis for faster installation up to 15 times vs traditional install
  • MAX Ease terminate active and neutral load cables to device
  • MAX Space active and neutral switched MCB in compact 1 and 3 module devices
  • MAX Professionalism positive contact indication brings visibility on contact closing and opening

Specifications

Design

Range

MAX9

Product or component type

miniature circuit-breaker

Device application

distribution

Physical

[in] rated current

20 A at 30 °C

[ue] rated operational voltage

415 V AC 50/60 Hz

Control type

toggle

Local signalling

ON/OFF indication

Height

85 mm

Width

53 mm

Depth

71 mm

Mechanical durability

20000 cycles

Electrical durability

20000 cycles

Connections - terminals

  • tunnel type terminals (top or bottom) 1-10 mm² flexible
  • tunnel type terminals (top or bottom) 1-16 mm² rigid

Wire stripping length

14 mm for top or bottom connection

Ip degree of protection

IP20

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...85 °C

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2407001

Eu rohs directive

Compliant

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Legacy weee scope

In

Package 2 bare product quantity

4

Package 3 bare product quantity

44

Weee label

N/A

Weee applicability

Finished product

Poles description

3P + N

Number of protected poles

3

Network type

AC

Network frequency

50/60 Hz

Curve code

C

Magnetic tripping limit

5...10 x In

Breaking capacity

6000 A Icn at 415 V AC 50/60 Hz conforming to AS/NZS 60898

[ics] rated service breaking capacity

6000 A 100 % - 415 V AC 50/60 Hz

Limitation class

3

[uimp] rated impulse withstand voltage

4 kV

[ui] rated insulation voltage

400 V

Contact position indicator

yes

Tightening torque

2 N.m

Grid distance

45 mm

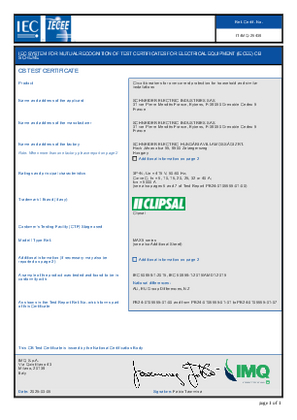

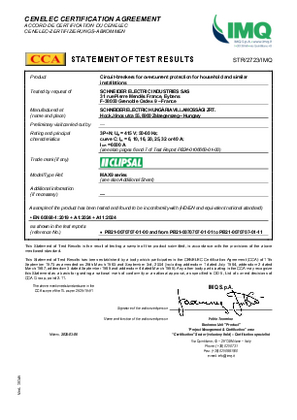

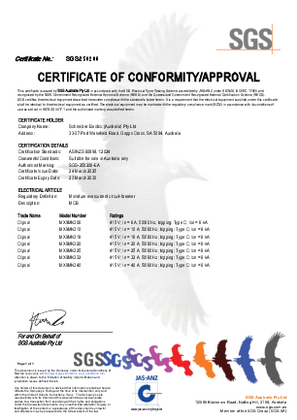

Quality labels

RCM

Pollution degree

2

Operating altitude

0...2000 m

Temperature derating table

  • -25 °C ( 23.16 A )
  • -20 °C ( 22.9 A )
  • -15 °C ( 22.61 A )
  • -10 °C ( 22.34 A )
  • -5 °C ( 22.06 A )
  • 0 °C ( 21.78 A )
  • 5 °C ( 21.49 A )
  • 10 °C ( 21.2 A )
  • 15 °C ( 20.9 A )
  • 20 °C ( 20.61 A )
  • 25 °C ( 20.3 A )
  • 30 °C ( 20.0 A )
  • 35 °C ( 19.69 A )
  • 40 °C ( 19.37 A )
  • 45 °C ( 19.04 A )
  • 50 °C ( 18.72 A )
  • 55 °C ( 18.38 A )
  • 60 °C ( 18.04 A )
  • 65 °C ( 17.7 A )
  • 70 °C ( 17.34 A )

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.4 cm

Package 1 width

5.3 cm

Package 1 length

8.5 cm

Package 1 weight

356 g

Unit type of package 2

BB1

Number of units in package 2

4

Package 2 height

22 cm

Package 2 width

9.9 cm

Package 2 length

8.7 cm

Package 2 weight

1.49 kg

Unit type of package 3

S03

Number of units in package 3

44

Package 3 height

30 cm

Package 3 width

30 cm

Package 3 length

40 cm

Package 3 weight

16.81 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

5 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

1.088030528192829

Carbon footprint of the manufacturing phase [a1 to a3]

1 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.01918408862395865

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0001855871961538998

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

3.2971104637631807

Carbon footprint of the use phase [b2, b3, b4, b6]

3 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.3753222570025987

Carbon footprint of the end-of-life phase [c1 to c4]

0.4 kg CO2 eq.

Pvc free

No

Halogen-free status

Product contains halogen above thresholds

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

4.779832924778721

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Halogen-free status

Product contains halogen above thresholds

Pvc free

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
