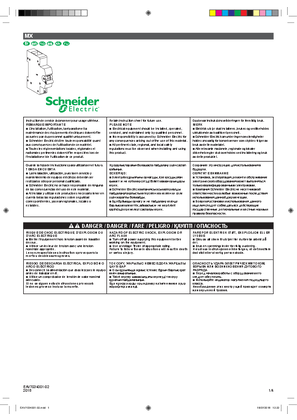

Acti9 MX-iC60 RCBO Voltage release Tripping unit, 110…415V AC

Item Number: A9A19805

1 PCE 0

This Acti9 product is a MX shunt trip release. It has 1 normally close contact (NC). It is clipped on DIN rail. The Ie rated operational current is 6A at 230VAC with a 50Hz frequency.

Where To Buy

Datasheet

Download

Product Dimensions

Width20 mm

Height80 mm

Depth98 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606489596040	-
6	BB1	13606489596047	-
36	S03	23606489596044	-

Specifications

Design

Range	Acti9
Product or component type	shunt trip release

Physical

[in] rated current	3 A at 400 V, AC 50 Hz 6 A at 230 V, AC 50 Hz 1.5...1.5 A at 110 V, DC
Control type	toggle
Range compatibility	Acti9 iC60 RCBO
Inrush current	0.22 A at 110 V AC/DC 0.84 A at 400 V AC
Mounting mode	clip-on
Mounting support	DIN rail
Height	80 mm
Width	20 mm
Depth	98 mm
Net weight	62 g
Mechanical durability	20000 cycles
Electrical durability	10000 cycles
Connections - terminals	screw clamp terminal (bottom) - 1 cable(s) 0.75-2.5 mm² - rigid screw clamp terminal (bottom) - 1 cable(s) 0.75-2.5 mm² - flexible screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - rigid screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible screw clamp terminal (bottom) - 1 cable(s) 2.5-2.5 mm² - flexible with ferrule screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible with ferrule
Wire stripping length	6 mm for bottom connection

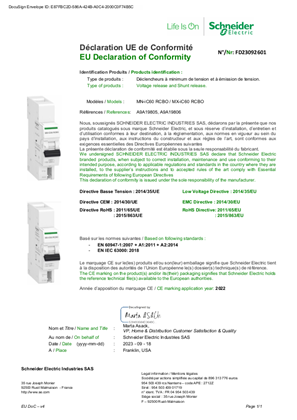

Standards	EN/IEC 60947-2
Ip degree of protection	IP2
Ambient air temperature for operation	-5...55 °C
Ambient air temperature for storage	-40...70 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2411001EN
Eu rohs directive	Compliant By Exemption

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Brand labelled
Substance regulation data deliverable	Yes
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
	At least in Europe
Package 3 bare product quantity	36
Package 2 bare product quantity	6
Package 1 bare product quantity	1
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty duration(in months) bmecat	18
Device short name	MX
Signal contacts composition	1 NC
[uc] control circuit voltage	110...400 V AC 50 Hz 110 V DC
Threshold tripping voltage	0.7...1.1 Un
9 mm pitches	2
Tightening torque	0.6...0.6 N.m bottom
Pollution degree	2
Overvoltage category	III
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.100 cm
Package 1 width	8.500 cm
Package 1 length	10.200 cm
Package 1 weight	82.000 g
Unit type of package 2	BB1
Number of units in package 2	6
Package 2 height	10.000 cm
Package 2 width	11.500 cm
Package 2 length	27.000 cm
Package 2 weight	557.000 g
Unit type of package 3	S03
Number of units in package 3	36
Package 3 height	30.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	3.950 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	Yes
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	a7b24ae6-2312-4e67-b7c9-56fce3e8c723
End of life manual availability	ENVEOLI1604016EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
