Acti9 MN-iC60 RCBO Undervoltage release Tripping unit, 230V AC

Item Number: A9A19806

1 PCE 0

This Acti9 MN electrical auxiliary is a undervoltage release device. It is dedicated to Acti9 iC60 RCBO. It prevents device closing again until its input voltage has been restored. The width in 9mm pitches is 2. The product trips the associated device when it is powered on. The Uc control circuit voltage is 230VAC. It can be mounted on a DIN rail for modular installation. The product color is white (RAL9003). The operating temperature is -5°C to 55°C. The storage temperature is -40°C to 70°C. This product complies with EN/IEC 60947-1 standards.

Where To Buy

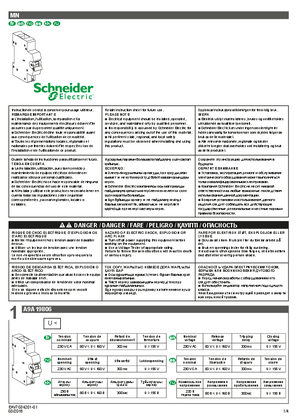

Datasheet

Download

Product Dimensions

Width20 mm

Height80 mm

Depth98 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606489596057	-
36	S03	23606489596051	-

Specifications

Design

Range	Acti9
Product or component type	undervoltage release

Physical

Control type	toggle
Range compatibility	Acti9 iC60 RCBO
Mounting mode	clip-on
Mounting support	DIN rail
Height	80 mm
Width	20 mm
Depth	98 mm
Net weight	62 g
Mechanical durability	20000 cycles
Electrical durability	10000 cycles
Connections - terminals	screw clamp terminal (bottom) - 1 cable(s) 0.75-2.5 mm² - rigid screw clamp terminal (bottom) - 1 cable(s) 0.75-2.5 mm² - flexible screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - rigid screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible screw clamp terminal (bottom) - 1 cable(s) 2.5-2.5 mm² - flexible with ferrule screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible with ferrule
Wire stripping length	6 mm for bottom connection
Standards	EN/IEC 60947-2
Ip degree of protection	IP2
Ambient air temperature for operation	-5...55 °C
Ambient air temperature for storage	-40...70 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2411001EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Brand labelled
Substance regulation data deliverable	Yes
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
Package 3 bare product quantity	36
Package 2 bare product quantity	6
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	MN
[uc] control circuit voltage	230 V AC 50 Hz
Threshold tripping voltage	0.35...0.75 Un
9 mm pitches	2
Response time	300 ms
Current consumption	12 mA
Holding current	12 mA
Tightening torque	0.6...0.6 N.m bottom
Pollution degree	2
Overvoltage category	III
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.000 cm
Package 1 width	8.200 cm
Package 1 length	10.200 cm
Package 1 weight	82.000 g
Unit type of package 2	BB1
Number of units in package 2	6
Package 2 height	9.600 cm
Package 2 width	11.500 cm
Package 2 length	26.500 cm
Package 2 weight	566.000 g
Unit type of package 3	S03
Number of units in package 3	36
Package 3 height	30.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	4.362 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	Yes
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	a7b24ae6-2312-4e67-b7c9-56fce3e8c723
End of life manual availability	ENVEOLI1604016EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
