Acti9 Residual current circuit breaker (RCCB) iID, 4P, 63A, A type, 30mA

Item Number: A9R51463

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width72 mm

Height85 mm

Embedding depth44 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480091469	-

Specifications

Design

Range of product	iID
Range	Acti9
Product or component type	residual current circuit breaker (RCCB)
Warranty	18 months

Physical

[in] rated current	63 A
[ue] rated operational voltage	400...415 V AC 50/60 Hz
Control type	toggle
Mounting mode	clip-on
Mounting support	35 mm DIN rail
Height	85 mm
Width	72 mm
Depth	69 mm
Embedding depth	44 mm
Net weight	370 g
Mechanical durability	20000 cycles
Electrical durability	15000 cycles
Connections - terminals	single terminal top or bottom 1-35 mm² rigid single terminal top or bottom 1-25 mm² flexible single terminal top or bottom 1-25 mm² flexible with ferrule
Wire stripping length	14 mm for top or bottom connection
Standards	EN/IEC 61008-1 EN/IEC 61008-2-1
Ip degree of protection	IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
Ambient air temperature for operation	-25...60 °C
Ambient air temperature for storage	-40...85 °C
Mercury free	Yes
Rohs exemption information	Yes

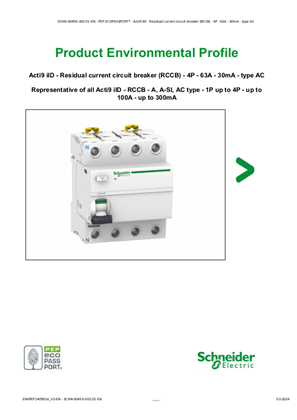

Environmental disclosure	ENVPEP1409014EN
Eu rohs directive	Compliant By Exemption

Others

Life cycle assessment data	Yes
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
Product name	Acti9 iID
Device short name	iID
Poles description	4P
Neutral position	left
Network type	AC
Earth-leakage sensitivity	30 mA
Earth-leakage protection time delay	instantaneous
Earth-leakage protection class	type A
Device location in system	outgoer
Network frequency	50/60 Hz
Residual current tripping technology	voltage independent
Rated breaking and making capacity	Idm 1500 A Im 1500 A
Rated conditional short-circuit current	10 kA
[ui] rated insulation voltage	500 V AC 50/60 Hz
[uimp] rated impulse withstand voltage	6 kV
Contact position indicator	yes
Comb busbar and distribution block compatibility	top or bottom: tooth
Connection pitch	18 mm between phases 18 mm between phase and neutral
9 mm pitches	8
Total power losses	10.5 W
Power losses per pole	3.5 W
Locking options description	padlocking device
Tightening torque	3.5...3.5 N.m top or bottom
Compatibility code	iID
Pollution degree	3
Electromagnetic compatibility	8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.5 cm
Package 1 width	7.7 cm
Package 1 length	9.6 cm
Package 1 weight	411.0 g
Unit type of package 2	S03
Number of units in package 2	27
Package 2 height	30.0 cm
Package 2 width	30.0 cm
Package 2 length	40.0 cm
Package 2 weight	11.536 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	61 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	3.441265412407852
Carbon footprint of the manufacturing phase [a1 to a3]	3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.08750979371656033
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.03881745632815993
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	56.5493279917473
Carbon footprint of the use phase [b2, b3, b4, b6]	57 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	1.0109489759075165
Carbon footprint of the end-of-life phase [c1 to c4]	1 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	61.12786963010739
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	b078722f-7853-4e1e-a05b-29638f57b0ab
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
