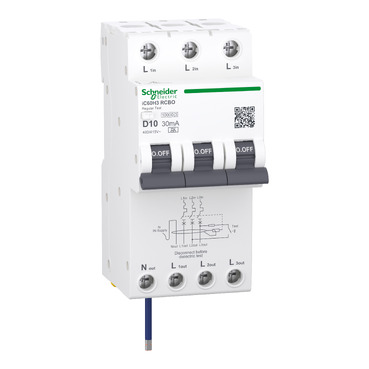

Acti9 iC60H3 Residual current breaker with overcurrent protection (RCBO) 3P+Ns, D Curve, 10A, 30mA, A type, 10000A

Item Number: A9DD1910

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width54 mm

Height112 mm

Depth77.2 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606487022251	-

Specifications

Design

Range	Acti9
Product or component type	residual current breaker with overcurrent protection (RCBO)

Physical

[in] rated current	10 A at 30 °C
[ue] rated operational voltage	400/415 V
Control type	toggle
Local signalling	ON/OFF indication
Mounting mode	clip-on
Mounting support	DIN rail chassis
Height	112 mm
Width	54 mm
Depth	77.2 mm
Net weight	462 g
Mechanical durability	20000 cycles
Electrical durability	5000 cycles
Connections - terminals	screw clamp terminal (top) 1-25 mm² rigid without cable end screw clamp terminal (top) 1-16 mm² flexible
Wire stripping length	power circuit: 11 mm for bottom connection power circuit: 14 mm for top connection
Standards	AS/NZS 61009.1 IEC 61009-1 IEC 61009-2-2
Ip degree of protection	IP20
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-5...60 °C
Ambient air temperature for storage	-25...70 °C
Reach free of svhc	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2308033EN
Eu rohs directive	Compliant

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	16
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Circuit breaker application	distribution
Product name	Acti9 iC60 RCBO
Device short name	iC60H3 RCBO
Poles description	3P + Ns
Earthing system	TN
Curve code	D
Earth-leakage sensitivity	30 mA
Breaking capacity	10000 A Icn at 400/415 V
Neutral position	left
Number of protected poles	3
Device location in system	outgoer
Network frequency	50/60 Hz
Network type	AC
Trip unit technology	thermal-magnetic
Residual current tripping technology	voltage dependent
Earth-leakage protection time delay	instantaneous
Earth-leakage protection class	type A
[icw] rated short-time withstand current	Icw: 250 A during 8/20 µs impulse withstand
[ics] rated service breaking capacity	7500 A
Limitation class	3
[ui] rated insulation voltage	500 V
[uimp] rated impulse withstand voltage	4 kV
Surge current	250 A
Suitability for isolation	yes conforming to IEC 61009-1
Comb busbar and distribution block compatibility	YES
9 mm pitches	6
Provision for padlocking	padlockable with padlock Ø 4 mm lead seal
Locking options description	ON/OFF locking facilities
Tightening torque	power circuit: 2.5...2.5 N.m top power circuit: 2.5...2.5 N.m bottom
Earth-leakage protection	integrated
Test button operating voltage	260...457 V
Operating voltage earthleakage protection	150...457 V
Grid distance	45 mm
Locking options description	handle sealable with cable diameter 1.4mm in OFF or ON position
Tropicalisation	2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	12.7 cm
Package 1 width	6.6 cm
Package 1 length	9 cm
Package 1 weight	539 g
Unit type of package 2	S02
Number of units in package 2	16
Package 2 height	15 cm
Package 2 width	30 cm
Package 2 length	40 cm
Package 2 weight	9.376 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	6 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	4.065593015
Carbon footprint of the manufacturing phase [a1 to a3]	4 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.037270577
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.065751401
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.923188499
Carbon footprint of the use phase [b2, b3, b4, b6]	0.9 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	1.056123897
Carbon footprint of the end-of-life phase [c1 to c4]	1 kg CO2 eq.
Pvc free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	6.147927389
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Pvc free	Yes
End of life manual availability	ENVEOLI2308033EN
Take-back	No
Warranty (in months)	18
