Acti9 Overvoltage release iMSU, voltage release, 230 V AC

Item Number: A9A26500

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width18 mm

Height82.5 mm

Depth68 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480512490	-
8	BB1	13606480512497	-

Specifications

Design

Range	Acti9
Product or component type	overvoltage release
Range of product	iC60 RCA iDPN Vigi iID ARA iSW-NA
Product compatibility	RCA ARA iID iDPN Vigi iSW-NA iC60 single terminal double terminal
Market segment	residential small commercial
Warranty	18 months

Physical

Range compatibility	Acti9 iC60H RCBO Acti9 iC60H RCBO PoN Acti9 iC60H2 RCBO Acti9 iC60N RCBO Acti9 iKQE RCBO Acti9 iCVm40 Acti9 iCVr40 Acti9 iDDm40
Local signalling	action indicator
Mounting mode	clip-on
Mounting support	DIN rail
Height	82.5 mm
Width	18 mm
Depth	68 mm
Connections - terminals	clamp terminal - 1 cable(s) 0.5-4 mm² - flexible clamp terminal1-6 mm² - rigid
Wire stripping length	10 mm
Standards	EN 50550
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-35...70 °C
Ambient air temperature for storage	-40...85 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2206015EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	8
Package 3 bare product quantity	72
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	iMSU
[uc] control circuit voltage	230 V AC 50/60 Hz
Threshold tripping voltage	255 V 275 V 3...15 s 300 V 1...5 s 350 V 0.25...0.75 s 400 V 0.07...0.2 s
9 mm pitches	2
Comb busbar and distribution block compatibility	top and bottom: YES
Tightening torque	1 N.m
Compatibility code	iMSU

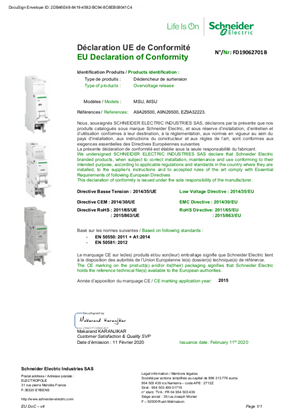

Quality labels	CE
Tropicalisation	2 conforming to EN/IEC 60947-5-1
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.000 cm
Package 1 width	8.200 cm
Package 1 length	9.500 cm
Package 1 weight	78.000 g
Unit type of package 2	BB1
Number of units in package 2	8
Package 2 height	8.800 cm
Package 2 width	10.000 cm
Package 2 length	26.700 cm
Package 2 weight	685.000 g
Unit type of package 3	S03
Number of units in package 3	72
Package 3 height	30.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	6.586 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	1 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.5013182153869232
Carbon footprint of the manufacturing phase [a1 to a3]	0.5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.01845832384507551
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.025552379361834066
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.5311163929133567
Carbon footprint of the use phase [b2, b3, b4, b6]	0.5 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.13696199538873866
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	1.2134073068959281
Bvb	Accepted
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	Yes
Scip number	c019b20e-e2a4-4fe7-afac-47a72d3f1e0f
End of life manual availability	ENVEOLI2206015
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
