Acti9 Overvoltage release iMSU Threshold 255V to 400V

Item Number: A9N26500

1 PCE 0

This MSU product is an overvoltage release auxiliary. It is mounting on left side of circuit-breaker. The Uc control circuit voltage is 230VAC with a 50/60Hz frequency. The dimensions are (W) 18mm x (H) 82.5mm x (D) 73.5mm.

Where To Buy

Datasheet

Download

Product Dimensions

Width18 mm

Height82.5 mm

Depth73.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480512483	-
8	BB1	13606480512480	-

Specifications

Design

Range	Acti9
Product or component type	overvoltage release
Range of product	DPN ProDis C120 Clario Librio DPN Vigi ID
Product compatibility	IDc ID C40 C120 C40 C60 iDPN DPN Vigi ITG40 DT40
Market segment	small commercial residential
Warranty	18 months

Physical

Range compatibility	Acti9 iDPN Acti9 C120 Acti9 C40 Acti9 C60H-DC Acti9 C60NA-DC Acti9 C60PV-DC Acti9 DPN Vigi Acti9 DT40 Acti9 ID C40 Acti9 IDc Acti9 ITG40 Acti9 ID Acti9 DPN
Local signalling	action indicator
Mounting mode	fixed
Mounting support	35 mm symmetrical DIN rail
Height	82.5 mm
Width	18 mm
Depth	73.5 mm
Net weight	66 g
Connections - terminals	screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible with ferrule screw clamp terminal (bottom) - 1 cable(s) 0.5-2.5 mm² - rigid
Wire stripping length	9 mm 10 mm for bottom connection
Standards	EN 50550
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-25...50 °C
Ambient air temperature for storage	-40...85 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2206015EN
Eu rohs directive	Compliant By Exemption

Others

Package 3 bare product quantity	72
Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	8
Package 1 bare product quantity	1
Legacy weee scope	In
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
	At least in Europe
Warranty duration(in months) bmecat	18
Device short name	MSU
[uc] control circuit voltage	230 V AC 50/60 Hz
Threshold tripping voltage	255 V 275 V 3...15 s 300 V 1...5 s 350 V 0.25...0.75 s 400 V 0.07...0.2 s
9 mm pitches	2
Comb busbar and distribution block compatibility	top: YES
Tightening torque	1 N.m bottom
Compatibility code	MSU

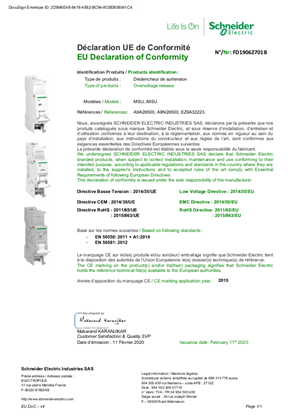

Quality labels	CE
Tropicalisation	2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.000 cm
Package 1 width	3.000 cm
Package 1 length	9.500 cm
Package 1 weight	74.000 g
Unit type of package 2	BB1
Number of units in package 2	8
Package 2 height	8.500 cm
Package 2 width	10.000 cm
Package 2 length	26.500 cm
Package 2 weight	645.000 g
Unit type of package 3	S03
Number of units in package 3	72
Package 3 height	30.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	6.225 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	1 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.3809772928625278
Carbon footprint of the manufacturing phase [a1 to a3]	0.4 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.014027422171063895
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.019418556949809568
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.5311163929133567
Carbon footprint of the use phase [b2, b3, b4, b6]	0.5 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.10408440911722905
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	1.049624074013987
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	Yes
Scip number	9da5f8d9-d60f-424a-bb30-a856a097686c
End of life manual availability	ENVEOLI2206015
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
