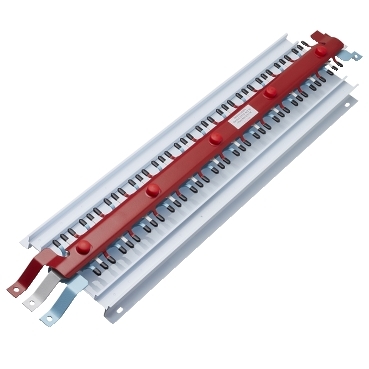

Acti9, MSC Chassis, 3PH, 250A, iC60 3P MCB with 9mm Auxiliary, 72 poles, Dual Feed
Item Number: C325723AUX93
Datasheet
Close
Specifications
Design
Range
Acti9
Product or component type
chassis
Device application
distribution
Physical
Range compatibility
Acti 9 Acti9 Isobar B distribution board
[in] rated current
250 A
Length
758 mm
Width
215 mm
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Package 1 bare product quantity
1
Packaging made with recycled cardboard
No
Packaging without single use plastic
No
Device short name
MSC AUX9
Short-circuit withstand
25 kA 0.1 s
[icw] rated short-time withstand current
25 kA
Number of ways
- 1 way (incomer) - 3P
- 72 (outgoer) - 3P with 9 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
1.000 kg
Take-back
No
Take-back
No
Product contributes to saved and avoided emissions
No
Recycled metal content at cr level
0
Removable battery
N/A
Minimum percentage of recycled plastic content
0
