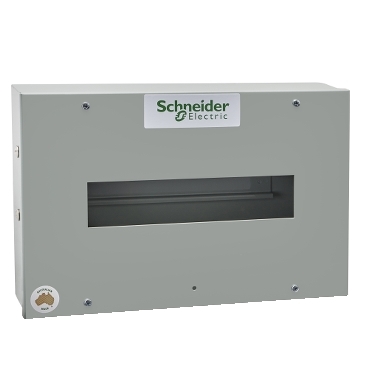

Acti 9 DB, Load centre, 12 poles, surface mounted, IP40

Acti 9 DB, Load centre, 12 poles, surface mounted, IP40

Item Number: L12S

This Acti9 product is a surface mounted distribution load centre. 1 Din rail of 12 modules of 18mm is provided within the enclosure. It is made of steel and its color is grey.

Datasheet

Product Dimensions

Width icon

Width346 mm

Height icon

Height231 mm

Depth icon

Depth66 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

Load Centre

Device application

distribution

Physical

Provided equipment

enclosure|DIN rail

Number of poles

12

Height

231 mm

Width

346 mm

Depth

66 mm

Ip degree of protection

IP40

Eu rohs directive

Not applicable, out of EU RoHS legal scope

Material

Material

steel

Others

Package 1 bare product quantity

1

Number of horizontal rows

1

Number of 18 mm modules per row

12

Type of rail

DIN

Mounting plate description

without mounting plate

Enclosure mounting

surface

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.4 cm

Package 1 width

24.0 cm

Package 1 length

37.0 cm

Package 1 weight

2.8 kg
