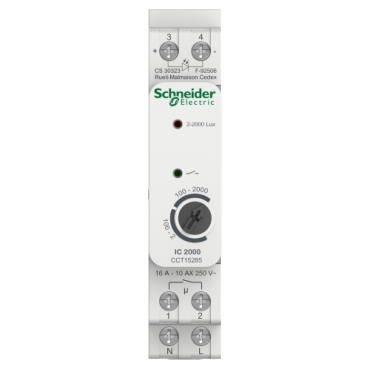

Acti9 IC2000 indoor twilight switch 2 - 2000 lux

Home ProductsCircuit ProtectionActi 9IC2000 indoor twilight switch

Acti9 IC2000 indoor twilight switch 2 - 2000 lux

Item Number: CCT15285

IC2000 analogue twilight switch Width of 18mm (2 modules of 9mm) Closing and opening of a contact when brightness decreases, or rises above the selected threshold. Adjustable brightness threshold: 2 to 2000 lux Delivered with indoor switchboard sensor 1 channel output

Datasheet

Product Dimensions

Width icon

Width18 mm

Height icon

Height85.5 mm

Depth icon

Depth67 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

twilight switch

Device application

building

Physical

Provided equipment

twilight sensor indoor

Load type

  • incandescent lamp: 2600 W
  • halogen lamp: 2600 W
  • non-corrected fluorescent tube: 2300 VA
  • serial-compensated fluorescent tube: 2300 VA
  • parallel compensated fluorescent lamp: 730 VA (80 µF)
  • compact fluorescent lamp: 170 W
  • < 2 W LED lamp: 30 W
  • > 2 W LED lamp: 200 W

Number of channels

1

[ue] rated operational voltage

230 V AC +10 % -15 % at 50/60 Hz

Electrical insulation class

class II

Light intensity adjustment

2...2000 lux

Connections - terminals

  • 2 x 0.5-2.5 mm² screw terminals solid or flexible
  • 1 x 2.5-2.5 mm² screw terminals solid or flexible with sleeve

Mounting support

TH35 DIN rail conforming to EN 60715

Height

85.5 mm

Width

18 mm

Depth

67 mm

Net weight

87.5 g

Marking

CE

Control type

by brightness detection

Ambient air temperature for operation

-30...55 °C

Ambient air temperature for storage

-30...70 °C

Relative humidity

90 %, non-condensing

Ip degree of protection

  • IP20
  • IP66 (sensor)front
  • IP40 (sensor)rear

Standards

EN 60669-2-1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP1901001EN

Circularity profile

ENVEOLI1901001EN

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

60

Product name

Acti9 IC

Device short name

IC2000

Maximum power consumption in w

0.5 W stand by

Maximum switching current

  • 10 A - 250 V AC pf = 0.6
  • 16 A - 250 V AC pf = 1

Minimum switching current

  • 10 mA 230 V AC
  • 100 mA 24 V AC/DC

Output type

dry contact

Accuracy

+/- 0.25 s/day 25 °C

Contacts type and composition

1 NO

Time delay

  • 20 s on
  • 80 s off

Overvoltage category

class 3

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.700 cm

Package 1 width

7.700 cm

Package 1 length

10.500 cm

Package 1 weight

126.000 g

Unit type of package 2

S03

Number of units in package 2

60

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

7.922 kg

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Green premium status for reporting

Green Premium product

Scip number

90215406-b6bf-44f8-b463-8540d32a6f6b

Optimized energy efficiency

False

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Minimum percentage of recycled plastic content

0
