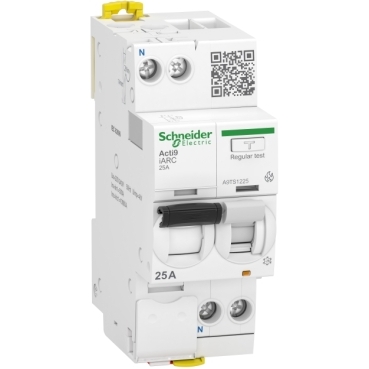

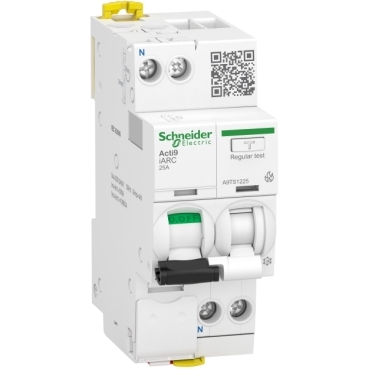

Acti9, Arc fault detection switch, Acti9 iARC, 1P+N, 25A, 10000A

Home ProductsCircuit ProtectionActi 9Arc fault detection switch

Acti9, Arc fault detection switch, Acti9 iARC, 1P+N, 25A, 10000A

Item Number: A9TS1225

Where To Buy

Datasheet

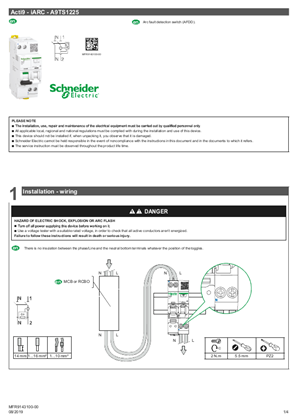

PDF datasheet

Download

Product Dimensions

Width icon

Width36 mm

Height icon

Height91 mm

Depth icon

Depth75 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

arc fault detection switch

Sustainable offer status

Green Premium product

Physical

[in] rated current

25 A

[ue] rated operational voltage

230...240 V AC 50 Hz conforming to IEC 62606

Control type

toggle

Local signalling

ON, OFF, fault trip

Mounting mode

clip-on

Mounting support

DIN rail

Mechanical durability

20000 cycles

Electrical durability

10000 cycles 240 V AC 50 Hz conforming to IEC 62606

Connections - terminals

tunnel type terminal2 cable(s) 2.5-2.5 mm² rigid|tunnel type terminal1 cable(s) 16-16 mm² rigid|tunnel type terminal2 cable(s) 2.5-2.5 mm² flexible|tunnel type terminal1 cable(s) 10-10 mm² flexible

Cable entry

top and bottom

Wire stripping length

14 mm

Height

91 mm

Width

36 mm

Depth

75 mm

Net weight

205 g

Ip degree of protection

IP20 conforming to IEC 60529

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-40...80 °C

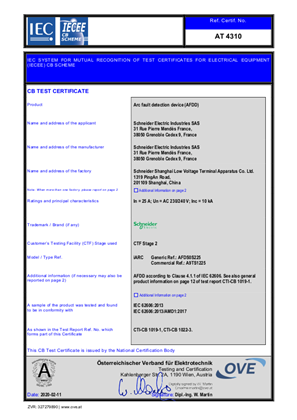

Standards

IEC 62606

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2205013EN

Circularity profile

ENVEOLI2205013EN

Others

Commercial status history

SESA301466 | Fri Jun 28 11:32:00 EDT 2024 | From Import Local | From 19 to 19

Package 1 bare product quantity

1

Product specific application

arc fault detection

Product name

Acti9 iARC

Device short name

iARC

Poles description

1P + N

Neutral position

left

Network type

AC

Rated breaking and making capacity

Im = 500 A

Rated conditional short-circuit current

upstream MCB 25A: Inc 10 kA|upstream RCBO 25A: Inc 10 kA

Device location in system

outgoer

Network frequency

50 Hz

[ui] rated insulation voltage

250 V AC 50 Hz between phase and neutral|400 V AC 50 Hz between phases

[uimp] rated impulse withstand voltage

4 kV conforming to IEC 62606

Threshold tripping voltage

275 V for +/- 5 V

Contact position indicator

yes

Heat dissipation

4.38...4.38 W at 240 V - 25 A

Locking options description

padlocking device

Tightening torque

2 N.m

9 mm pitches

4

Pollution degree

2 conforming to IEC 62606

Overvoltage category

III

Tropicalisation

severity B conforming to IEC 60068-2-30 for 28 d

Operating altitude

2000 m

Quality labels

RCM

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.5 cm

Package 1 width

3.6 cm

Package 1 length

9.1 cm

Package 1 weight

240.0 g

Halogen content performance

Halogen free plastic parts product
