ArcFault Detection Device

Helps reduce risk of electrical fire

Jump to... How do Arc Faults Occur? What can cause Arc Fault? Where to use AFDDs FAQs
View range

Keep your family and property protected

In just seconds, undetected arc faults can break out into an electrical fire. Broken wires, loose connections, crushed cables and worn insulation can all cause hidden arc faults in electrical circuits. Arc Fault Detection Device’s (AFDD’s), also known as Arc Fault Circuit Interrupter, can help to isolate the faulty circuit as soon as the Arc fault is detected.
Arc faults can be difficult to see. They usually occur in hidden places, such as damaged cables, inside walls or a loose connection in a hidden junction box, or outlet sockets.
Arc Faults are one of the main causes of electrical fires. These fires are surprisingly common in older buildings.

How do Arc Faults Occur?

How Arc Fault Fires Start

Very localised phenomena can cause an electrical fire. Check out this video to see how a loose wire in a standard multi-socket can arc and start a fire.

What can cause Arc Fault?

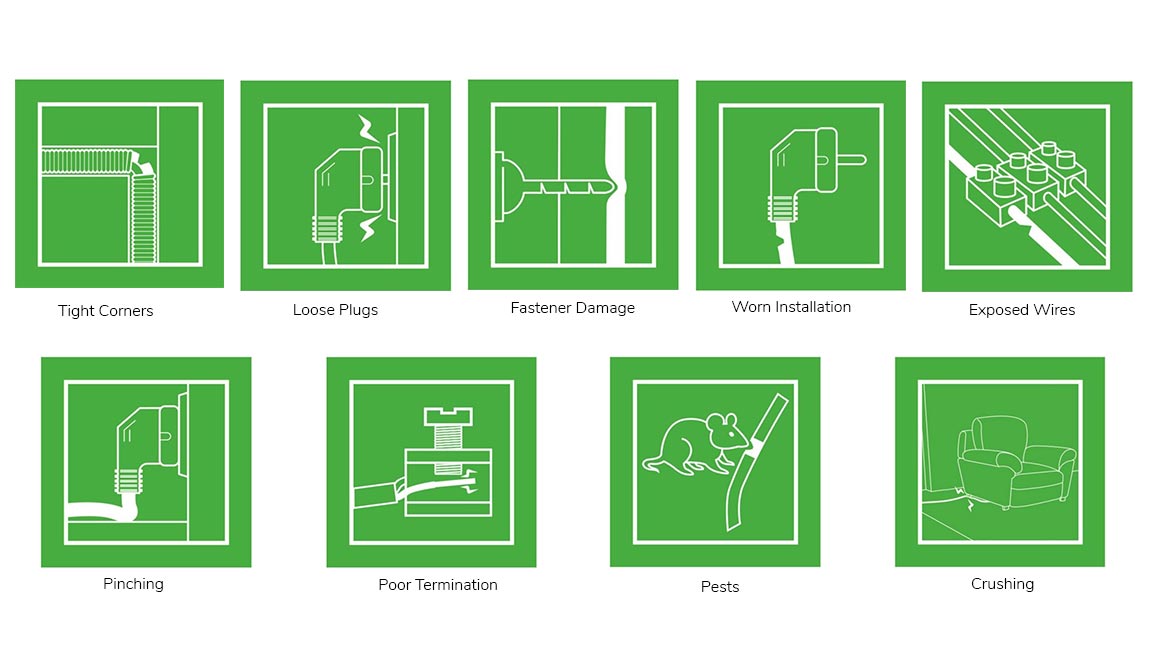

Pictograms showing how arc faults can occur and risk an electrical fire




What is an Arc Fault Detection Device?

An AFDD is a circuit breaker that automatically cuts the electricity supply when it detects an arc fault in a circuit. By cutting the electricity supply, AFDD’s help prevent arc faults from reaching temperatures where electrical fires can break out.

MAX9 AFDD


Arc Fault Detection device for residential applications.

View Products

Acti9 iDPN H VigiArc

Arc Fault detection device for commercial applications.

Learn More➚

Where to use AFDDs

Recommended by AS/NZS 3000:2018

Pictogram showing Homes, dormitories, and other places with sleeping accommodation
Homes, dormitories, and other places with sleeping accommodation

Pictogram of Fire propagating structures
Fire propagating structures


Museums, galleries that have irreplaceable goods

Pictograms representing Day care centres, pre-schools, schools, retirement and nursing homes; areas where there are children, handicapped and elderly people
Day care centres, pre-schools, schools, retirement and nursing homes; areas where there are children, handicapped and elderly people

Pictogram representing Large gathering places, like cinemas, universities, restaurants, underground stations, office complexes and shopping centres.
Large gathering places, like cinemas, universities, restaurants, underground stations, office complexes and shopping centres

Pictogram showing electrical fire risk locations such as a barn or wood working shops
Risk locations, this risk may be from what is stored there, such as a barn or wood working shops

Pictogram representing locations with combustible construction materials like wooden buildings
Locations with combustible construction materials like wooden buildings

Escalated Risk

Power circuits (connected to socket outlets) have a higher risk of arc faults because of the following reasons:

  • Arcing in extension boards
  • Damaged cables due to being plugged in behind furniture
  • Damaged extension leads from bending around corners or trapped under furniture
  • Damage to plugged cables due to temperature variation, ultraviolet rays, vibrations, humidity, and rodents in outdoor environment.

Check out this message from Gary Busbridge, the Standardisation Manager for Clipsal by Schneider Electric, to learn more about AFDD.

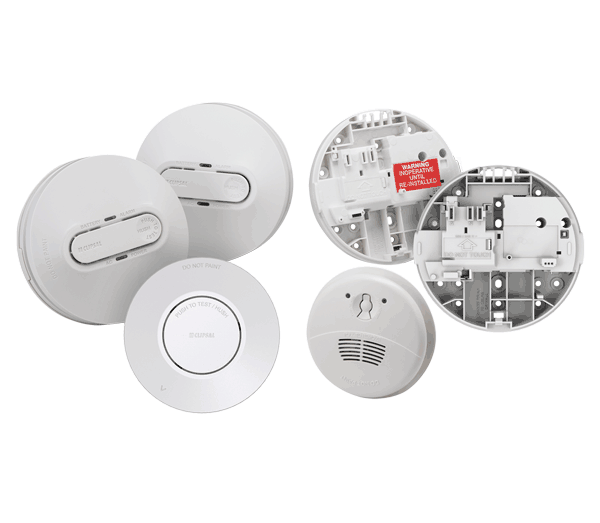

Clipsal Smoke Alarms

Can other protective devices replace AFDDs?

Smoke detectors help to alert building occupants to the presence of smoke, but only after a fire has started. It is mandatory for all new homes in Australia to have smoke alarms installed.

Early detection helps occupants evacuate, however, smoke alarms can’t prevent fires. The elderly disabled or people in a difficult location may not have enough time to evacuate.

Clipsal AFDDs are designed to help prevent electrical fires from starting.

Compact and easy to install, AFDDs fit into residential and building electrical switchboards. They can’t be replaced by any other protective device such as; miniature circuit breakers (MCBs), surge protection devices (SPDs), or residual current devices (RCDs). While these protect against specific electrical hazards, they are not designed to detect arc faults.

Additional Info

Installation Instructions

Learn more about installing AFDD's and diagnosing the cause of tripping.

Explore Instructions (PDF 16MB)

AFDD FAQ

Learn more about ArcFault Detection Devices and how they can help reduce the risk of electrical fires.

View AFDD FAQs
