Clipsal Resi MAX, A type Residual Current Circuit Breaker, 2P 40A 30mA

Home ProductsSecurity and SafetyResi MaxA type Residual Current Circuit Breaker

Clipsal Resi MAX, A type Residual Current Circuit Breaker, 2P 40A 30mA

Item Number: RMXRC240

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Resi MAX

Product or component type

residual current circuit breaker (RCCB)

Product brand

Clipsal

Device application

protection

Physical

[in] rated current

40 A

[ue] rated operational voltage

240 V

Height

81 mm

Width

36 mm

Depth

73 mm

Net weight

189 g

Embedding depth

44 mm

Mechanical durability

4000 cycles

Electrical durability

4000 cycles

Connections - terminals

tunnel type terminals - 1...25 mm² - flexible|tunnel type terminals - 1...35 mm² - rigid

Wire stripping length

14 mm

Standards

AS/NZS 61008

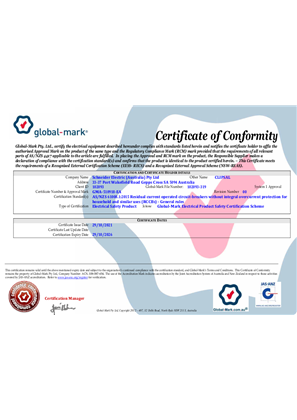

Product certifications

RCM|CB

Ip degree of protection

IP20 conforming to IEC 60529|IP40 (modular enclosure) conforming to IEC 60529

Ambient air temperature for operation

-25...40 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Package 1 bare product quantity

1

Poles description

2P

Number of modules

2

Network type

AC

Earth-leakage sensitivity

30 mA

Earth-leakage protection class

type A

Rated conditional short-circuit current

6 kA

Network frequency

50 Hz

[ui] rated insulation voltage

500 V

[uimp] rated impulse withstand voltage

4 kV

Surge current

250 A

Size

81 x 36 x 75 mm conforming to DIN 43880

Connection pitch

18 mm

9 mm pitches

4

Tightening torque

3.5...3.5 N.m

Pollution degree

2

Overvoltage category

III

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8 cm

Package 1 width

4 cm

Package 1 length

9 cm

Package 1 weight

212 g
