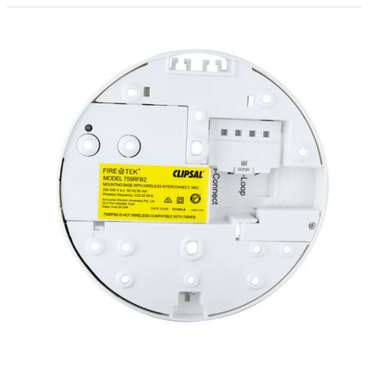

Clipsal - Smoke Alarms Smoke Alarm Surface Mounting Base 220-240V a.c. Mains Power, Wireless Interconnect, Gen 2
Item Number: 755RFB2
The Fire Tek smoke alarm Wireless Mounting Base allows up to 40 smoke alarms to be wirelessly interconnected. This is useful when adding a new alarm to an existing group, or if it is challenging to run interconnected cables. It has a remote test/hush input to allow testing or silencing from a momentary wall switch.
Datasheet
Specifications
Design
| Range | Fire Tek |
|---|---|
| Product brand | Clipsal |
| Product or component type | mounting base |
| Device application | mounting |
Physical
| [ie] rated operational current | 60 mA maximum |
|---|---|
| Transmission frequency | 433.42 MHz |
| Operating distance |
|
| Remote control type | Dry contact momentary switch for test/hush function with max. cable length 20 m |
| Connections - terminals |
|
| Local signalling | flashing: 1 LED (red) 10 s for low battery |
| Type of installation | indoor |
| Fixing center | 84 mm |
| Ambient air temperature for operation | 0...45 Ā°C |
| Relative humidity | 5...95 % |
| Product certifications |
|
| Standards |
|
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1907002_V1 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | X |
| Eu rohs directive | Compliant By Exemption |
Documents & downloads
-
All
-
Product Brochures
-
Other technical guide
-
Installation Instruction
-
End of Life Manual
-
Environmental Disclosure
-
Certificates (MSDS)
-
Declaration of Conformity (Sustainability)
755RFB2 Smoke Alarm Mounting Base
VERSION
1.0
DATE
29 Feb 2024
REVISION
1.0
755LPSMA4 Smoke Alarm Instruction Sheet
VERSION
2.0
DATE
29 Sep 2023
REVISION
2.0
Pairing Process for 755LPSMA4 Smoke Alarm and 755RFB2 Base
VERSION
1.0
DATE
02 Aug 2022
REVISION
1.0
Frequently Asked Questions
VIDEO - How to Interconnect 2 755RFB2 Smoke Alarm Bases & a 755PSMA4 Smoke Alarm?
Hide ShowāŗLearn More: https://www.clipsal.com
How do I delete the pairing on a 755RFB2 Smoke Alarm Mounting Base with Wireless Interconnect ?
Hide Show- Make sure all bases are powered ON in normal mode.
- Press RF button 3 times in 2 seconds on the unit. RF LED will light on.
- Press and hold RF button for at least 4 seconds, RF LED will flash 5 times to confirm the success.
VIDEO - How to Test Interconnection of 755RFB2 Base with 755PSMA4 Smoke Alarm?
Hide ShowāŗLearn More: https://www.clipsal.com
Can the Wiser smoke alarm interconnect with my existing alarms?
Hide Show
Range
Clipsal's Fire Tek range helps protect the most valuable assets; family, friends and the home.
They are backed by the SAI Global 5 ticks certification of quality, offering robust designs for reliability, ensuring early detection and warning from hazardous smoke and fire.
The Australian Building Code mandates all new homes must have AS3786:2014 compliant smoke alarms installed, interconnected and hard wired to mains power.
By having Fire Tek's smoke alarms installed, you will have the best chance of escaping the devastating effects of a house fire.
