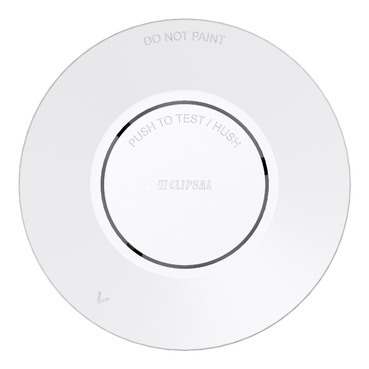

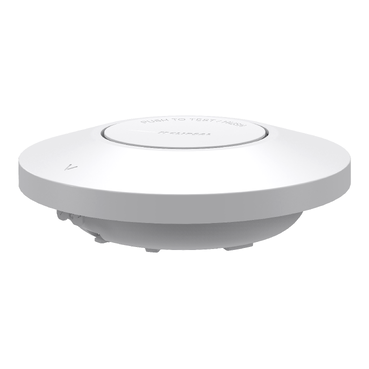

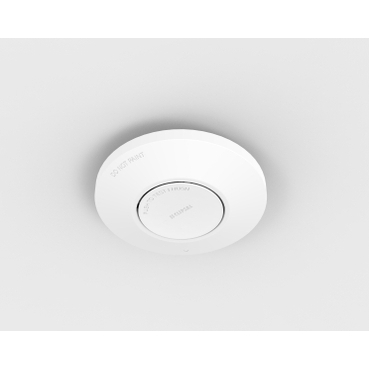

Clipsal - Smoke Alarms Photoelectric Smoke Alarm Surface Mount, Lithium Battery Powered only, built-in Wireless Interconnect
Item Number: 755LPSMA4
755LPSMA4 photoelectric smoke alarm helps in early detection of smouldering fires. Powered by a 10-year sealed-in lithium battery means no more replacing backup batteries annually. It can be interconnected with 755RFB2 to create a complete system with 240V alarms. New stylish low profile design blends into any décor.

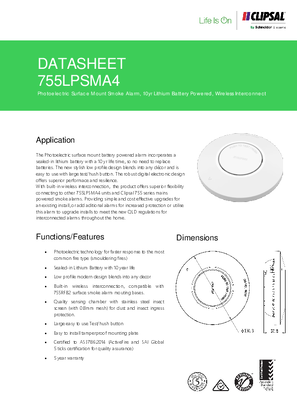

Datasheet
Specifications
Design
| Range | Fire Tek |
|---|---|
| Product brand | Clipsal |
| Product or component type | smoke detector |
| Device application | early detection of smouldering fires and open fires |
Physical
| Supply | battery |
|---|---|
| [ie] rated operational current | 70 mA |
| Function available | local alarm |
| Control type | button (test/hush function) |
| Operating distance |
|
| Transmission frequency | 433420 kHz |
| Local signalling |
|
| Type of installation | indoor |
| Device mounting | surface |
| Mounting support |
|
| Fixing mode | by screws |
| Depth | 37.5 mm |
| Ip degree of protection | IP20 |
| Ambient air temperature for operation | 0...45 °C |
| Ambient air temperature for storage | -20...60 °C |
| Relative humidity | 5...95 % |
| Product certifications |
|
| Standards |
|
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1907002_V1 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | X |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | thermoplastic |
|---|
Documents & downloads
-
All
-
Product Brochures
-
Other technical guide
-
Installation Instruction
-
End of Life Manual
-
Environmental Disclosure
-

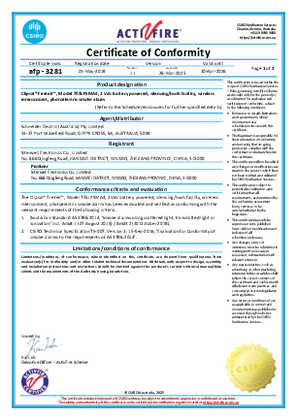

Certificates (MSDS)
-
Declaration of Conformity (Sustainability)
Smoke Alarms - General Information
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
755LPSMA4 Smoke Alarm Instruction Sheet
VERSION
2.0
DATE
29 Sep 2023
REVISION
2.0

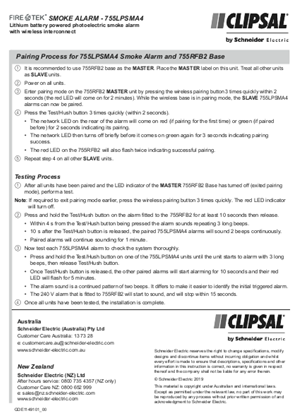

Pairing Process for 755LPSMA4 Smoke Alarm and 755RFB2 Base
VERSION
1.0
DATE
02 Aug 2022
REVISION
1.0
Frequently Asked Questions
What causes the smoke alarm to continuously beep ?
Hide ShowPlease follow the regular maintenance check to avoid this.
Vacuum the smoke alarms using a soft brush attachment-
Keeping your smoke alarm free of dust particles, dirt, kitchen grease or cobwebs will help you reduce false alarms and ensure any smoke can easily reach the internal sensing chamber.
Clean and wipe down around unit-
Clean around the smoke alarm unit and remove any insects or other contamination which may have occurred. Spray bug repellent on a cloth and wipe the ceiling around the smoke alarm to act as a future bug deterrent. Clean every 3-6 months to mitigate insect ingress.
ALWAYS TEST THE SMOKE ALARM AFTER CLEANING.
Attached is the Clipsal smoke alarm troubleshooting guide for more info.
VIDEO - How to Test the Interconnection of a 755LPSMA4 Smoke Alarm?
Hide Show►Learn More: https://www.clipsal.com
VIDEO - How to Interconnect a Smoke Alarm 755LPSMA4?
Hide Show►Learn More: https://www.clipsal.com
How to delete the paired coding on 755LPSMA4 Smoke Alarm?
Hide ShowRemove slave alarm from the bracket before performing the steps below.
- Remove the unit from mounting bracket to power OFF the unit.
- Press and hold Test/Hush button and then install the unit back to mounting bracket to power ON the unit.
- Red LED will light on for 3 seconds. Only release the button after Red LED light is off.
- Red LED will light on for another 3 seconds. During these 3 seconds, briefly press Test/Hush button to delete the coding.
- Red Led will flash for 5 seconds if deleting is successful.
Attached is the installation instructions of 755LPSMA4 for more info.
Can the Wiser smoke alarm interconnect with my existing alarms?
Hide Show
Clipsal Fire Tek Range
Clipsal's Fire Tek range helps protect the most valuable assets; family, friends and the home.
They are backed by the SAI Global 5 ticks certification of quality, offering robust designs for reliability, ensuring early detection and warning from hazardous smoke and fire.
The Australian Building Code mandates all new homes must have AS3786:2014 compliant smoke alarms installed, interconnected and hard wired to mains power.
By having Fire Tek's smoke alarms installed, you will have the best chance of escaping the devastating effects of a house fire.
