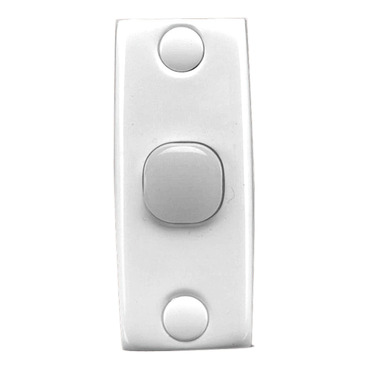

Standard Series Flush Switches Bell Press, Bell Press illuminated

Standard Series Flush Switches Bell Press, Bell Press illuminated | White Electric

Item Number: 98-WE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Physical

Device presentation

basic element

Device mounting

flush

Local signalling

with lighting

Marking

without marking

Actuator

push-button

Eu rohs directive

Under investigation

Others

Package 1 bare product quantity

1

Control button type

push-button

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 weight

0.001 kg
Show all specifications
