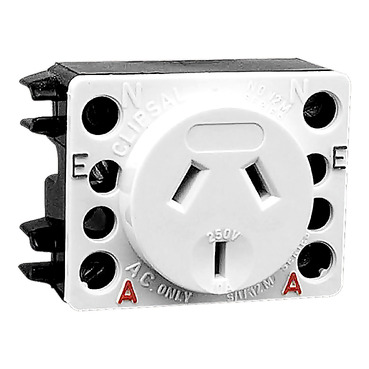

Standard Series Automatic Single Socket Outlet Grey
Item Number: 12M-GY
Discontinued
Retail
N/A
RRP (Inc. GST)
Datasheet

For 12M-GY
Close
Specifications
Design
Range of product
Series 12M
Product or component type
socket-outlet
Product brand
Clipsal
Physical
Quantity per set
set of 1
Marking
without marking
Local signalling
without light indicator
Mounting support
skirt
Fixing mode
by screws
[in] rated current
10 A
[ue] rated operational voltage
250 V AC
Depth
29 mm
Length
63 mm
Width
43 mm
Number of poles
1
Standards
- AS/NZS 3112
- AS 3100
- AS 3109
- AS/NZS 3122:approval number S/1
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
