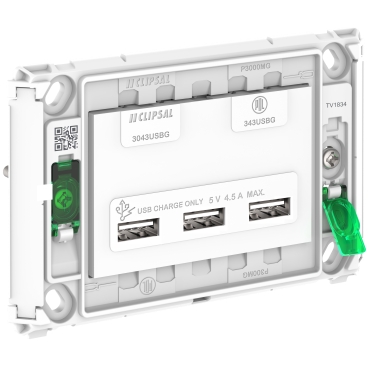

Pro Series USB Charging Station Grid 3 Outlet Type A
Item Number: P3043HUSBG
Close
Charge up to three smart devices at once with the Pro Series 3 Gang USB Type A Charging Station Grid. The grid has three USB Type A outlets, rated to 5V, 4.5A, as well as panels for circuit identification labels, so you can clearly mark which circuit you are working on.
Specifications
Design
| Range | Pro Series |
|---|---|
| Product or component type | USB charger |
| Surface finish |
|
Physical
| [ue] rated operational voltage | 220/240 V AC 50 Hz |
|---|---|
| Integrated connection type | 3 USB 2.0 type A 5 V DC, maximum load current: 2.1 A |
| Output current | 4.5 A |
| Device mounting | flush |
| Device presentation | mechanism with fixing frame |
| Fixing mode | by screws |
| Type of packing | polybag |
| Ambient air temperature for operation | 0...45 °C |
| Ambient air temperature for storage | -5...50 °C |
| Relative humidity | 10...95 % |
| Protection type | short time short-circuit protection |
| Number of terminals | 3 screw terminal |
| Screwdriver shape |
|
| Clamping connection capacity |
|
| Wire stripping length | 16 mm |
| Standards | AS/NZ 3112 |
| Height | 78 mm |
| Width | 38 mm |
| Depth | 38 mm |
| Embedding depth | 35 mm |
| Net weight | 0.094 kg |
| Product certifications | RCM |
| Electrical insulation class | class II |
| Ik degree of protection | IK08 |
| Ip degree of protection | IP21 |
Material
| Material |
|
|---|
