Pro Series Dimmer 40M, Universal, PB, ControlLink, 200W | Extra White
Item Number: P41E300PBUD2SM-XW
Dimmer module with push-button and integrated switch. The dimmer has ControlLink for multi-way control when used with a remote module. 40 Series module. Suitable for Clipsal Pro Series. Colour: Extra White For universal load types including 200W dimmable LED. Operating voltage 230V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.
Datasheet
Close
Specifications
Design
| Range | Pro Series |
|---|---|
| Product or component type | dimmer |
| Surface finish | glossy |
Physical
| Device presentation | mechanism |
|---|---|
| Dimmer type | universal |
| Type of packing | box |
| Load type |
|
| Control type |
|
| Fixing mode | clip-in |
| Ambient air temperature for storage | 0...60 °C |
| [ue] rated operational voltage | 220...240 V AC 50 Hz |
| Function available | brightness adjustment |
| Protection type | short-circuit |
| Ambient air temperature for operation | 0...45 °C |
| Relative humidity | 5...90 % |
| Connections - terminals | screw terminal |
| Clamping connection capacity | 3 x 1.5 mm² |
| Width | 48 mm |
| Depth | 66 mm |
| Embedding depth | 34 mm |
| Environmental disclosure | ENVPEP2108010_V1 |
Documents & downloads
Filter items
-
All
-
Product Brochures
-
Technical Data Catalogues
-
End of Life Manual
-
Environmental Disclosure
-

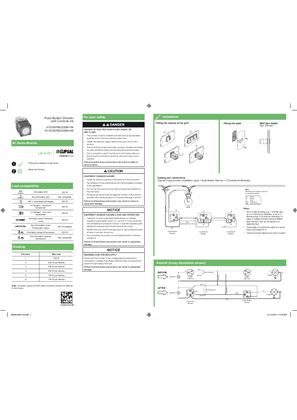

Installation Instruction
-
