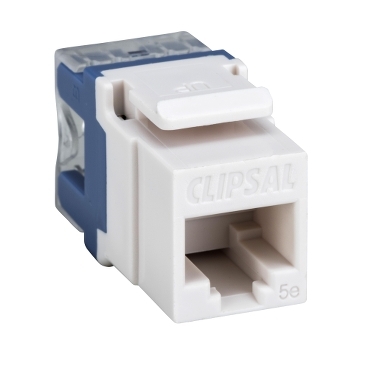

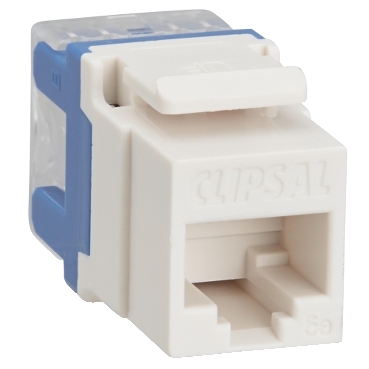

Clipsal Actassi Connector Category 5E, RJ45, Keystone | White Electric
Item Number: RJ45SMA5-WE
Specifications
Design
Product brand
Clipsal
Range of product
Actassi
Product destination
bus system
Physical
Connector type
RJ45
Communication network category
5e
Awg gauge
AWG 24...AWG 22
Depth
36 mm
Width
15 mm
Height
22 mm
Reach free of svhc
Yes
Eu rohs directive
Compliant
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP111057EN
Material
Material
phosphor bronze
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3 cm
Package 1 width
3 cm
Package 1 length
8 cm
Package 1 weight
9.1 g
