30 Series USB Type A Charger 1.5A, 220 to 240V, AC

30 Series USB Type A Charger 1.5A, 220 to 240V, AC | WE

Item Number: 30USBAM-WE

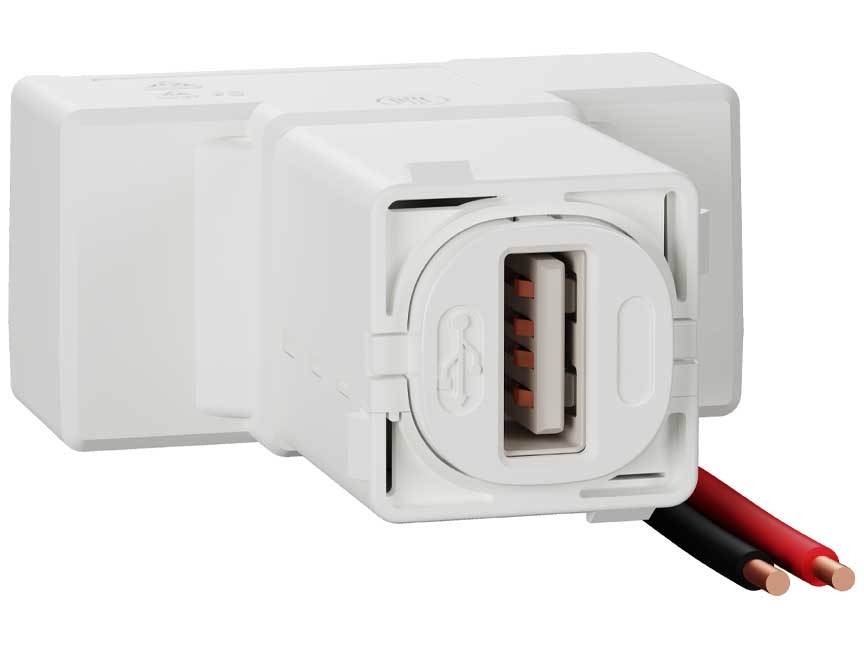

30 Series Type A USB Charger Mechanism with White Cap, 1.5A.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-
30 Series USB Charger

Features

  • The charging mechanism includes a rotating head for any orientation in both horizontal and vertical plates.
  • The 30 Series USB Charger fits into single or double power outlets and can fit into a standard wall box.
  • These energy efficient USB Chargers  use less than 0.07W of power while in standby mode.

Specifications

Design

Range

30 Series

Product brand

Clipsal

Range of product

30 Series

Product or component type

USB charger

Physical

Width

23.1 mm

Height

48 mm

Depth

50.6 mm

Embedding depth

55.6 mm

Eu rohs directive

Under investigation

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

6

Package 3 bare product quantity

48

Main colour tint

white

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4 cm

Package 1 width

7.8 cm

Package 1 length

9.8 cm

Package 1 weight

70 g

Unit type of package 2

BB1

Number of units in package 2

6

Package 2 height

12.7 cm

Package 2 width

10.2 cm

Package 2 length

16.4 cm

Package 2 weight

495 g

Unit type of package 3

CAR

Number of units in package 3

48

Package 3 height

22.4 cm

Package 3 width

26.1 cm

Package 3 length

33.5 cm

Package 3 weight

4.35 kg
