Clipsal - Lighting Batten Tough LED 600mm, IP54, CCT 3K/4K/6K

Clipsal - Lighting Batten Tough LED 600mm, IP54, CCT 3K/4K/6K

Item Number: CLITPTUFF1

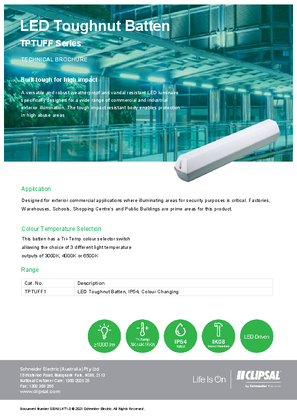

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal

Product or component type

batten light

Device application

lighting

Colour

grey and white

Physical

Type of installation

outdoor

[ue] rated operational voltage

240 V AC 50 Hz

Mounting mode

ceiling

Electrical insulation class

class II

Height

115 mm

Width

96 mm

Length

675 mm

Net weight

1.6 kg

Ip degree of protection

IP54

Ik degree of protection

IK08

Relative humidity

10...95 %

Ambient air temperature for operation

-10...45 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2305021EN

Circularity profile

ENVEOLI2305021EN

Others

Package 1 bare product quantity

1

Commercial status history

  • SESA301466
  • Tue Dec 10 08:01:00 EST 2024
  • From Import Local
  • From 08 to 19

Product name

TPWP Series

Operational power in w

12 W

Colour rendering index

Ra=80

Luminous flux

1000 lm

Bulb lifespan

30000 h

Colour temperature

  • 3000 K
  • 4000 K
  • 6500 K

Light source

LED

Shape

rectangular

Targeted country

Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

12.5 cm

Package 1 width

9.4 cm

Package 1 length

68.0 cm

Package 1 weight

1.5 kg

Unit type of package 2

BB1

Number of units in package 2

6

Package 2 height

40.5 cm

Package 2 width

21.5 cm

Package 2 length

69.5 cm

Package 2 weight

10.0 kg

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Global warming ; total life cycle​

13 kg CO2 eq.

Carbon footprint (kg.eq.co2 per cr, total life cycle)

12.6100134646283

Minimum percentage of recycled plastic content

0
