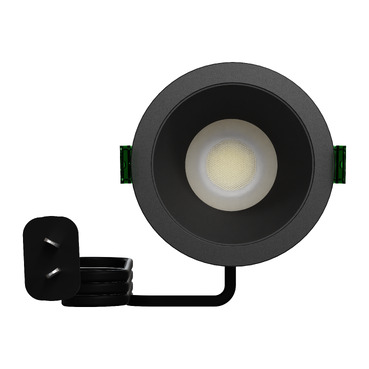

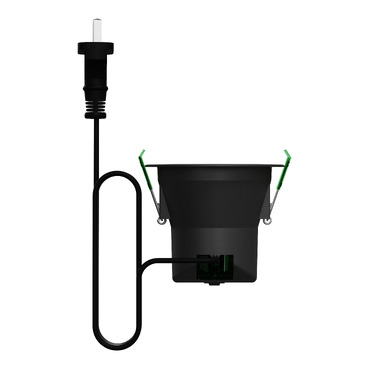

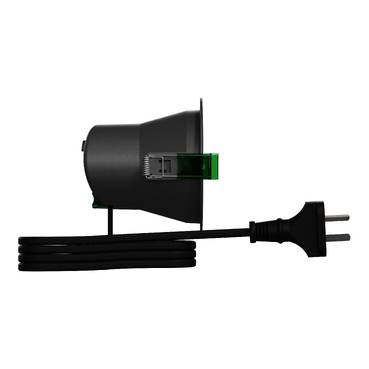

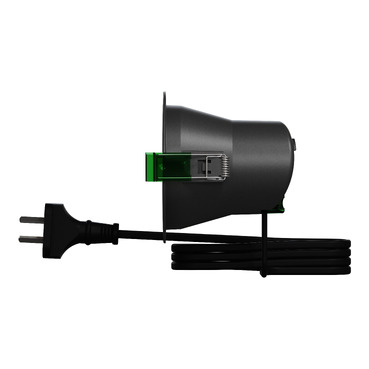

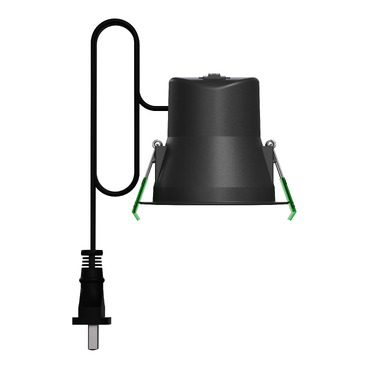

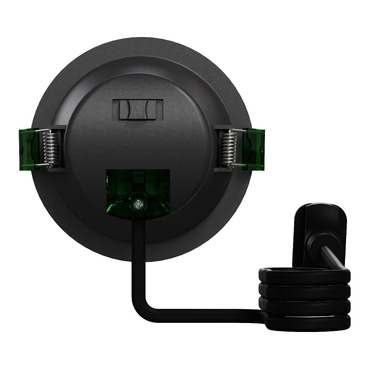

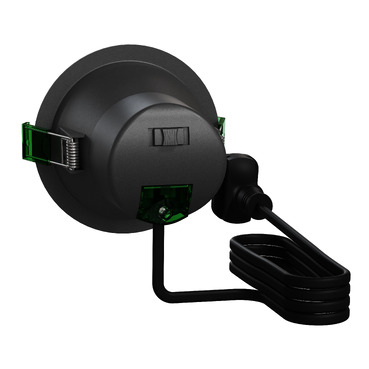

Clipsal - Lighting Downlight 750lm, recessed low glare, black

Clipsal - Lighting Downlight 750lm, recessed low glare, black

Item Number: CLITPDLLGBK

Datasheet

Product Dimensions

Width icon

Width103 mm

Height icon

Height86 mm

Depth icon

Depth86 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal

Product or component type

downlight

Market segment

residential

Colour tint

black

Warranty

3 Years

Physical

Device mounting

ceiling

Rated power in w

7 W

[ue] rated operational voltage

230/240 V AC 50 Hz

Width

103 mm

Height

86 mm

Depth

86 mm

Net weight

190 g

Ip degree of protection

IP44

Ik degree of protection

IK02

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP2408021EN

Circularity profile

ENVEOLI2408021EN

Others

Commercial status history

  • SESA65076
  • Fri Nov 15 01:46:00 EST 2024
  • From Unitary Local
  • From 02 to 08

Package 1 bare product quantity

1

Package 2 bare product quantity

20

Package 3 bare product quantity

640

Main colour tint

black

Light source

LED

Luminous flux

  • 800 lm 3000 K
  • 800 lm 4000 K
  • 800 lm 6000 K

Colour rendering index

Ra=80

Bulb lifespan

35000 h

Beam angle

60 °

Cut-out dimensions

90 mm

Targeted country

Australia

Insulation contact rating

IC-4

Unified glare rating

< 22

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

10 cm

Package 1 width

11 cm

Package 1 length

11 cm

Package 1 weight

283 g

Unit type of package 2

CAR

Number of units in package 2

20

Package 2 height

23.3 cm

Package 2 width

24.2 cm

Package 2 length

57.9 cm

Package 2 weight

6.141 kg

Unit type of package 3

PAL

Number of units in package 3

640

Package 3 height

110 cm

Package 3 width

114 cm

Package 3 length

114 cm

Package 3 weight

210.512 kg

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Halogen content performance

Halogen free plastic parts product

Halogen content performance

Halogen free plastic parts product

Take-back

N/A

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

5.67665439837122

Global warming ; total life cycle​

6 kg CO2 eq.

Minimum percentage of recycled plastic content

0
Show all specifications
