TeSys GV4 Voltage release TeSys GV4, MX coil, 48VAC/DC

Home ProductsIndustrialTeSysVoltage release

TeSys GV4 Voltage release TeSys GV4, MX coil, 48VAC/DC

Item Number: GV4AS057

TeSys GV electrical trip unit, MX shunt trip, 48V AC 50Hz/60Hz or 48V DC, for motor circuit breakers GV4. It trips the circuit breaker when the control voltage is applied in limits 0.7-1.1 Uc with an impulse duration greater than 20ms or a maintained signal. To be plugged inside the circuit breaker, connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC),

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

TeSys

Product or component type

voltage release

Device application

control

Physical

Range compatibility

  • TeSys TeSys GV4
  • TeSys TeSys BV4

Mounting mode

internal mounting

Mechanical durability

20000 cycles

Connections - terminals

spring terminals 1 0.5-1.5 mm² - cable stiffness: flexible without cable end

Wire stripping length

8 mm

Quantity per set

set of 1

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2311043EN

Circularity profile

ENVEOLI2311043EN

California proposition 65

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Device short name

MX

Voltage release type

shunt trip release

[uc] control circuit voltage

  • 48 V AC 50/60 Hz
  • 48 V DC

[ui] rated insulation voltage

48 V conforming to IEC 60947-1

Threshold tripping voltage

  • 0.7...1.1 Un failsafe opening
  • < 0.7 Un possible opening

Impulse duration

>= 20 ms

Maximum inrush power in va

6 VA

Maximum inrush power in w

4 W

Maximum hold-in power consumption in va

10 VA

Maximum hold-in power consumption in w

1 W

Operating time

< 50 ms

Unit type of package 1

PCE

Number of units in package 1

1

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • End of Life Manual

  • Environmental Disclosure

  • Installation Instruction

  • Operating Manuals

  • Certificates (MSDS)

  • Declaration of Conformity

Shunt trip MX AC/DC for TeSys GV4/BV4 - 3D CAD
ZIP

Shunt trip MX AC/DC for TeSys GV4/BV4 - 3D CAD

VERSION

1.0

DATE

30 Nov 2021

REVISION

1.0

DOWNLOAD (ZIP) 811.7 KB
TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

VERSION

16.0

DATE

18 Apr 2025

REVISION

16.0

DOWNLOAD (ZIP) 83.4 MB
Standard shunt trip release MX, ComPacT NSXm, 250VDC, 220/240VAC 50Hz, 208/240VAC 60Hz, 277VAC 60Hz - End of Life Instructions
ZIP

Standard shunt trip release MX, ComPacT NSXm, 250VDC, 220/240VAC 50Hz, 208/240VAC 60Hz, 277VAC 60Hz - End of Life Instructions

VERSION

1.0

DATE

26 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 328.2 KB
Standard shunt trip release MX, ComPacT NSXm, 250VDC, 220/240VAC 50Hz, 208/240VAC 60Hz, 277VAC 60Hz - Product Environmental Profile
ZIP

Standard shunt trip release MX, ComPacT NSXm, 250VDC, 220/240VAC 50Hz, 208/240VAC 60Hz, 277VAC 60Hz - Product Environmental Profile

VERSION

1.0

DATE

26 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 345.3 KB

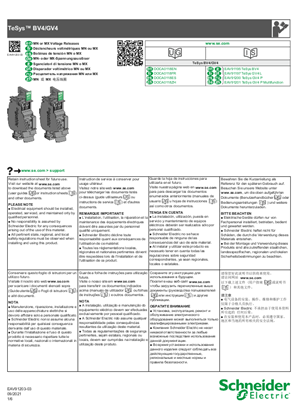

TeSys BV4/GV4 - MN or MX Voltage Releases - Instruction Sheet
ZIP

TeSys BV4/GV4 - MN or MX Voltage Releases - Instruction Sheet

VERSION

2.0

DATE

02 Aug 2022

REVISION

2.0

DOWNLOAD (ZIP) 11.1 MB
TeSys GV4PEM / GV4PB - Motor Protection Devices - User Guide
ZIP

TeSys GV4PEM / GV4PB - Motor Protection Devices - User Guide

VERSION

2.0

DATE

20 Mar 2025

REVISION

2.0

DOWNLOAD (ZIP) 2.4 MB

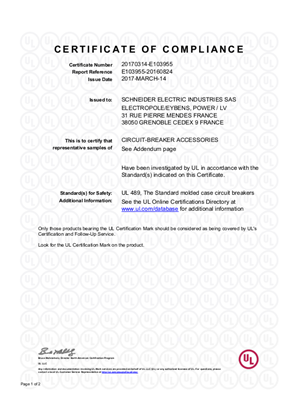

UL_Certificate_TeSys GV4 Accessories
ZIP

UL_Certificate_TeSys GV4 Accessories

VERSION

1.0

DATE

29 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 371.7 KB

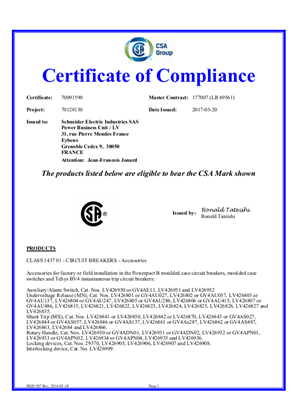

CSA Certificate_ TeSys GV4P-accessories
