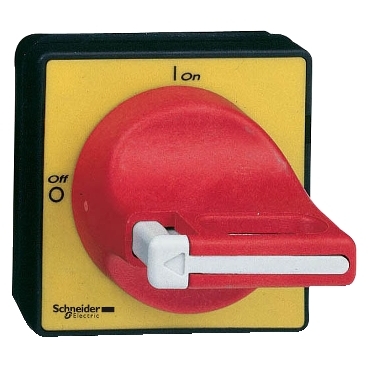

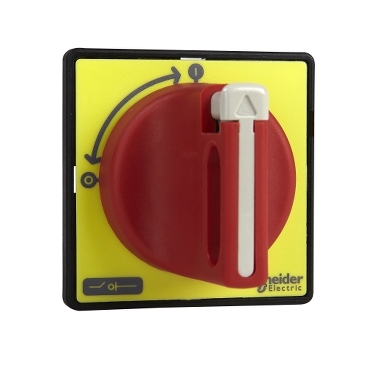

TeSys Mini-Vario, front and red rotary handle, 1 to 3 padlocking

Home ProductsIndustrialTeSysfront and red rotary handle

TeSys Mini-Vario, front and red rotary handle, 1 to 3 padlocking

Item Number: KCF1PZ

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

TeSys

Product or component type

rotary handle

Product compatibility

VN20|V02...V2|VN12

Warranty

18 months

Physical

Marking

0 - 1

Fixing mode

by 4 screws

Height

60 mm

Width

60 mm

Net weight

0.075 kg

Ip degree of protection

IP65

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

X

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2211006

Circularity profile

N/A

California proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Package 2 bare product quantity

45

Package 3 bare product quantity

360

Device short name

KCF1

Handle colour

red

Handle front plate colour

yellow

Rotary handle padlocking

1 to 3 padlocks 4-8 mm

Base dimension

60 x 60 mm

Compatibility code

switch operator

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.000 cm

Package 1 width

7.000 cm

Package 1 length

8.200 cm

Package 1 weight

69.000 g

Unit type of package 2

S03

Number of units in package 2

45

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

3.682 kg

Unit type of package 3

P06

Number of units in package 3

360

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

39.044 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0.6609118222470654
