TeSys Mini-Vario Door Interlock set of 5

Home ProductsIndustrialTeSysDoor Interlock

TeSys Mini-Vario Door Interlock set of 5

Item Number: KZ32

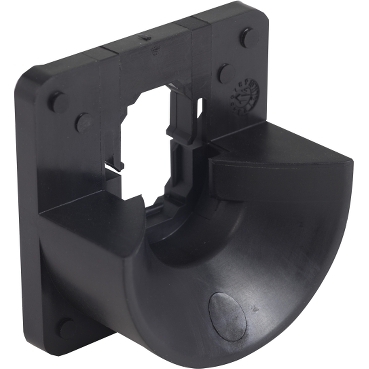

TeSys Vario door mounting accessory, for mini-Vario and Vario switch-disconnectors. Interlock plate prohibiting an enclosure door to be opened when the switch-disconnector is in ON position. It accommodates handles for VN12, VN20, and V02 to V2 switch bodies. Sold in lots of 5 units.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

TeSys

Product or component type

door interlock

Product compatibility

  • V0
  • VN20
  • V2
  • V01
  • V02
  • VN12
  • V1

Warranty

18 months

Physical

Net weight

10 g

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2211006

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

California proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

5

Package 3 bare product quantity

150

Package 4 bare product quantity

1200

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Device short name

KZ

Accessory / separate part category

locking accessories

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.300 cm

Package 1 width

6.000 cm

Package 1 length

6.000 cm

Package 1 weight

34.000 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

4.000 cm

Package 2 width

14.000 cm

Package 2 length

18.000 cm

Package 2 weight

174.000 g

Unit type of package 3

S03

Number of units in package 3

150

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

5.600 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

29 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.0631683460336542

Carbon footprint of the manufacturing phase [a1 to a3]

0.1 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0019486676772601536

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0008767746976567308

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

28.971796700100345

Carbon footprint of the use phase [b2, b3, b4, b6]

29 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.02651844302716203

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

29.06430893153608

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
