TeSys Mini-Vario Additional earthing block 80A, for V3 / V4

Home ProductsIndustrialTeSysAdditional earthing block

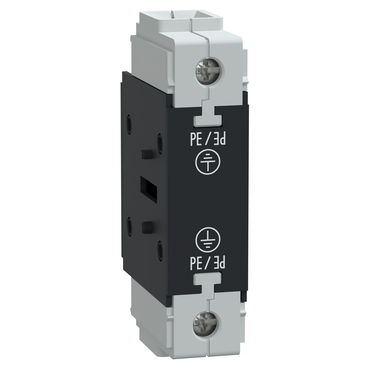

TeSys Mini-Vario Additional earthing block 80A, for V3 / V4

Item Number: VZ15

TeSys Vario add-on module, earthing module 63-80A 690V, for TeSys Vario switch-disconnector. To be used with V3 and V4 switch bodies. Multi standards certified (IEC, UL, CSA, CCC, EAC),

Where To Buy

Datasheet

PDF datasheet

Download

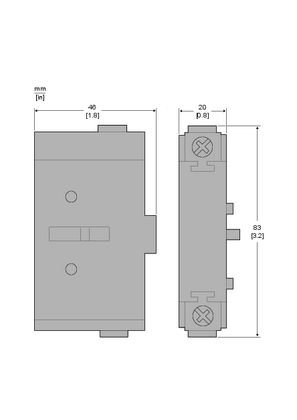

Product Dimensions

Width icon

Width20 mm

Height icon

Height83 mm

Depth icon

Depth46 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

TeSys

Product or component type

additional earthing block

Product compatibility

  • V3
  • V4

Warranty

18 months

Physical

[ue] rated operational voltage

690 V AC 50/60 Hz

Connections - terminals

screw clamp terminals

Height

83 mm

Width

20 mm

Depth

46 mm

Net weight

0.1 kg

Standards

IEC 60947-3

Product certifications

  • UL
  • CSA
  • GL
  • UKCA

Ip degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-20...50 °C

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2211001

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Legacy weee scope

In

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

At least in Europe

Device short name

VZ

Performance level

high performance

Contacts type and composition

without

Network type

  • DC
  • AC

Network frequency

50/60 Hz

Mounting location

  • left
  • right

[uimp] rated impulse withstand voltage

6 kV

[ith] conventional free air thermal current

80 A

Compatibility code

earthing module

Protective treatment

TC

Mechanical robustness

  • vibrations 10...150 Hz (5 gn) conforming to IEC 60068-2-6
  • shocks 11 ms (15 gn) conforming to IEC 60068-2-27

Fire resistance

960 °C conforming to IEC 60695-2-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.5 cm

Package 1 width

3.7 cm

Package 1 length

9.0 cm

Package 1 weight

79.0 g

Unit type of package 2

S02

Number of units in package 2

69

Package 2 height

15.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

5.758 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

1 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.341402027027027

Carbon footprint of the manufacturing phase [a1 to a3]

0.3 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.007846013513513512

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.02661486486486486

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0.4993700000000001

Carbon footprint of the use phase [b2, b3, b4, b6]

0.5 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.13483783783783782

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

1.0100707432432432

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

65661eb0-9ea7-4d52-b0a4-16b981f28f63

End of life manual availability

N/A

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
