TeSys Mini-Vario Additional earthing block 175A, for V5 / V6

Home ProductsIndustrialTeSysAdditional earthing block

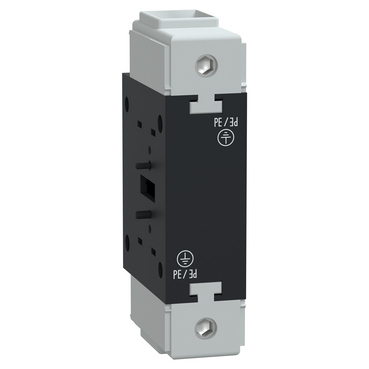

TeSys Mini-Vario Additional earthing block 175A, for V5 / V6

Item Number: VZ16

TeSys Vario add-on module, earthing module 125-175A 690V, for TeSys Vario switch-disconnector. To be used with V5 and V6 switch bodies. Multi standards certified (IEC, UL, CSA, CCC, EAC),

Where To Buy

Datasheet

PDF datasheet

Download

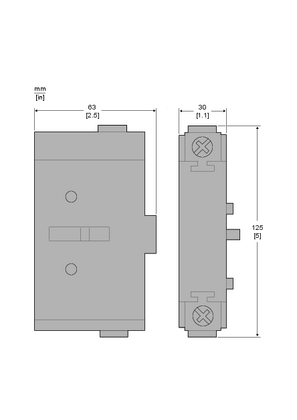

Product Dimensions

Width icon

Width30 mm

Height icon

Height125 mm

Depth icon

Depth63 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

TeSys

Product or component type

additional earthing block

Product compatibility

  • V5
  • V6

Warranty

18 months

Physical

[ue] rated operational voltage

690 V AC 50/60 Hz

Connections - terminals

screw clamp terminals

Height

125 mm

Width

30 mm

Depth

63 mm

Net weight

0.25 kg

Standards

IEC 60947-3

Product certifications

  • GL
  • CSA
  • UL
  • UKCA

Ip degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-20...50 °C

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2211001

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Legacy weee scope

In

At least in Europe

Average percentage of recycled plastic content

0 %

Package 2 bare product quantity

30

Package 1 bare product quantity

1

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

VZ

Performance level

high performance

Contacts type and composition

without

Network type

  • AC
  • DC

Network frequency

50/60 Hz

Mounting location

  • left
  • right

[uimp] rated impulse withstand voltage

6 kV

[ith] conventional free air thermal current

175 A

Compatibility code

earthing module

Protective treatment

TC

Mechanical robustness

  • vibrations 10...150 Hz (5 gn) conforming to IEC 60068-2-6
  • shocks 11 ms (15 gn) conforming to IEC 60068-2-27

Fire resistance

960 °C conforming to IEC 60695-2-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.000 cm

Package 1 width

8.600 cm

Package 1 length

14.600 cm

Package 1 weight

244.000 g

Unit type of package 2

S03

Number of units in package 2

30

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

7.841 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

1 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.341402027027027

Carbon footprint of the manufacturing phase [a1 to a3]

0.3 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.007846013513513512

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.02661486486486486

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0.4993700000000001

Carbon footprint of the use phase [b2, b3, b4, b6]

0.5 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.13483783783783782

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

Pvc free

Yes

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

1.0100707432432432

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

e8ec339b-85c3-4216-bd7f-79794a93ade1

Pvc free

Yes

End of life manual availability

N/A

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
