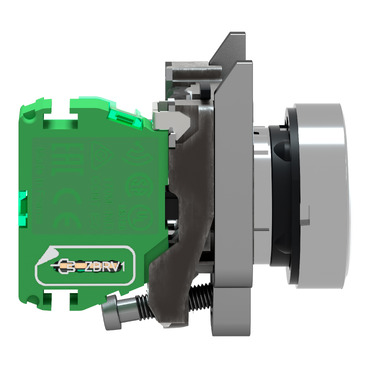

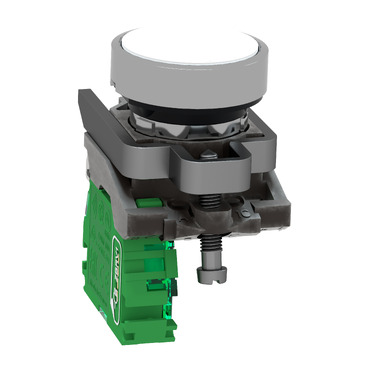

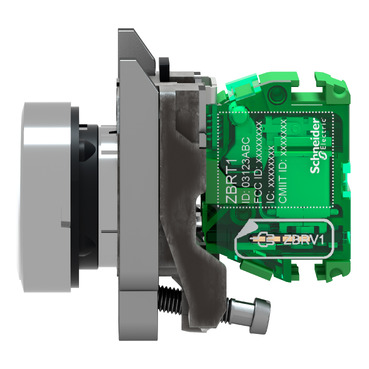

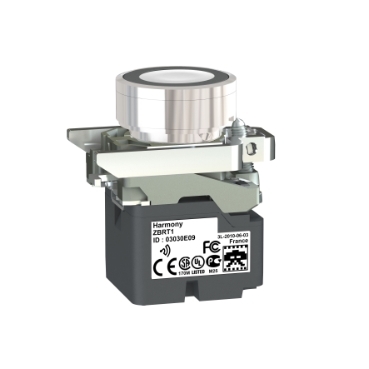

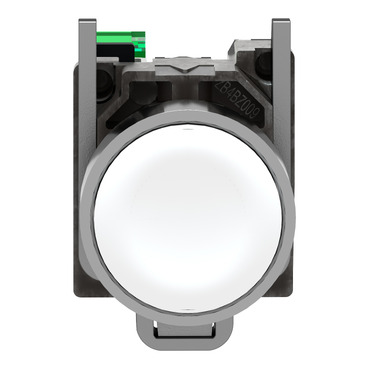

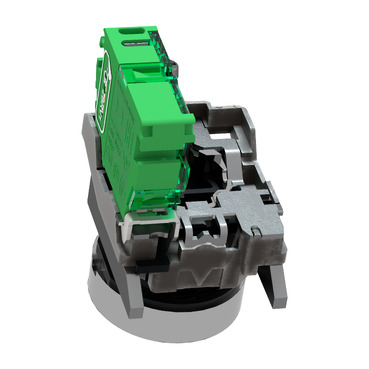

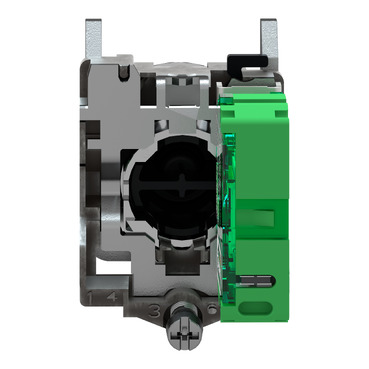

Harmony XB5R Wireless and batteryless transmitter push-button, metal, white, 22mm, spring return

Item Number: ZB4RTA1

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480334481	-

Specifications

Design

Range of product	Harmony XB5
Product or component type	wireless and batteryless transmitter

Physical

Transmission frequency	2405 MHz
Number of channels	16
Embedding depth	42 mm
Net weight	0.045 kg
Standards	CSA C22.2 No 14 IEC 60947-1 IEC 60947-5-1 UL 508
Communication port protocol	Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4
Fixing mode	fixing screw beneath head: 0.8-1.2 N.m
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-40...70 °C
Relative humidity	95 % at -40...70 °C without condensation
Ip degree of protection	IP66 (front face) conforming to IEC 60529 IP67 (front face) conforming to IEC 60529 IP69 (front face) conforming to IEC 60529 IP69K (front face) conforming to IEC 60529
Ik degree of protection	IK03 conforming to IEC 50102
Mechanical durability	1000000 cycles
Product certifications	CSA UL BT 2006/95/EC GOST C-Tick
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP101106EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	In
Package 3 bare product quantity	1120
Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	35
Package 1 bare product quantity	1
	At least in Europe
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	XB5R
Bezel material	chromium plated metal
Fixing collar material	zamak
Mounting diameter	22 mm
Level or class	5M00G7W
Antenna type	omnidirectional
Shape of signaling unit head	round
Type of operator	spring return push-button with transmitter
Operator profile	white flush
Max power consumption in w	1 mW
Modulation technique	O-QPSK
Bandwidth	5 MHz
Antenna gain	0 dBi
Cad overall height	41.5 mm
Cad overall width	30 mm
Cad overall depth	43 mm
Operating travel	4.3 mm (total travel)
Operating force	10 N C/O changing electrical state
Mechanical robustness	free fall resistance 1000 mm conforming to IEC 60068-2-32
Radio agreement	ANATEL ARIB T66 FCC ICASA RSS
Maximum sensing distance	100 m in free field 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Acquisition time	2 ms
Response time	< 2 ms
Emission power	3 mW
Electrical composition code	PW1
Customizable	no
Customizable	0
Protective treatment	TH
Shock resistance	25 gn (duration = 6 ms) for 6000 shocks conforming to IEC 60068-2-27 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Vibration resistance	5 gn (f= 11-500 Hz) conforming to IEC 60068-2-6 +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6
Electromagnetic compatibility	electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3 susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
Directives	2004/108/EC - electromagnetic compatibility 1999/5/EC - R&TTE directive
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.300 cm
Package 1 width	5.500 cm
Package 1 length	9.000 cm
Package 1 weight	93.000 g
Unit type of package 2	S01
Number of units in package 2	35
Package 2 height	15 cm
Package 2 width	15 cm
Package 2 length	40 cm
Package 2 weight	3.455 kg
Unit type of package 3	P06
Number of units in package 3	1120
Package 3 height	75.000 cm
Package 3 width	80.000 cm
Package 3 length	60.000 cm
Package 3 weight	118.560 kg
Product repair index - dam document id	XB4BS8442-ENVREPAIR-A-EN
Total lifecycle carbon footprint	32 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.8406101333
Carbon footprint of the manufacturing phase [a1 to a3]	0.8 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.014515392
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0024547072
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	31.0418797733
Carbon footprint of the use phase [b2, b3, b4, b6]	31 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.0459465173
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Product repair index	A
Removable battery	N/A
Total lifecycle carbon footprint	31.9454065232
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	e1d47e89-a4e1-4f33-a0c0-2fe5c9179aa4
Product repair index	A
End of life manual availability	ENVEOLI1103010EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
