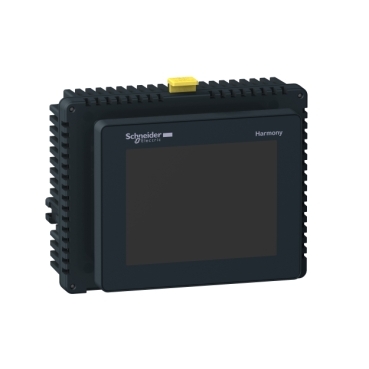

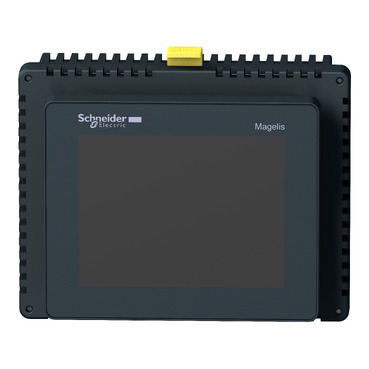

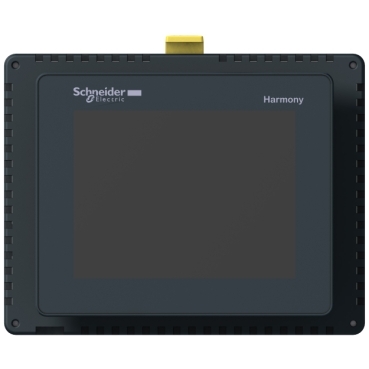

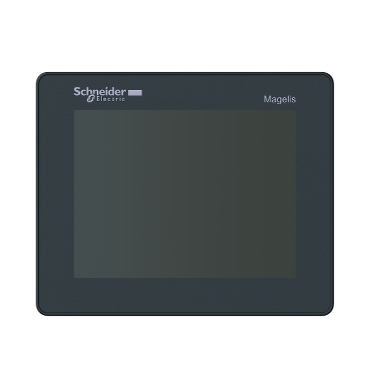

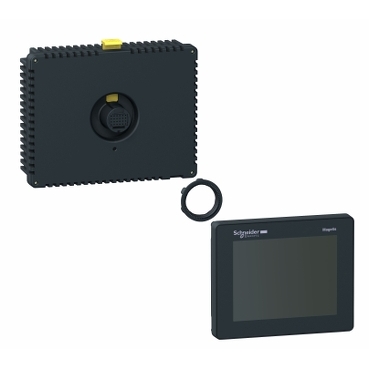

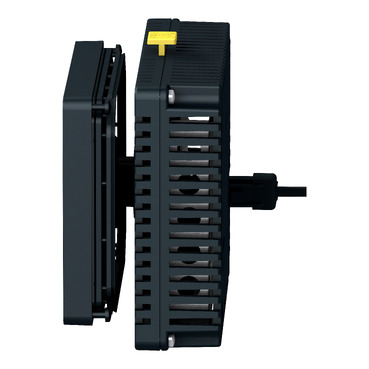

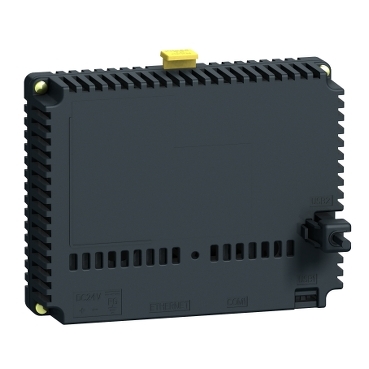

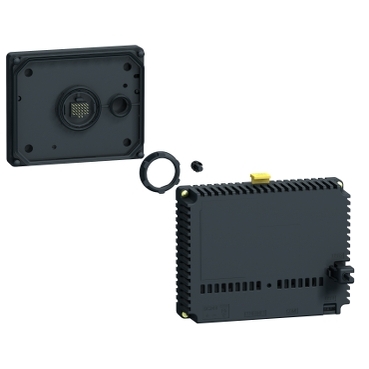

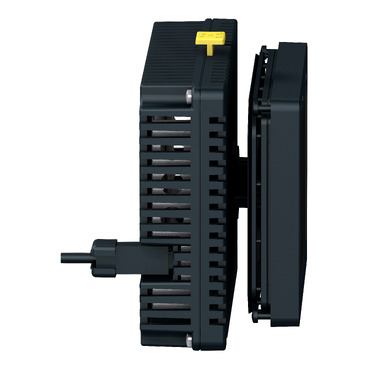

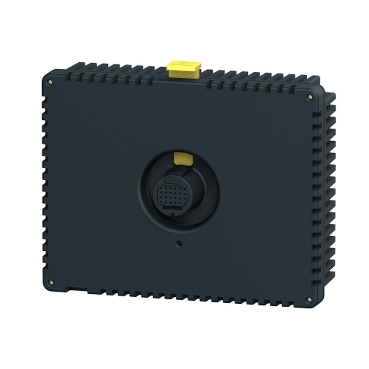

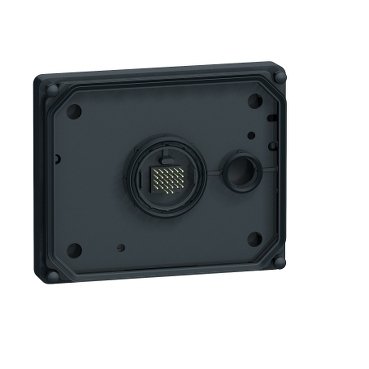

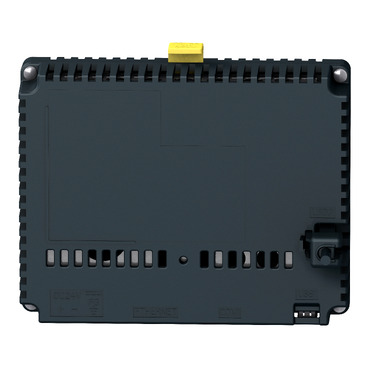

Harmony STO & STU, Touch panel screen, 3''5 Color

Item Number: HMISTU655

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width118 mm

Height98.15 mm

Depth55.3 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3595864094038	-

Specifications

Design

Range of product

Harmony STO & STU

Product or component type

touch panel screen

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Supply

external source

Inrush current

30 A

Power consumption in w

6.5 W

Integrated connection type

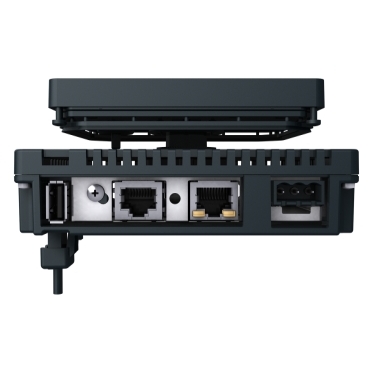

1 USB 2.0 type mini B|1 USB 2.0 type A| COM1 serial link - female RJ45 - RS232C/RS485 (rate: <= 115.2 kbits/s)| power supply - removable screw terminal block| 1 Ethernet - RJ45

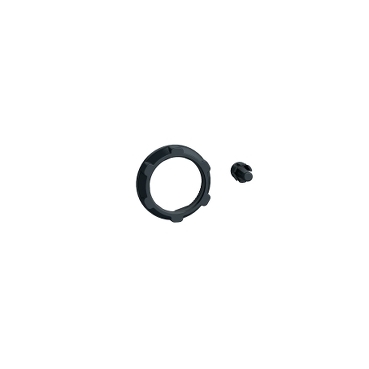

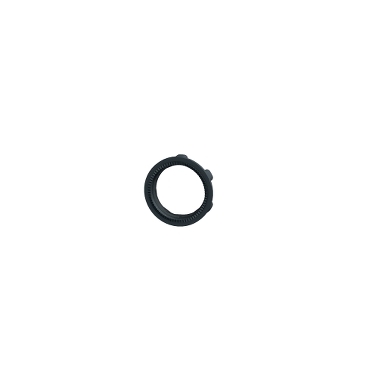

Fixing mode

Ø 22 mm hole

Marking

with Schneider logo|CE

Height

98.15 mm

Width

118 mm

Depth

55.3 mm

Standards

IEC 61000-6-2|IEC 61131-2|UL 1604|UL 508|FCC Class A

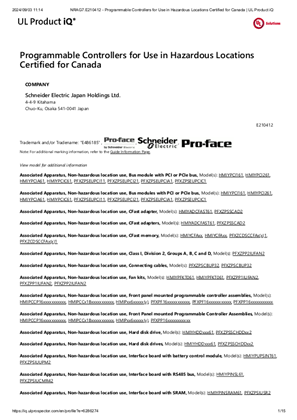

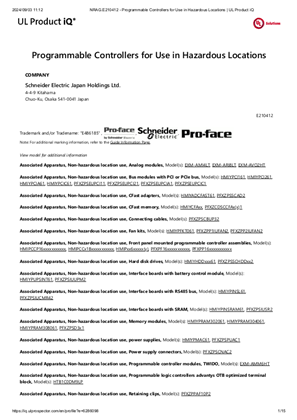

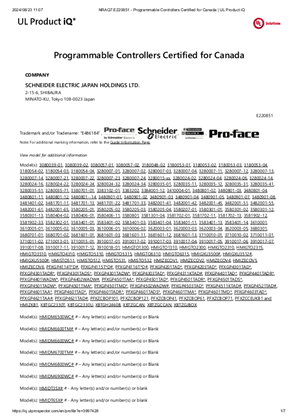

Product certifications

cULus|C-Tick|Marine|UL class 1 Div2 T4A ou T5|UKCA

Ambient air temperature for operation

0...50 °C

Ambient air temperature for storage

-20...60 °C

Relative humidity

0...85 % without condensation

Ip degree of protection

IP20 (rear panel) conforming to IEC 60529|IP65 (front panel) conforming to IEC 60529

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP2101003EN

Circularity profile

ENVEOLI2101003EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

Software designation

Vijeo Designer

Operating system

Harmony

Processor name

CPU ARM9

Display size

3.5 inch

Display type

QVGA TFT colour touchscreen

Display colour

65536 colours

Display resolution

320 x 240 pixels QVGA

Touch panel

analogue

Backlight lifespan

50000 hours

Brightness

16 levels

Character font

Chinese (simplified Chinese)|Japanese (ANK, Kanji)|ASCII|Korean|Taiwanese (traditional Chinese)

[us] rated supply voltage

24 V DC

Supply voltage limits

20.4...28.8 V

Number of pages

limited by internal memory capacity

Processor frequency

333 MHz

Memory description

application memory 16 MB|back up of data 64 kB

Realtime clock

access to the PLC real-time clock

Downloadable protocols

Modbus TCP/IP|Modbus|Uni-TE|third party protocols

Enclosure material

PC/PBT

Immunity to microbreaks

10 ms

Operating altitude

<= 2000 m

Nema degree of protection

NEMA 4X front panel (indoor use)

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance

+/- 3.5 mm (f = 5-9 Hz) conforming to IEC 60068-2-6|1 gn (f = 9-150 Hz) conforming to IEC 60068-2-6

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

7.000 cm

Package 1 width

13.000 cm

Package 1 length

18.500 cm

Package 1 weight

532.000 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

8.999 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Upgradeability

Upgradeable through digital modules and upgraded components

Show all specifications

Documents & downloads

hide show

Colour [NO COLOUR] ()

Harmony STO & STU, Touch panel screen, 3''5 Color

Item Number: HMISTU655

Colour [NO COLOUR] ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Installation Instruction

End of Life Manual

Environmental Disclosure

System User Guide

Operating Manuals

Certificates (MSDS)

Declaration of Conformity

eTechPub

Micro HMI controller and screen Magelis SCU - 3D CAD

Discover Harmony STO and STU Catalog: Compact color HMI panels - EN

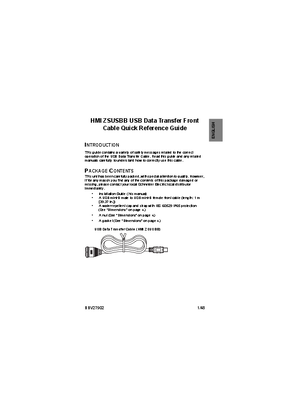

HMIZSUSBB USB Data Transfer Front Cable

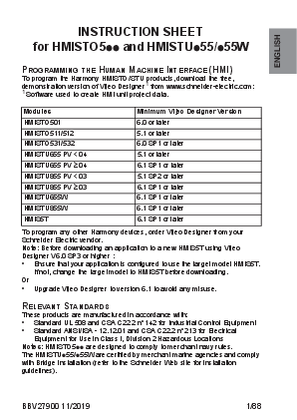

HMISTO5.. and HMISTU.55, HMISTU.55W Small Panels, Instruction Sheet

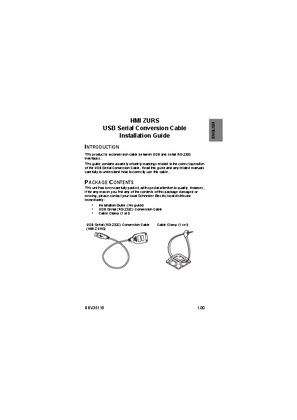

HMIZURS USB Serial Conversion Cable

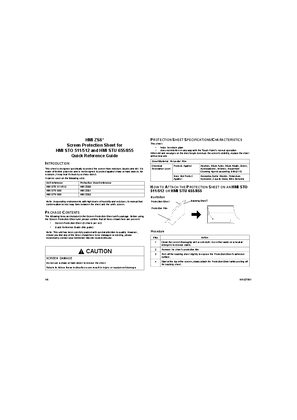

HMIZS6. Screen Protection Sheet

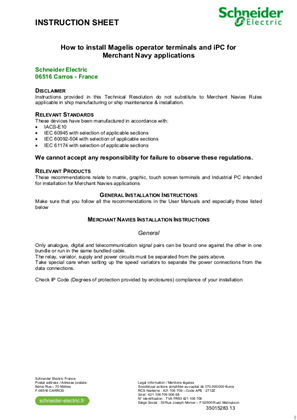

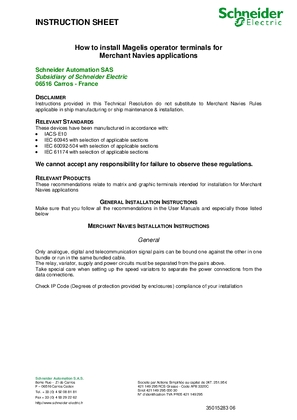

How to Install Magelis Operator Terminals for Merchant Navies Applications, Instruction Sheet

TM258PAK02 Starter Pack Content

TM238PAK01 Starter Pack Content

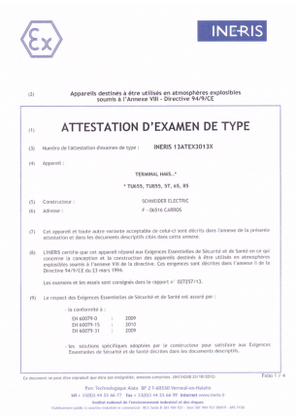

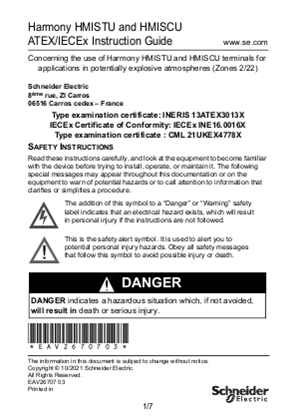

Harmony HMISTU and HMISCU Terminals ATEX/IECEx, Instruction Guide

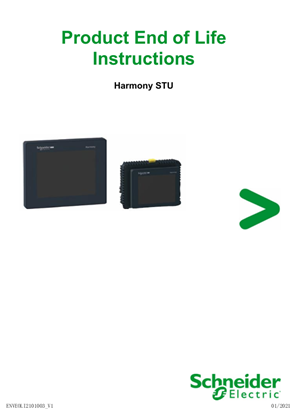

Harmony STU, Product End-of-Life Instructions

Harmony STU, Product Environmental Profile

Compact Hardwired Logic Controller M241, System User Guide

Compact Hardwired Logic Controller M221, System User Guide

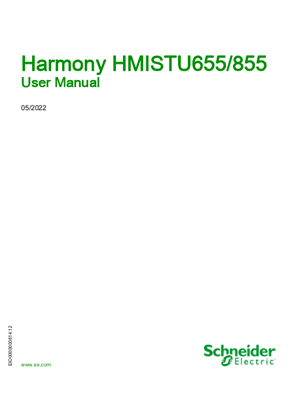

Harmony HMISTU655 / 855, User Manual

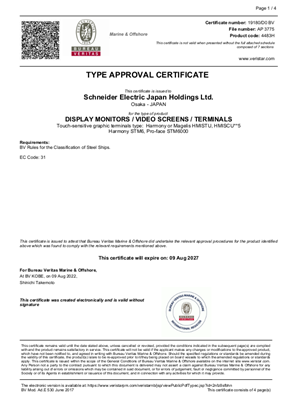

BV_Marine_Certificate_STU_SCU

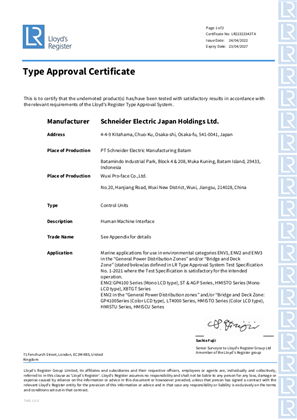

LR_Marine Certificate_HMIGTO_STO_STU_SCU_XBTGT

Harmony, HMIGTO, HMISTO, HMISCU, HMISTU, Certificate, IACS, LR, Marine

Harmony, HMISTU, HMISCU, HMISTM6, Certificate, IACS, DNV, Marine

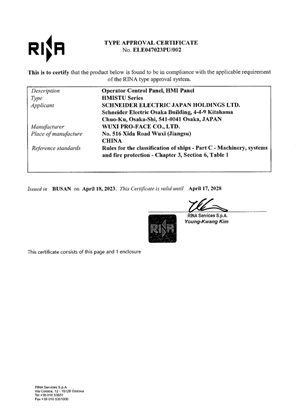

Harmony, HMISTU, Certificate, IACS, RINA, Marine

STU DCC Jan 2010

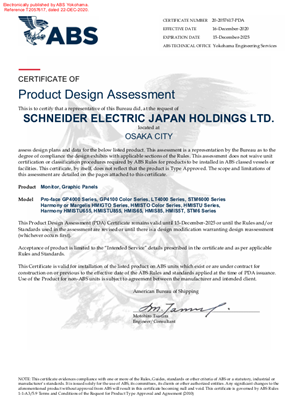

Harmony, HMIGTO, HMISTO, HMISCU, HMISTM, Certificate, IACS, ABS, Marine

Harmony, HMI, Certificate, Merchant Navy Instruction Sheet

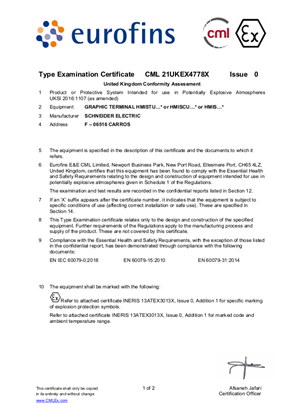

UKEX_HMISTU_SCU

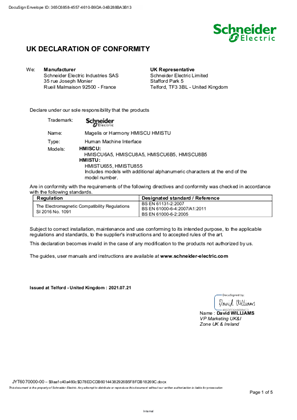

Harmony, HMISTO, Declaration of Conformity, UKCA, Schneider Electric

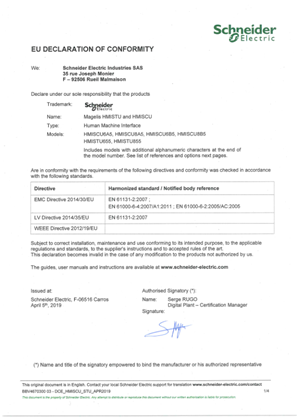

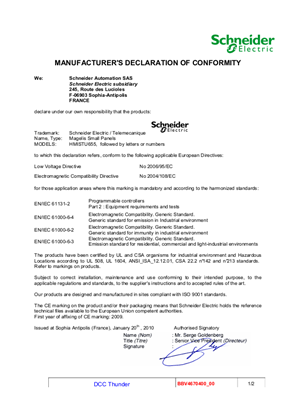

Harmony, HMISCU, HMISTU, Declaration of Conformity, EU CE, Schneider Electric
