Harmony Solid State Relays Solid state panel mount relay 25A, zero voltage switching, thermal pad, input 18…36 V AC, output 48…530 V AC

Item Number: SSP3A225B7T

1 PCE 0

Where To Buy

Datasheet

Download

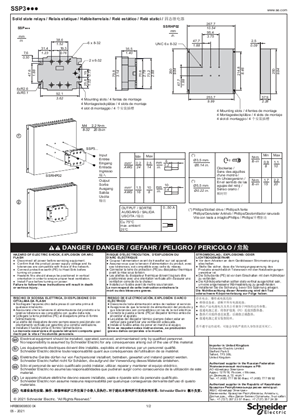

Product Dimensions

Width101.3 mm

Height79.7 mm

Depth35.4 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480579998	-

Specifications

Design

Range of product	Harmony Relay
Product or component type	solid state relay

Physical

Provided equipment	thermal interface
Mounting support	panel
Control type	without test button
Insulation resistance	>= 1000 MOhm at 500 V DC
Connections - terminals	screw terminals: 1 x 0.2...1 x 2.5 mm², (AWG 24...AWG 14) for input screw terminals: 1 x 1.5...1 x 10 mm², (AWG 16...AWG 8) for output
Local signalling	LED, green for input
Ip degree of protection	IP20
Net weight	0.24 kg
Width	101.3 mm
Height	79.7 mm
Depth	35.4 mm
Device presentation	complete product
Ambient air temperature for operation	-40...80 °C
Ambient air temperature for storage	-40...125 °C

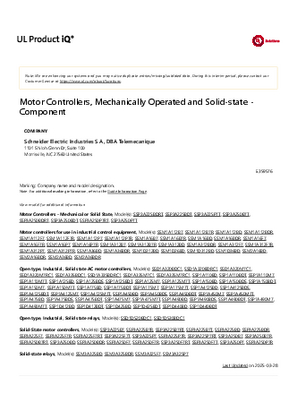

Product certifications	CSA UL

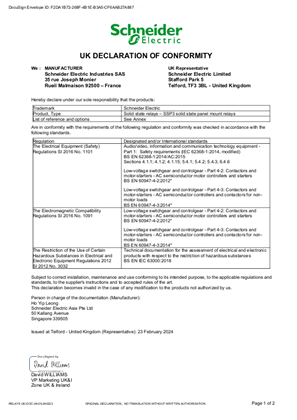

Marking	CE
Standards	IEC 61000 IEC 62314 IEC 60950-1
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1505006EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Legacy weee scope	Out
Device short name	SSP
Network number of phases	3 phases
Contacts type and composition	3 NO
Solid state output type	zero voltage switching
Minimum switching voltage	18 V AC turn-on
Maximum switching voltage	2 V AC turn-off
Response time	20 ms (turn-on) 30 ms (turn-off)
Input current limits	15...20 mA
Load current	0.1...25 A
Absolute maximum voltage	1200 V
Surge current	275 A for 20 ms 300 A for 16.6 ms 85 A for 1 s
Maximum i²t for fusing	380 A².s for 10 ms at 50 Hz 370 A².s for 8.3 ms at 60 Hz
Maximum leakage current	3 mA off-state
Maximum voltage drop	<1.35 V on-state
Dv/dt	500 V/µs off-state at maximum voltage
Cos phi	0.5...0.5 (with maximum load)
Motor power hp	0.75 hp 40 °C 120 V AC 1 hp 40 °C 240 V AC 3 hp 40 °C 480 V AC 4.4 hp 40 °C 530 V AC
Motor power kw	0.56 kW at 40-40 °C 120 V AC 0.74 kW at 40-40 °C 240 V AC 2.22 kW at 40-40 °C 480 V AC 3.24 kW at 40-40 °C 530 V AC
Capacitance unbalance	8 pF for input/output
Dielectric strength	4 kV AC for input/output 4 kV AC for input or output to case
Tightening torque	0.9...1.1 N.m for input 1.7...2.2 N.m for output
Thermal resistance	0.24 °C/W
Flame retardance	V0 conforming to UL 94
Pollution degree	2
Overvoltage category	III
Unit type of package 1	PCE
Number of units in package 1	1
Sustainable packaging	No
Scip number	134201bc-d293-4667-9cca-10a7f11729e0

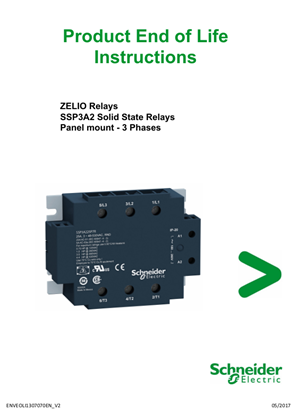

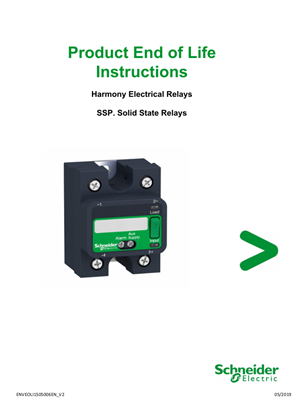

End of life manual availability	ENVEOLI1505006EN
Warranty (in months)	18
