Harmony Solid State Relays Solid state modular relay 6A, zero voltage switching, input 4...32 V DC, output 48…600 V AC

Home ProductsIndustrialHarmonySolid state modular relay

Harmony Solid State Relays Solid state modular relay 6A, zero voltage switching, input 4...32 V DC, output 48…600 V AC

Item Number: SSM2A36BD

Where To Buy

Datasheet

PDF datasheet

Download

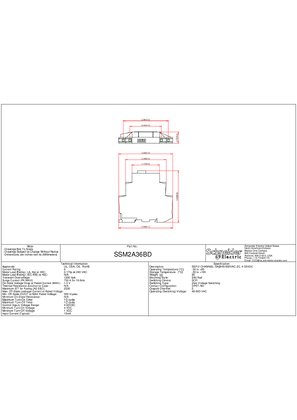

Product Dimensions

Width icon

Width18 mm

Height icon

Height90.3 mm

Depth icon

Depth84.4 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Relay

Product or component type

solid state relay

Physical

Number of channels

2

Mounting support

symmetrical DIN rail

[in] rated current

6 A

Connections - terminals

  • screw terminals: 1 x 0.3...1 x 1.5 mm², (AWG 22...AWG 16) for input
  • screw terminals: 1 x 0.3...1 x 2.5 mm², (AWG 22...AWG 14) for output

Insulation resistance

1000 MOhm at 500 V DC

Local signalling

LED (green) for input status

Width

18 mm

Height

90.3 mm

Depth

84.4 mm

Net weight

0.09 kg

Device presentation

complete product

Standards

  • IEC 62314
  • IEC 60950-1
  • IEC 61000

Product certifications

  • CSA
  • UL

Marking

CE

Ip degree of protection

IP20

Ambient air temperature for operation

-30...80 °C

Ambient air temperature for storage

-30...100 °C

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

China rohs regulation

X

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1307069EN

Circularity profile

ENVEOLI1307069EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

1

Device short name

SSM

Network number of phases

2 phases

Output voltage

48...600 V AC

[uc] control circuit voltage

4...32 V DC

Contacts type and composition

2 NO

Tightening torque

  • 0.5...0.8 N.m for input
  • 0.5...0.8 N.m for output

Capacitance unbalance

10 pF for input/output

Minimum switching voltage

4 V DC turn-on

Maximum switching voltage

1 V DC turn-off

Input current limits

14...16.87 mA

Solid state output type

  • zero voltage switching
  • SCR output

Load current

0.15...6 A

Absolute maximum voltage

1200 V

Surge current

  • 715 A for 16.6 ms
  • 750 A for 20 ms

Maximum voltage drop

<1.3 V on-state

Motor power hp

0.16 hp 40 °C 240 V AC

Maximum i²t for fusing

  • 2560 A².s for 10 ms at 50 Hz
  • 2330 A².s for 8.33 ms at 60 Hz

Maximum leakage current

0.25 mA off-state

Dv/dt

500 V/µs off-state at maximum voltage

Response time

  • 0.5 cycle (turn-on)
  • 0.5 cycle (turn-off)

Cos phi

0.5...0.5 (with maximum load)

Overvoltage category

III

Flame retardance

V0 conforming to UL 94

Dielectric strength

  • 2.5 kV AC for input/output
  • 2.5 kV AC for input or output to case

Pollution degree

2

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.8 cm

Package 1 width

2 cm

Package 1 length

9.3 cm

Package 1 weight

102 g

Scip number

134201bc-d293-4667-9cca-10a7f11729e0
