Harmony Solid State Relays Solid state modular relay 12A, zero voltage switching, input 200…265 V AC, output 48…600 V AC

Home ProductsIndustrialHarmonySolid state modular relay

Harmony Solid State Relays Solid state modular relay 12A, zero voltage switching, input 200…265 V AC, output 48…600 V AC

Item Number: SSM1A312P7

Datasheet

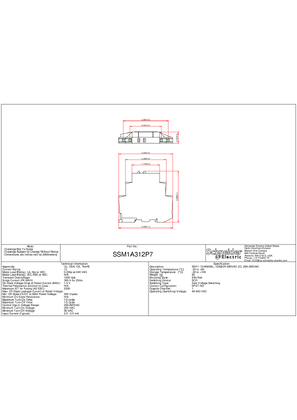

Product Dimensions

Width icon

Width18 mm

Height icon

Height90.3 mm

Depth icon

Depth83.7 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Relay

Product or component type

solid state relay

Physical

Number of channels

1

Mounting support

symmetrical DIN rail

[in] rated current

12 A

Connections - terminals

  • screw terminals: 1 x 0.3...1 x 1.5 mm², (AWG 22...AWG 16) for input
  • screw terminals: 1 x 0.3...1 x 2.5 mm², (AWG 22...AWG 14) for output

Insulation resistance

1000 MOhm at 500 V DC

Local signalling

LED (green) for input status

Width

18 mm

Height

90.3 mm

Depth

83.7 mm

Net weight

0.09 kg

Device presentation

complete product

Standards

  • IEC 61000
  • IEC 62314
  • IEC 60950-1

Product certifications

  • CSA
  • UL

Marking

CE

Ip degree of protection

IP20

Ambient air temperature for operation

-30...80 °C

Ambient air temperature for storage

-30...100 °C

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

China rohs regulation

X

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1307069EN

Circularity profile

ENVEOLI1307069EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Device short name

SSM

Network number of phases

1 phase

Output voltage

48...600 V AC

[uc] control circuit voltage

200...265 V AC

Contacts type and composition

1 NO

Tightening torque

  • 0.5...0.8 N.m for input
  • 0.5...0.8 N.m for output

Capacitance unbalance

10 pF for input/output

Minimum switching voltage

200 V AC turn-on

Maximum switching voltage

90 V AC turn-off

Input current limits

2.5...3.5 mA

Solid state output type

  • zero voltage switching
  • SCR output

Load current

0.15...12 A

Absolute maximum voltage

1200 V

Surge current

  • 715 A for 16.6 ms
  • 750 A for 20 ms

Maximum voltage drop

<1.3 V on-state

Motor power hp

0.33 hp 40 °C 240 V AC

Maximum i²t for fusing

  • 2560 A².s for 10 ms at 50 Hz
  • 2330 A².s for 8.33 ms at 60 Hz

Maximum leakage current

0.2 mA off-state

Dv/dt

500 V/µs off-state at maximum voltage

Response time

  • 0.5 cycle (turn-on)
  • 30 ms (turn-off)

Cos phi

0.5...0.5 (with maximum load)

Overvoltage category

III

Flame retardance

V0 conforming to UL 94

Dielectric strength

  • 4 kV AC for input/output
  • 4 kV AC for input or output to case

Pollution degree

2

Unit type of package 1

PCE

Number of units in package 1

1

Scip number

134201bc-d293-4667-9cca-10a7f11729e0
