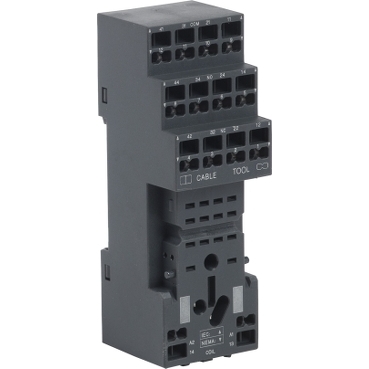

Harmony Electromechanical Relays Socket separate contact, 6/12A, relay type RXM2/RXM4, spring clamp terminal

Item Number: RXZE2S114S

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480566769	-
10	CAR	13606480566766	-

Specifications

Design

Product compatibility	plug-in relay RXM with 2 C/O contact plug-in relay RXM with 4 C/O contact
Range of product	Harmony Relay
Product or component type	socket
Warranty	18 months

Physical

[ue] rated operational voltage	< 250 V AC
Connections - terminals	spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) flexible with cable end spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end
Fixing mode	clip-on (35 mm symmetrical DIN rail)
Sale per indivisible quantity	10
Width	31 mm
Net weight	0.073 kg
Ip degree of protection	IP20 conforming to EN/IEC 60529
Standards	IEC 61984
Product certifications	CSA GOST Lloyd's UL
Marking	CE
Ambient air temperature for storage	-40...85 °C
Ambient air temperature for operation	-40...55 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1511021EN
China rohs regulation	X
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Device short name	RXZ
[ith] conventional free air thermal current	12 A 2 C/O relays 6 A 4 C/O relays
Shape of pin	flat
Group of product	RXM_2-4_C/O_CON_SEP_FLAT
Compatibility code	RXZ
Contact terminal arrangement	separate
Dielectric strength	2500 V
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.65 cm
Package 1 width	3.1 cm
Package 1 length	9.4 cm
Package 1 weight	40 g
Total lifecycle carbon footprint	0.8 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.550516236258659
Carbon footprint of the manufacturing phase [a1 to a3]	0.6 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.05759941682335168
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0004161623388216668
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.1922590721576876
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Total lifecycle carbon footprint	0.8007908875785199
China rohs label	1
End of life manual availability	N/A
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues
Environmental Disclosure
Technical Drawing
Certificates (MSDS)
eTechPub
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

RXZE2S114S_CAD

VERSION

1.0

DATE

06 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.3 MB

ZIP

Socket, separate contact, 6/12 A, relay type RXM2/RXM4, spring clamp terminal

VERSION

1.0

DATE

16 Mar 2022

REVISION

1.0

DOWNLOAD (ZIP) 3.9 MB

ZIP

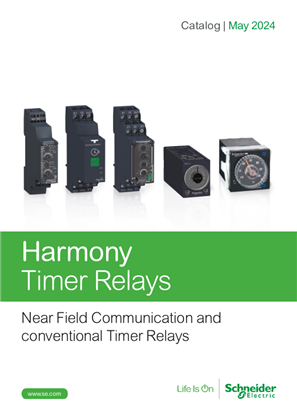

Discover Harmony Timer Relays Catalog - English

VERSION

12.2

DATE

07 Mar 2025

REVISION

12.2

DOWNLOAD (ZIP) 10.6 MB

ZIP

Simple Socket RXZE2-Mixed Contact

VERSION

1.0

DATE

16 Sep 2025

REVISION

1.0

DOWNLOAD (ZIP) 247.3 KB

ZIP

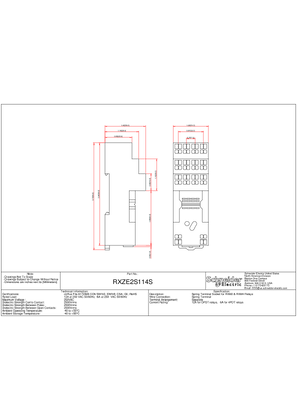

RXZE2S114S_2D_Drwng_PDF

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 17.1 KB

ZIP

CSA Certificate RXZE2S114S

VERSION

1.0

DATE

15 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 210.2 KB

ZIP

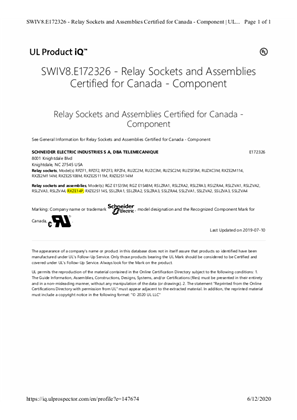

UL Recognized RPZF RUZ RXZE2 RSLZ
