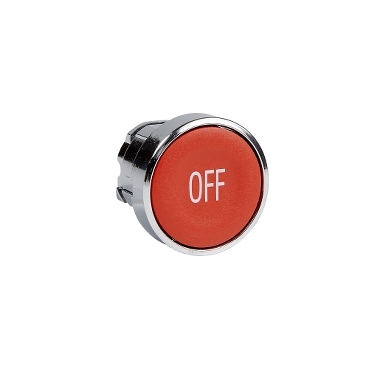

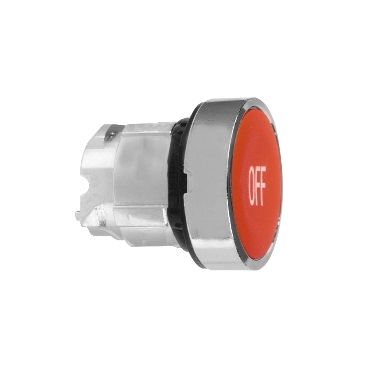

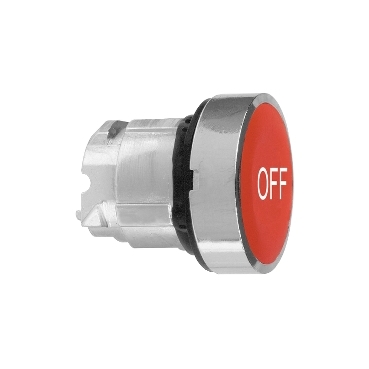

Harmony XB4 Red flush pushbutton head Ø22 spring return "OFF"

Item Number: ZB4BA435

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389110887594	-

Specifications

Design

Range of product

Harmony XB4

Product or component type

head for non-illuminated push-button

Warranty

18 months

Physical

Sale per indivisible quantity

Mechanical durability

10000000 cycles

Marking

OFF

Device presentation

basic element

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP66 conforming to IEC 60529
IP67
IP69
IP69K

Ik degree of protection

IK06 conforming to IEC 50102

Standards

EN/IEC 60947-5-5
EN/IEC 60947-5-1
CSA C22.2 No 14
UL 508
JIS C8201-5-1
EN/IEC 60947-1
EN/IEC 60947-5-4
JIS C8201-1

Product certifications

DNV
BV
CSA
LROS (Lloyds register of shipping)
UL listed
GL

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2308035EN

Circularity profile

ENVEOLI2308035EN

California proposition 65

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Device short name

ZB4

Bezel material

chromium plated metal

Mounting diameter

22 mm

Head type

standard

Shape of signaling unit head

round

Type of operator

spring return

Operator profile

red flush, OFF (white)

Cad overall width

29 mm

Cad overall height

29 mm

Cad overall depth

28 mm

Electrical composition code

C1 for <9 contacts using single blocks in front mounting
C2 for <9 contacts using single and double blocks in front mounting
C11 for <3 contacts using single blocks in front mounting
C15 for <1 contacts using single blocks in front mounting

Main group

push-button

Group of product

flush push with marking

Cap/operator or lens colour

red

Colour of marking

white

Customizable

Compatibility code

ZB4

Protective treatment

Overvoltage category

class I conforming to IEC 60536

Nema degree of protection

NEMA 13
NEMA 4X

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Show all specifications

Documents & downloads

hide show

Colour ()

Harmony XB4 Red flush pushbutton head Ø22 spring return "OFF"

Item Number: ZB4BA435

Colour ()

Datasheet

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

End of Life Manual

Environmental Disclosure

Installation Instruction

Technical illustration

Technical Drawing

Certificates (MSDS)

Declaration of Conformity

eTechPub

ZB4BA435_CAD

Harmony XB4 Non Illuminated Push Button, End Of Life Instructions

Harmony XB4 Non Illuminated Push Button, Product Environmental Profile

XB4.. / XB5... Mounting, Instruction Sheet

ZB4..., ZB5... Mounting XB4 pushbuttons chromium plated metal bezel and XB5 plastic bezel with or without circular yellow legends ZBY9.2., Instruction Sheet (EN)

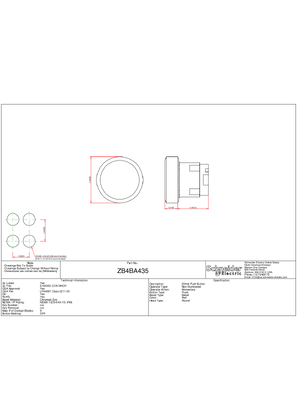

Technical Illustration - Dimensions
