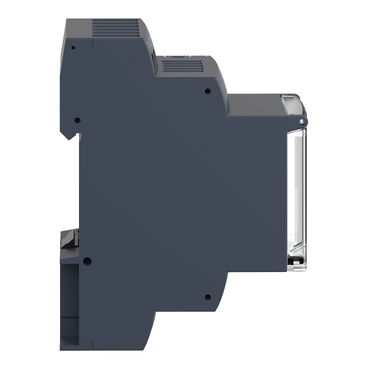

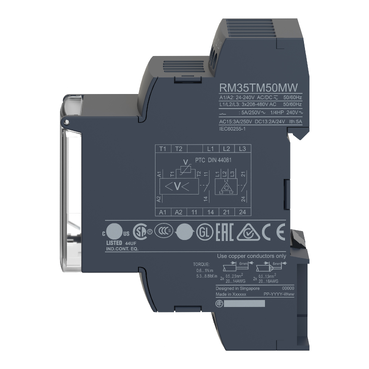

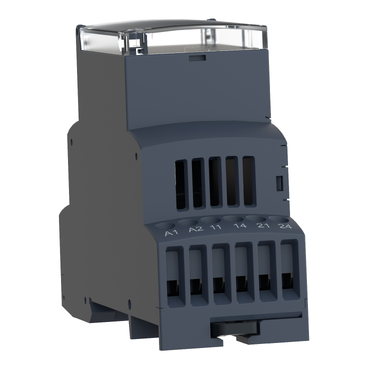

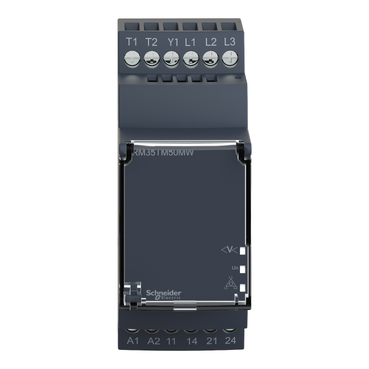

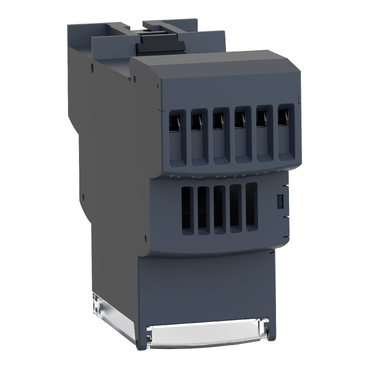

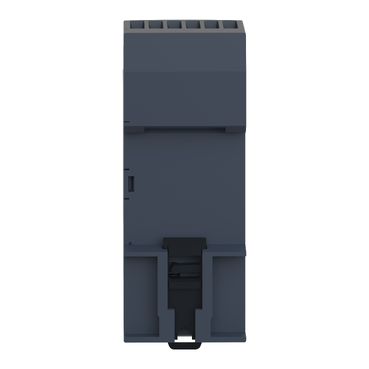

Harmony Control Relays Modular motor voltage and temperature Control Relay 5A, 2 NO, 24..240V AC/DC

Item Number: RM35TM50MW

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389119405287	-

Specifications

Design

Range of product

Harmony Control Relays

Product or component type

motor temperature control relay

Warranty

18 months

Physical

Connections - terminals

screw connectors

[in] rated current

5 A

Insulation resistance

> 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5
> 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1
> 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5
> 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1
> 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5
> 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1

Connections - terminals

screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end
screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end
screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end

Local signalling

LED (green) for power ON
LED (yellow) for phase of relay (R2)
LED (yellow) for temperature of relay (R1)

Mounting support

35 mm symmetrical DIN rail conforming to IEC 60715

Electrical durability

10000 cycles

Mechanical durability

30000000 cycles

Width

35 mm

Net weight

0.13 kg

Control type

without test button

Standards

IEC 60255-6
IEC 60034-11-2

Product certifications

GL
UL
GOST
C-Tick
CSA

Marking

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-20...50 °C

Relative humidity

95 % at 55 °C conforming to IEC 60068...2-30

Ip degree of protection

IP20 (terminals) conforming to IEC 60529
IP30 (casing) conforming to IEC 60529

Mercury free

Yes

Environmental disclosure

ENVPEP1601004EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

Out

At least in Europe

Package 1 bare product quantity

Package 2 bare product quantity

Average percentage of recycled plastic content

0 %

Weee label

Relay type

motor temperature control relay

Relay name

RM35TM

Relay monitored parameters

phase sequence
motor temperature via PTC probe
phase failure detection

Measurement range

208...480 V AC
15...3100 Ohm

Time delay type

without

Output contacts

2 NO

Nominal output current

5 A

Contacts type and composition

2 NO

[uc] control circuit voltage

24...240 V

Product specific application

for 3-phase supply

[us] rated supply voltage

24...240 V AC/DC 50/60 Hz, non self-powered

Supply voltage limits

20.4...264 V AC
20.4...264 V DC

Reset time

10000 ms output

Maximum switching voltage

250 V AC
250 V DC

Switching capacity in va

1250 VA

Minimum switching current

10 mA at 5 V DC

Maximum switching current

5 A AC
5 A DC

Power consumption in va

0...4 VA at 24...240 V AC

Maximum power consumption in w

0.5 W DC

Control circuit frequency

50...60 Hz +/- 10 %

Resistance across terminals

602 mOhm

Measurement voltage limits

176...528 V AC

Run-up delay at power-up

500 ms

Voltage range

176...528 V

Response time

> 50 ms (input Y1 (contact Y1-T1) and push-button)

[uc] control circuit voltage

<= 3.6 V of temperature control circuit (T1-T2 terminals open)

Short-circuit current

0.007 A temperature sensing circuit (T1-T2 terminals short circuited)

Maximum resistance

1500 Ohm for temperature sensor at 20 °C

Tripping threshold

3100 Ohm +/- 10 % for temperature control circuit

Reset threshold

1650 Ohm +/- 10 % for temperature control circuit

[ui] rated insulation voltage

400 V conforming to IEC 60664-1

Supply frequency

50/60 Hz +/- 10 %

Operating position

any position without derating

Tightening torque

0.6...1 N.m conforming to IEC 60947...1

Housing material

self-extinguishing plastic

Operating rate

<= 360 operations/hour full load

Utilisation category

AC-12 conforming to IEC 60947-5-1
AC-13 conforming to IEC 60947-5-1
AC-14 conforming to IEC 60947-5-1
AC-15 conforming to IEC 60947-5-1
DC-12 conforming to IEC 60947-5-1
DC-13 conforming to IEC 60947-5-1

Compatibility code

RM3

Immunity to microbreaks

20 ms at 20.4 V

Electromagnetic compatibility

emission standard for industrial environments conforming to IEC 61000-6-4
emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3
immunity for industrial environments conforming to IEC 61000-6-2

Directives

73/23/EEC - low voltage directive
89/336/EEC - electromagnetic compatibility

Vibration resistance

0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6
1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1

Shock resistance

15 gn for 11 ms conforming to IEC 60255-21-1

Pollution degree

3 conforming to IEC 60664-1

Overvoltage category

III conforming to IEC 60664-1

Dielectric test voltage

2 kV, 1 min AC 50 Hz

Non-dissipating shock wave

4 kV

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

4.300 cm

Package 1 width

7.800 cm

Package 1 length

9.500 cm

Package 1 weight

127.000 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

6.900 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

29 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

8.821162012798137

Carbon footprint of the manufacturing phase [a1 to a3]

9 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.01713040285049447

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.042505461023851075

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

20.104799999999997

Carbon footprint of the use phase [b2, b3, b4, b6]

20 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.245929828388598

Carbon footprint of the end-of-life phase [c1 to c4]

0.2 kg CO2 eq.

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Total lifecycle carbon footprint

29.231527705061076

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

End of life manual availability

ENVEOLI1601004EN

Take-back

Warranty (in months)

Show all specifications

Documents & downloads

hide show

All
CAD Files and Packs
Technical Data Catalogues
End of Life Manual
Environmental Disclosure
Installation Instruction
Technical illustration
Application Notes
Certificates (MSDS)
eTechPub
Declaration of Conformity
Declaration of Conformity (Sustainability)

Colour ()

Harmony Control Relays Modular motor voltage and temperature Control Relay 5A, 2 NO, 24..240V AC/DC

Item Number: RM35TM50MW

Colour ()

Datasheet

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

End of Life Manual

Environmental Disclosure

Installation Instruction

Technical illustration

Application Notes

Certificates (MSDS)

eTechPub

Declaration of Conformity

Declaration of Conformity (Sustainability)

Zelio Control - 3D CAD

Discover Harmony Control Relays Catalog - English

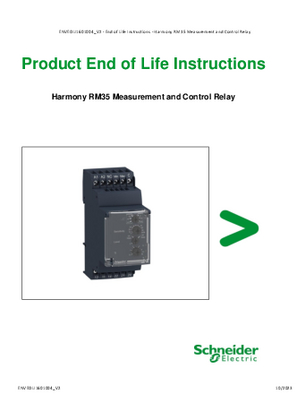

RM35... Measurement and Control Relay, Product End-of-Life Instructions

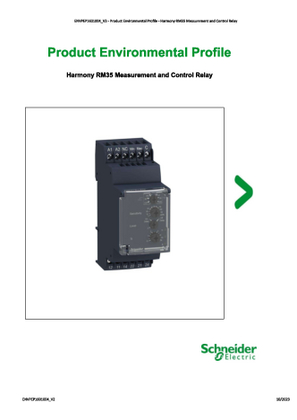

RM35... Measurement and Control Relay, Product Environmental profile

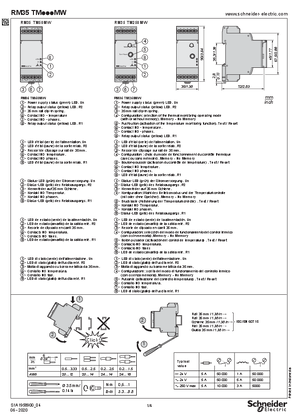

RM35TM...MW Motor control of 3-phase supplies, Instruction Sheet

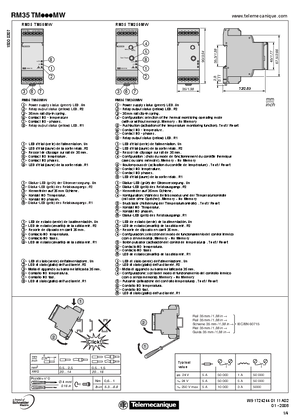

RM35 TM...Motor control of 3-phase supplies
