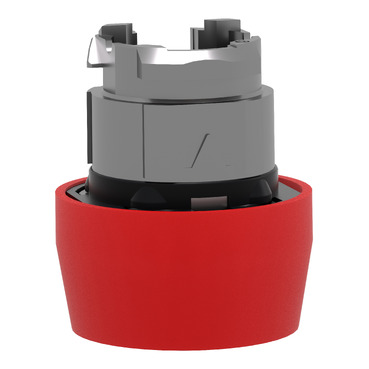

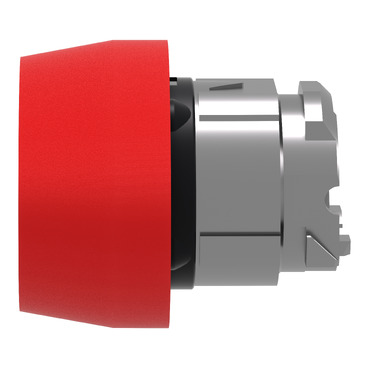

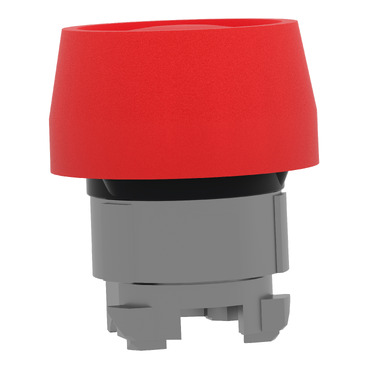

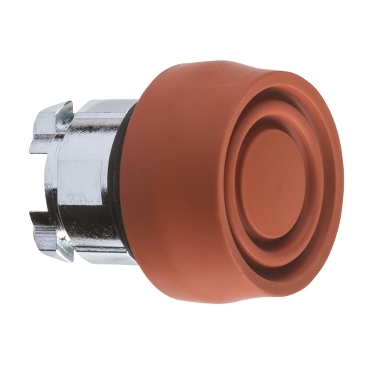

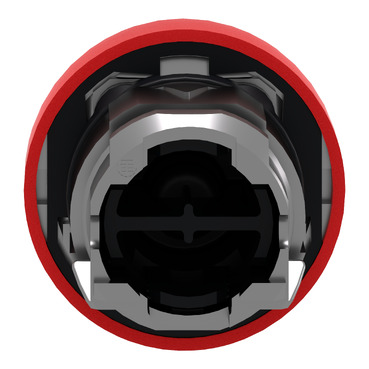

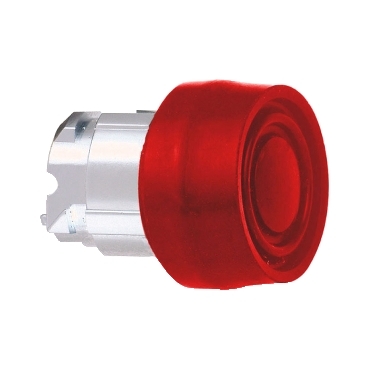

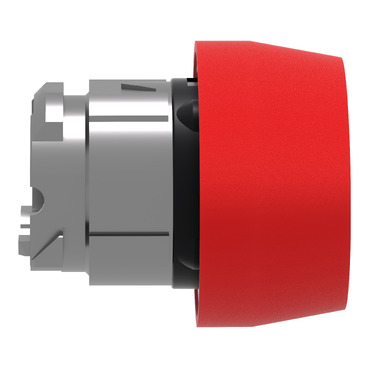

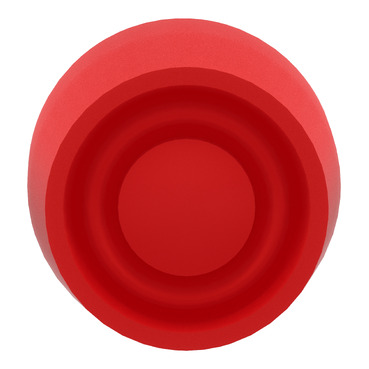

Harmony XB4 Head for non illuminated push-button red flush pushbutton Ø22mm spring return unmarked

Item Number: ZB4BP4S

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110999327	-
5	PAC	53389110999322	-

Specifications

Design

Range of product	Harmony XB4
Product or component type	head for non-illuminated push-button
Product compatibility	legend holder
Warranty	18 months

Physical

Sale per indivisible quantity	1
Net weight	0.029 kg
Mechanical durability	10000000 cycles
Marking	unmarked
Device presentation	basic element
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-40...70 °C
Ip degree of protection	IP66 conforming to IEC 60529 IP67 IP69 IP69K
Ik degree of protection	IK06 conforming to IEC 50102
Standards	IEC 60947-5-4 UL 508 CSA C22.2 No 14 IEC 60947-1 IEC 60947-5-5 IEC 60947-5-1 JIS C8201-5-1 JIS C8201-1
Product certifications	BV CSA DNV LROS (Lloyds register of shipping) UL listed
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2308035_V1-EN
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Average percentage of recycled plastic content	14 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Package 1 bare product quantity	1
Legacy weee scope	Out
Device short name	ZB4
Bezel material	chromium plated metal
Mounting diameter	22.5 mm
Head type	standard
Shape of signaling unit head	round
Type of operator	spring return
Operator profile	red flush, unmarked
Operator additional information	coloured boot
Cap/operator or lens colour	red

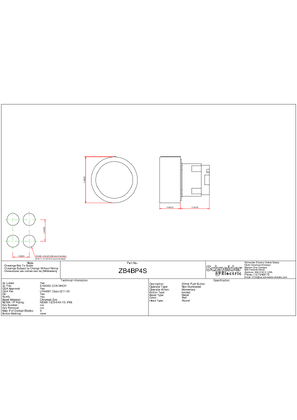

Cad overall width	30 mm
Cad overall height	30 mm
Cad overall depth	33 mm
Electrical composition code	C1 for <9 contacts using single blocks in front mounting C2 for <9 contacts using single and double blocks in front mounting C11 for <3 contacts using single blocks in front mounting C15 for <1 contacts using single blocks in front mounting
Main group	push-button
Group of product	silicone boot push
Cap/operator or lens colour	red
Customizable	no
Customizable	0
Compatibility code	ZB4
Protective treatment	TH
Overvoltage category	class I conforming to IEC 60536
Nema degree of protection	UL type 4X/13
Nema degree of protection	NEMA 13 NEMA 4X
Vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.5 cm
Package 1 width	4.6 cm
Package 1 length	5.4 cm
Package 1 weight	29.0 g
Unit type of package 2	S03
Number of units in package 2	300
Package 2 height	30.0 cm
Package 2 width	30.0 cm
Package 2 length	40.0 cm
Package 2 weight	9.112 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.3 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.2055525504
Carbon footprint of the manufacturing phase [a1 to a3]	0.2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0037923606
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0058165125
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.0366817319
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.2518431554
Average percentage of recycled plastic content	14 %
Average percentage of recycled metal content	21 %
Average percentage of recycled metal content	21 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
End of life manual availability	ENVEOLI2308035EN
Take-back	No
Warranty (in months)	18
