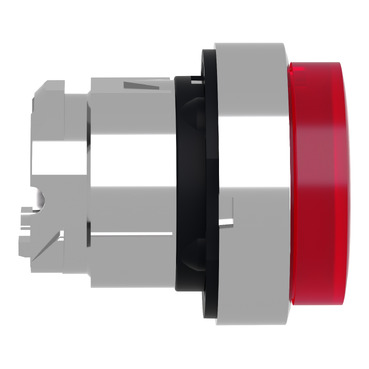

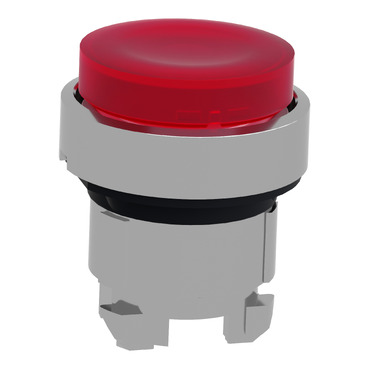

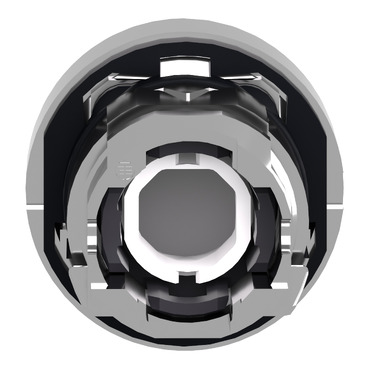

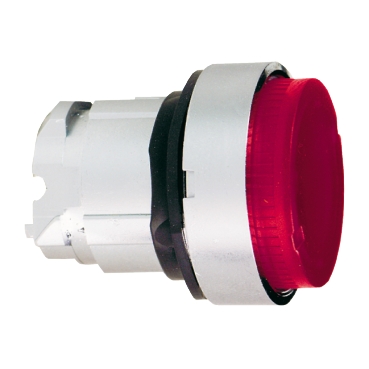

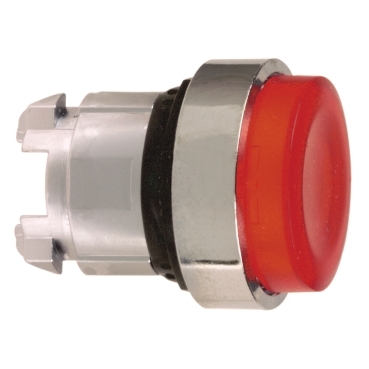

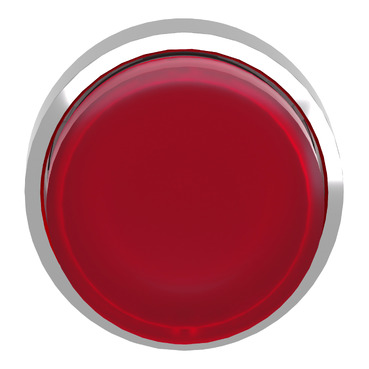

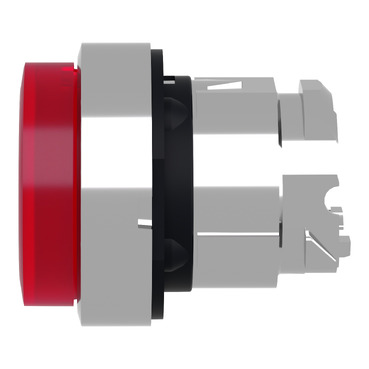

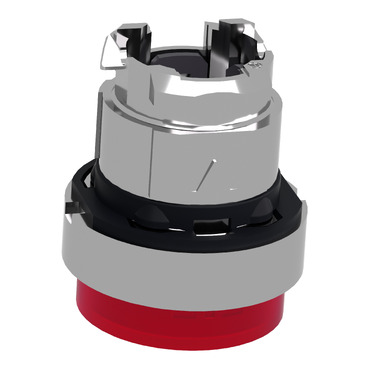

Harmony XB4, Head for illuminated push button, metal, red projecting, 22mm, universal LED, spring return, plain lens

Home ProductsIndustrialHarmonyHead for illuminated push button

Harmony XB4, Head for illuminated push button, metal, red projecting, 22mm, universal LED, spring return, plain lens

Item Number: ZB4BW143

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XB4

Product or component type

head for illuminated push-button

Product compatibility

universal LED

Warranty

18 months

Physical

Sale per indivisible quantity

1

Net weight

0.029 kg

Mechanical durability

10000000 cycles

Marking

unmarked

Device presentation

basic sub-assemblies

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP66 conforming to IEC 60529|IP69|IP69K

Ik degree of protection

IK05 conforming to IEC 62262

Standards

IEC 60947-5-5|IEC 60947-1|JIS C8201-5-1|IEC 60947-5-1|CSA C22.2 No 14|UL 508|IEC 60947-5-4|JIS C8201-1

Product certifications

CSA|LROS (Lloyds register of shipping)|BV|UL listed|DNV

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP1808008EN

Circularity profile

ENVEOLI1808008EN

Others

Important message

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Package 1 bare product quantity

1

Device short name

ZB4

Bezel material

chromium plated metal

Head type

standard

Mounting diameter

22.5 mm

Shape of signaling unit head

round

Type of operator

spring return

Operator profile

red projecting, unmarked

Operator additional information

with plain lens

Cap/operator or lens colour

red

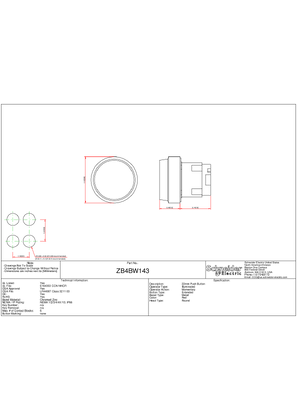

Cad overall width

29 mm

Cad overall height

29 mm

Cad overall depth

33 mm

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Electrical composition code

M1 for <6 contacts using single blocks in front mounting with integral LED|M2 for <6 contacts using single and double blocks in front mounting with integral LED|M6 for <2 contacts using single blocks in front mounting with integral LED and transformer|M10 for <2 contacts using single blocks in front mounting with integral LED

Main group

illum push-button

Group of product

proj push integral LED

Cap/operator or lens colour

red

Customizable

no

Customizable

1

Gcr bridge

ZB4BWCUST01

Compatibility code

ZB4

Protective treatment

TH

Overvoltage category

class I conforming to IEC 60536

Nema degree of protection

NEMA 13|NEMA 4X

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27|50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.4 cm

Package 1 width

4.4 cm

Package 1 length

5.4 cm

Package 1 weight

29 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

3.4 cm

Package 2 width

4.4 cm

Package 2 length

26.5 cm

Package 2 weight

147 g

Unit type of package 3

S03

Number of units in package 3

300

Package 3 height

30 cm

Package 3 width

30 cm

Package 3 length

40 cm

Package 3 weight

9.533 kg

Green premium status for reporting

Green Premium product

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0.2754706043
