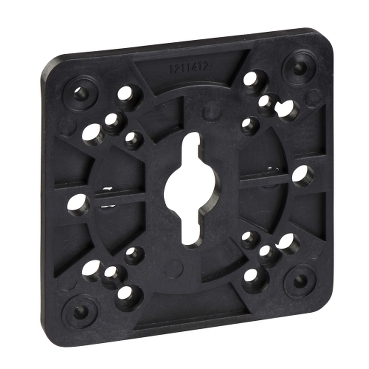

Harmony K Adaptor plate 90 x 90 mm for door mounting of handle set of 5

Home ProductsIndustrialHarmonyAdaptor plate 90 x 90 mm for door mounting of handle

Harmony K Adaptor plate 90 x 90 mm for door mounting of handle set of 5

Item Number: KZ106

TeSys Vario door mounting accessory, for Vario switch-disconnectors. Plate for door mounting V3 and V4 switch bodies with handles using 90x90mm front plates. Sold in lots of 5 units.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

VARIO

Product compatibility

  • V3
  • V4

Warranty

18 months

Physical

Quantity per set

set of 5

Net weight

0.075 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2211006EN

Eu rohs directive

Compliant

China rohs regulation

X

Eu rohs directive

Compliant

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Warranty duration(in months) bmecat

18

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

At least in Europe

Average percentage of recycled plastic content

0 %

Accessory / separate part designation

adaptor plate

Accessory / separate part type

plate

Accessory / separate part category

adaptation accessories

Accessory / separate part destination

switch disconnector with front plate 90 x 90 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5 cm

Package 1 width

10.5 cm

Package 1 length

10 cm

Package 1 weight

57 g

Unit type of package 2

BAG

Number of units in package 2

5

Package 2 height

5 cm

Package 2 width

10.5 cm

Package 2 length

10 cm

Package 2 weight

289 g

Unit type of package 3

S01

Number of units in package 3

25

Package 3 height

15 cm

Package 3 width

15 cm

Package 3 length

40 cm

Package 3 weight

1.635 kg

Total lifecycle carbon footprint

0.7 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.4737625952524065

Carbon footprint of the manufacturing phase [a1 to a3]

0.5 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.014615007579451151

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.00657581023242548

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.19888832270371523

Carbon footprint of the end-of-life phase [c1 to c4]

0.2 kg CO2 eq.

Take-back

No

Total lifecycle carbon footprint

0.6938417357679983

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

China rohs label

1

End of life manual availability

N/A

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
