ClimaSys Standard filter G2 for outlet grille or fan cut-out 125x125mm ext dim 170x150mm

Item Number: NSYCAF125

1 PCE 0

Set of 5 G2 filters for ClimaSys CV and Prisma P enclosures The product is to be mounted between enclosure and outlet grille The cut width is 125mm and external width is 150mm The cut height is 125mm and external height is 170mm The filter is 8mm thick Cut-out dimensions is 125 x 125mm

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480151613	-

Specifications

Design

Range	ClimaSys
Product or component type	filter
Warranty	18 months

Physical

Range compatibility	ClimaSys ClimaSys CV Prisma Prisma P
Quantity per set	set of 5
Width	cut-out: 125 mm external: 150 mm
Height	cut-out: 125 mm external: 170 mm
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2012014EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

If one of the deliverables is not relevant please give the reason	Accessory
Life cycle assessment data	No
Package 3 bare product quantity	50
Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	5
Package 4 bare product quantity	3200
Warranty duration(in months) bmecat	18
Weee label	No
Average percentage of recycled plastic content	0 %
	At least in Europe
Product name	ClimaSys CA
Accessory / separate part category	thermal management accessory
Mounting location	between enclosure and outlet grille
Accessory / separate part destination	outlet grille 170 x 150 mm
Cut-out dimensions	125 x 125 mm cut-out
Thickness	8 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	0.600 cm
Package 1 width	12.500 cm
Package 1 length	12.500 cm
Package 1 weight	3.000 g
Unit type of package 2	BB1
Number of units in package 2	5
Package 2 height	3.000 cm
Package 2 width	12.500 cm
Package 2 length	12.500 cm
Package 2 weight	15.000 g
Unit type of package 3	CAR
Number of units in package 3	50
Package 3 height	20.000 cm
Package 3 width	20.000 cm
Package 3 length	30.000 cm
Package 3 weight	150.000 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.016919072350009282
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.005945440597879783
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0008847006669528737
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.005498277634388206
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Silicone-free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.029247491249230144
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	61d9d3f3-5a49-48f8-8056-1a5ad0ad4c76
Pvc free	Yes
Silicone-free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Technical Data Catalogues
Environmental Disclosure
Installation Instruction
Operating Manuals
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

ClimaSys Standard filter G2 for outlet grille or fan cut-out 125x125mm ext dim 170x150mm

Item Number: NSYCAF125

Colour ()

Datasheet

Barcode

Specifications

Documents & downloads

All

Technical Data Catalogues

Environmental Disclosure

Installation Instruction

Operating Manuals

Declaration of Conformity

Declaration of Conformity (Sustainability)

Catalogue PrismaSeT G

Catalog PrismaSeT P

Catalogue PrismaSeT P Active

Catalog PrismaSeT G Active

PEP-ClimaSys CA - Ventilation grills

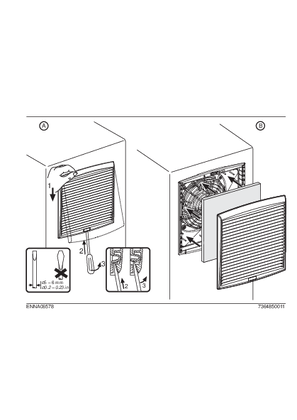

Instruction sheet Standard Filter NSYCAF
